- Description: Control

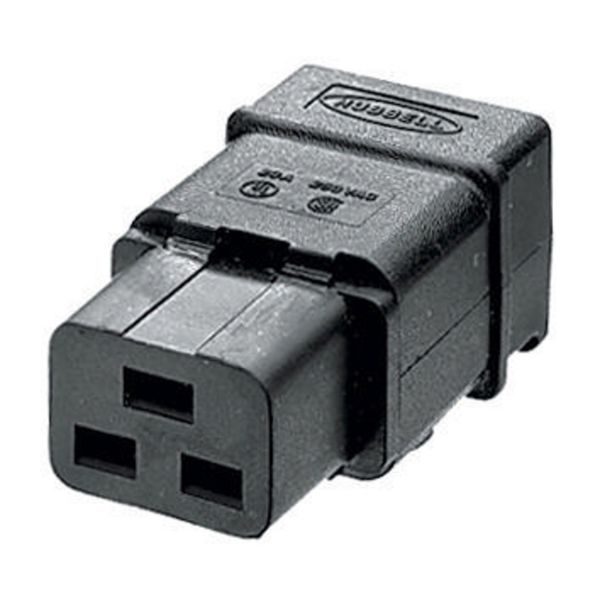

- Specifications Description: Straight Blade Devices, IEC 320 Devices, Female Connector, 16A 250V, International Rated, Pressure Screw Terminal, Black, Single Pack
- UPC Number: 7.83586E+11
- Weight in LBs: 0.2
- Amperage: 20A/16A
- Flammability: UL 94 HB or better.
- Operating Temperatures: Maximum continuous 75C, minimum -40C (w/o impact).
- Voltage: 250V
- Current Interrupting: Certified for current interrupting at full rated current.
- Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
- Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Poles and Wires: 2-pole + earth.
- Terminal Accommodation: #16-#12 AWG copper stranded or solid conductor only.
- Terminal Screw Material: #8-32 Steel (copper or nickel finish)
- Product Identification: Ratings are a permanent part of the device.
- Ground Screw Material: #8-32 Steel, (green finish)
- Housing Material: Nylon-Black
- Rating: 16A 250V AC for European service; 20A 250V AC for North American service.
- Standard: IEC 320
- IEC Product: Connector
- Wiring Method: Terminal Screw
- Cord Dia.: .275"-.475" (8-12)
- Certification: UL Listed 20A 250V AC-File No. E1706; CSA certified 20A 250V AC-File No. 17337; UL classified to IEC 320, 16A 250V AC-File No. E111246; TUV and VDE certified at 16A 250V AC-File No. 12469 1550 1002.
- IP Suitability: IP20
- Retainer Material: Nylon-Black
- Cord Clamp Material: Nylon-Black
- Contact Blades Material: .040" (1.0) Brass
- Base Material: Nylon
- Power Contacts Material: .032" (.81) Brass
- Dielectric Voltage: Withstands 2,000V minimum.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on H320C . Santa Clara Systems carries 10,224 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
