II0272

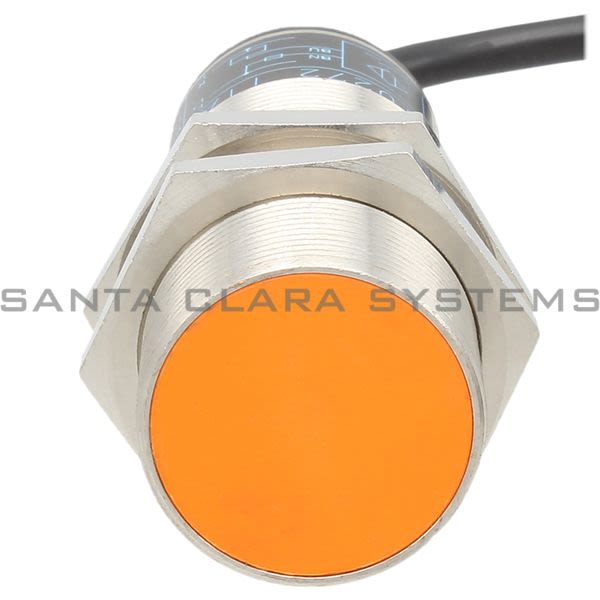

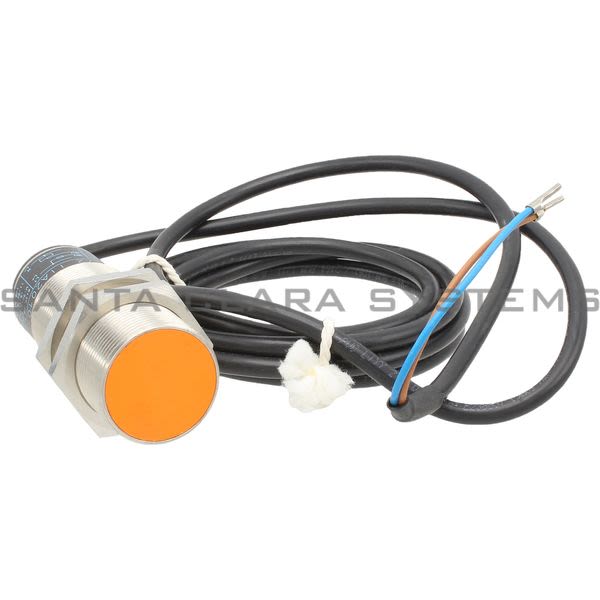

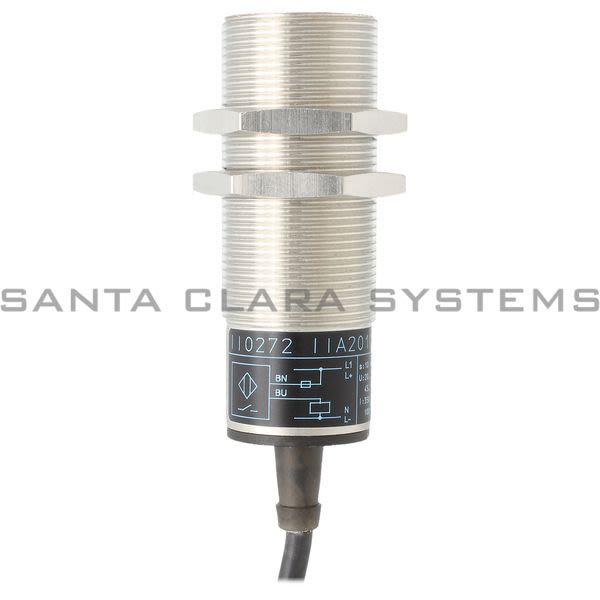

Efector - Inductive Sensor | IIA2010-Aboa/Rt

Current response time:

15 Minutes 2 Seconds

Description: Inductive Sensor | IIA2010-Aboa/Rt
Output Function: Normally Open
Mounting: Flush Mountable
Material: Brass White Bronze Coated; Pbt
Operating Voltage [V]: 20...250 Ac/Dc
Protection Class: Ii
Reverse Polarity Protection: No
Max. Voltage Drop Switching Output Dc [V]: 6
Max. Voltage Drop Switching Output Ac [V]: 6.5
Minimum Load Current [Ma]: 5
Max. Leakage Current [Ma]: 2.5 (250 V Ac) / 1.3 (110 V Ac) / 0.8 (24 V Dc)
Permanent Current Rating Of Switching Output Ac [Ma]: 250; (350 (...50 C))
Permanent Current Rating Of Switching Output Dc [Ma]: 100
Short-Time Current Rating Of Switching Output [Ma]: 2200; (20 Ms / 0,5 Hz)
Switching Frequency Ac [Hz]: 25
Switching Frequency Dc [Hz]: 50
Short-Circuit Proof: No
Overload Protection: No

Sensing Range [Mm]: 10
Real Sensing Range Sr [Mm]: 10 10 %
Operating Distance [Mm]: 0...8.1
Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.4 / Aluminum: 0.3 / Copper: 0.2
Hysteresis [% Of Sr]: 1...15
Switch-Point Drift [% Of Sr]: -10...10
Ambient Temperature [C]: -25...80
Protection: Ip 67
Emc: En 60947-5-2 En 55011 Class B
Ul Approval: Ta 0...40 C Enclosure Type Type 1 Voltage Supply Hazardous Voltage File Number Ul E174191
Housing: Threaded Type
Dimensions [Mm]: M30 X 1.5 / L = 81
Thread Designation: M30 X 1.5
Display: Switching Status 1 X Led, Red
Required Protection: Miniature Fuse To Iec60127-2 Sheet 1; ? 2 A; Fast Acting
Accessories (Supplied): Lock Nuts: 2

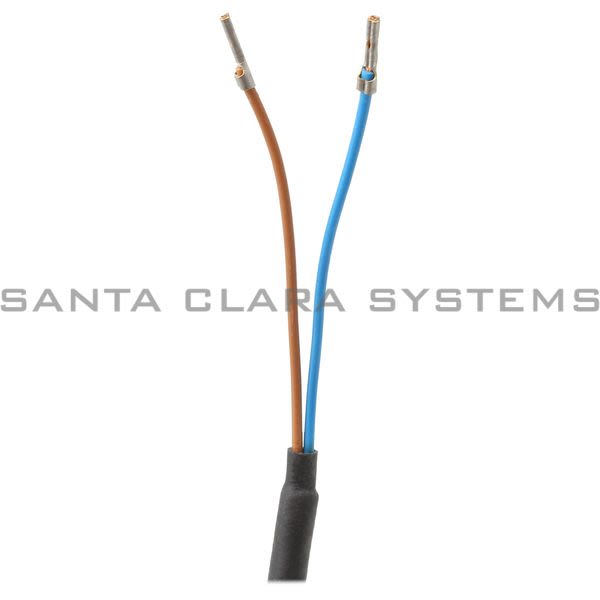

Connection: Cable: 2 M, Pvc; 2 X 0.5 Mm
Alternate Manufacturer Name: IFM
