II0297

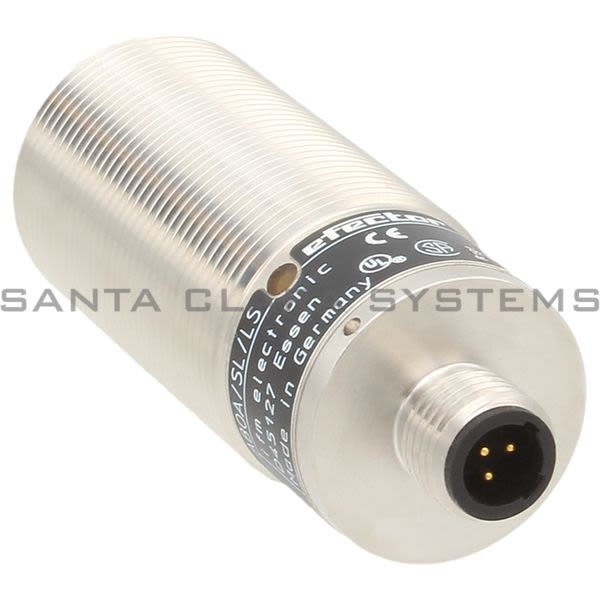

Efector - Inductive Sensor | IIA2010-ABOA/SL/LS-100AK RT

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Inductive Sensor | IIA2010-ABOA/SL/LS-100AK RT
Output Function: Normally Open
Mounting: Flush Mountable
Material: Brass Nickel-Plated; Pc
Operating Voltage [V]: 20...250 Ac/Dc
Protection Class: I
Reverse Polarity Protection: No
Max. Voltage Drop Switching Output Dc [V]: 6
Max. Voltage Drop Switching Output Ac [V]: 6.5
Minimum Load Current [Ma]: 5
Max. Leakage Current [Ma]: 2.5 (250 V Ac) / 1.3 (110 V Ac) / 0.8 (24 V Dc)
Permanent Current Rating Of Switching Output Ac [Ma]: 250; (350 (...50 C))
Permanent Current Rating Of Switching Output Dc [Ma]: 100
Short-Time Current Rating Of Switching Output [Ma]: 2200; (20 Ms / 0,5 Hz)
Switching Frequency Ac [Hz]: 25
Switching Frequency Dc [Hz]: 25
Short-Circuit Proof: No
Overload Protection: No

Sensing Range [Mm]: 10
Real Sensing Range Sr [Mm]: 10 10 %
Operating Distance [Mm]: 0...8.1
Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.5 / Aluminum: 0.4 / Copper: 0.3
Hysteresis [% Of Sr]: 3...15
Switch-Point Drift [% Of Sr]: -10...10
Ambient Temperature [C]: -25...80
Protection: Ip 67
Emc: En 60947-5-2 En 55011 Class B
Ul Approval: Ta 0...40 C Enclosure Type Type 1 Voltage Supply Hazardous Voltage File Number Ul E174191
Housing: Threaded Type
Dimensions [Mm]: M30 X 1.5
Thread Designation: M30 X 1.5
Display: Switching Status 1 X Led, Red
Required Protection: Miniature Fuse To Iec60127-2 Sheet 1; ? 2 A; Fast Acting
Accessories (Supplied): Lock Nuts: 2
Alternate Manufacturer Name: IFM

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on II0297 . Santa Clara Systems carries 2,264 items from Efector.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
