14102A6513

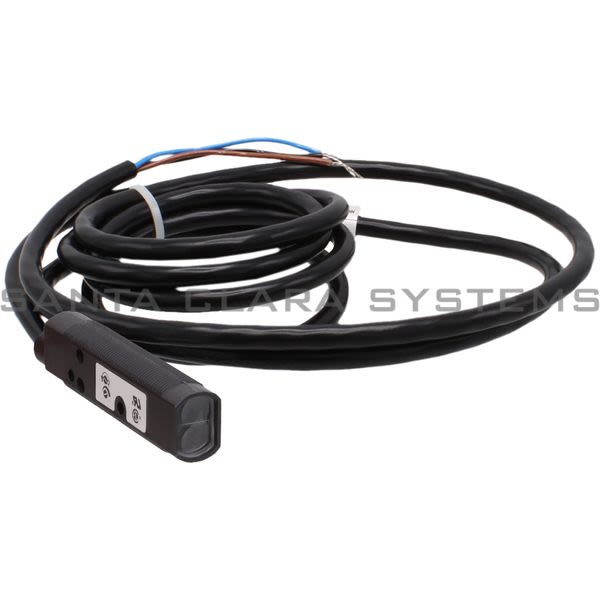

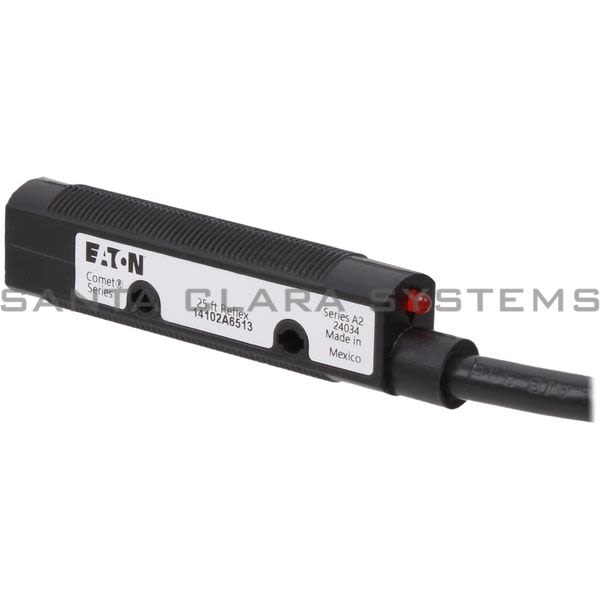

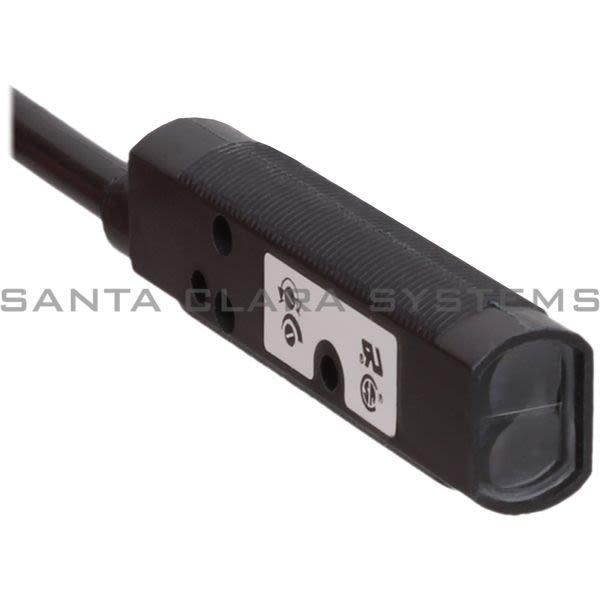

Cutler-Hammer - Photoelectric Reflex Sensor | Comet

Current response time:

12 Minutes 30 Seconds

Description: Photoelectric Reflex Sensor | Comet
Input Voltage: 20-264 Vac 50/60 Hz, 15-30 Vdc (NPN)
Contact Configuration: AC: L1 switched, DC: NPN open collector
Operating Temperature: -40 to 158F (-40 to 70C)
Cord Length: 79.2 FT
Maximum Ac Current: 300 mA
Maximum Dc Current: 300 mA
Cable Type: PVC
Enclosure Material: Polyurethane Foam (RIM)
Type: Photoelectric Sensor
Sensor Type: Retroreflective
Contact Rating: 300 mA AC/DC at 20-264 Vac/15-30 Vdc

Environmental Rating: NEMA 1, 3, 4, 4X, 6, 12, 13, IP69k
Protection: Latching S/C
Led Indicators: Output ON
Product Length/Depth: 2.2 IN
Product Height: .71 IN
Product Width: .47 IN
Product Weight: .7 LB
Certifications: UL Recognized
AC current - max: 300 mA
DC current - max: 300 mA
LED indicator: Output ON

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 14102A6513 . Santa Clara Systems carries 16,181 items from Cutler-Hammer.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
