14101R6517

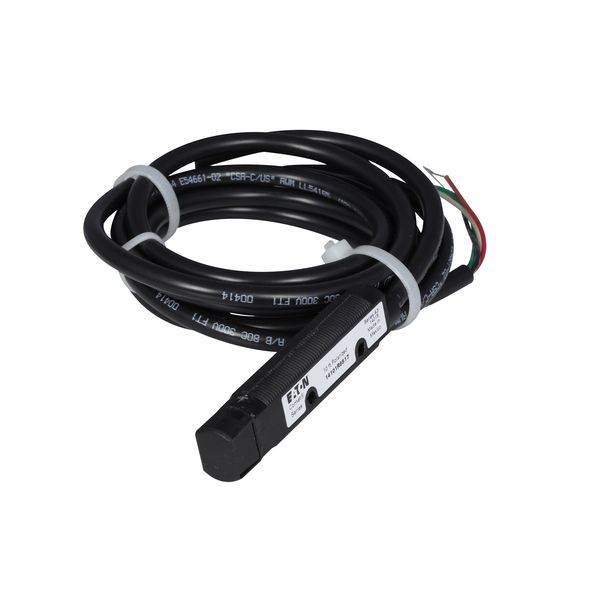

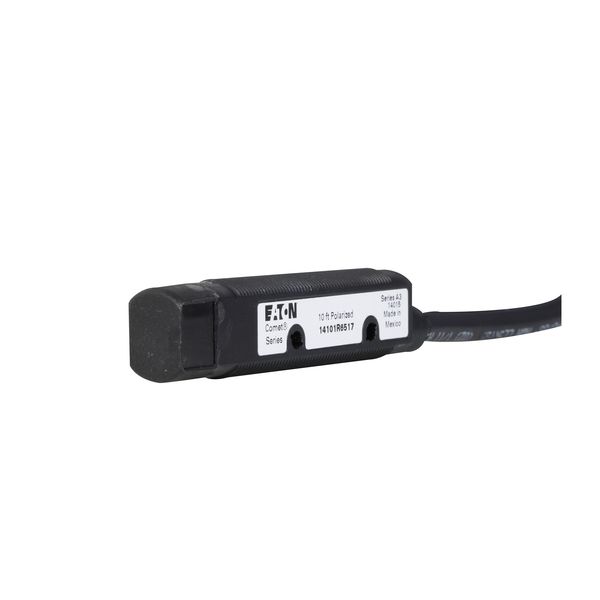

Cutler-Hammer - Photoelectric Sensor

Current response time:

By 5AM PT on Friday

Emergency?

Description: Photoelectric Sensor
Input Voltage: 10-30 Vdc
Contact Configuration: NPN and PNP open collector
Operating Temperature: -40 to 158F (-40 to 70C)
Cord Length: 79.2 FT
Maximum Dc Current: 100 mA PNP, 250 mA NPN
Cable Type: PVC
Enclosure Material: Polyurethane Foam (RIM)
Type: Photoelectric Sensor
Sensor Type: Polarized Retroreflective
Contact Rating: 100 mA PNP, 250 mA NPN at 10-30 Vdc

Environmental Rating: NEMA 1, 3, 4, 4X, 6, 12, 13, IP69k
Protection: Auto reset S/C
Led Indicators: Output ON
Product Length/Depth: 3 IN
Product Height: .71 IN
Product Width: .47 IN
Product Weight: .373 LB
Certifications: cUL Recognized
DC current - max: 100 mA PNP, 250 mA NPN
LED indicator: Output ON

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 14101R6517 . Santa Clara Systems carries 16,181 items from Cutler-Hammer.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
