14101A6513

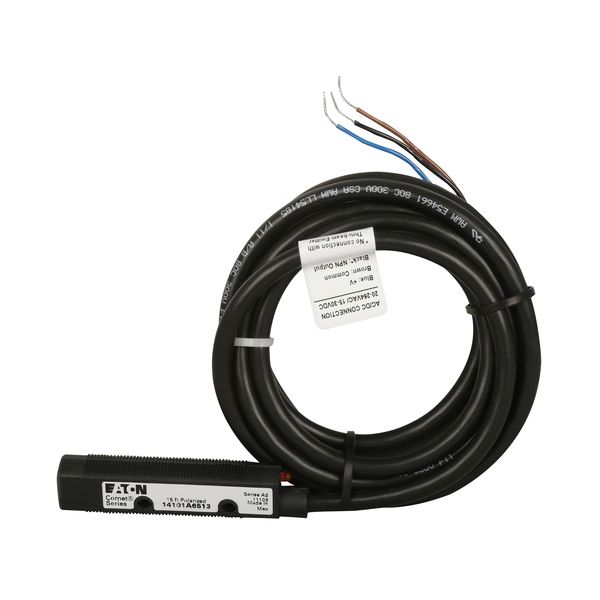

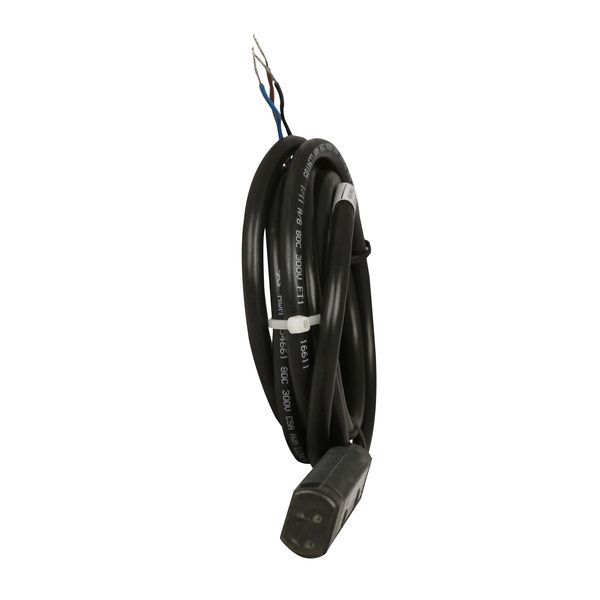

Cutler-Hammer - Photoelectric Polarized

Current response time:

8 Minutes 4 Seconds

Description: Photoelectric Polarized
Input Voltage: 20-264 Vac/15-30 Vdc
Contact Configuration: AC: L1 Switched, DC: NPN Open Collector
Operating Mode: Polarized Retroreflective
Operating Temperature: -40 to 158F (-40 to 70C)
Switch Type: Photoelectric
Cord Length: 79.2 FT
Maximum Ac Current: 300 mA
Maximum Dc Current: 300 mA
Connection: 6.6 Ft. ( 2m ) Cable
Cable Type: PVC
Sensor Type: Polarized Retroreflective
Contact Rating: 300 mA AC/DC at 20-264Vac/15-30Vdc

Environmental Rating: NEMA 1,3,4,4X,6,6P,12,13, IP68, IP69K
Protection: Latching short circuit
Diameter: .71 IN
Led Indicators: Red output status
Product Length/Depth: .47 IN
Product Height: 2.64 IN
Product Width: .71 IN
Product Weight: .2875 LB
Compliances: CE Marked
Certifications: cUL Recognized
AC current - max: 300 mA
DC current - max: 300 mA
LED indicator: Red output status

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 14101A6513 . Santa Clara Systems carries 16,181 items from Cutler-Hammer.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
