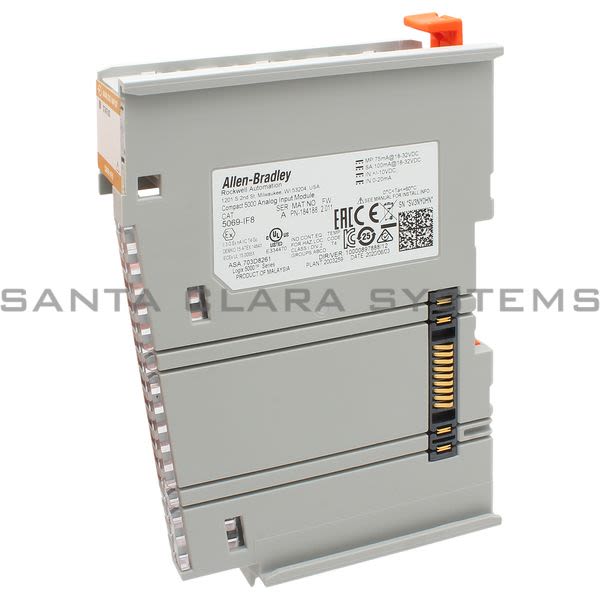

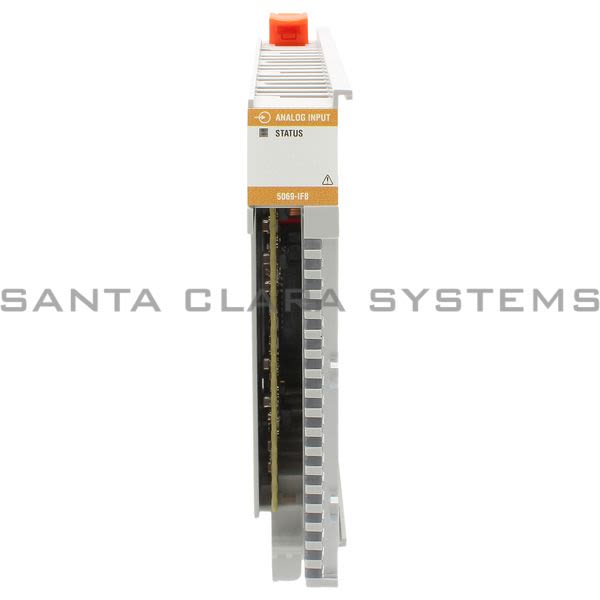

5069-IF8

Allen Bradley - Input Module

Current response time:

By 5AM PT on Monday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Input Module
Product Type: Analog 8-channel Current/Voltage Input Module
Mounting: DIN Rail | Compatible Zinc-Plated Chromate-Passivated Steel DIN Rail.
Enclosure Type Rating: None (Open-Style)
Product Series: 5069 CompactLogix/Compact GuardLogix System
MOD Power: 75 mA @ 18?32V DC
MOD Power Passthrough, Max: 9.55 A @ 18?32V DC
Power Dissipation, Max: Voltage mode: 2.1 W | Current mode: 2.4 W
Thermal Dissipation, Max: Voltage mode: 7.2 BTU/hr | Current mode: 8.2 BTU/hr
Module Keying: Electronic Keying via Programming Software

Ethernet Connections: 175 g (0.39 lb)
Dimensions (HxWxD), Approx: 144.57 x 22 x 105.42 mm (5.69 x 0.87 x 4.15 in.)
Temperature, Nonoperating: -40?+85 C (-40?+185 F)
Temperature, Operating: 0?60 C (32?140 F)
Temperature, Surrounding Air, Max: 60 C (140 F)
Inputs: 8 Differential
Noise Rejection Ratio, Common Mode: 130 dB @ 50/60 Hz
Noise Rejection Ratio, Normal Mode: 65 dB @ 50/60 Hz, Notch Filter Dependent
SA Power: 100 mA @ 18?32V DC
SA Power Passthrough, Max: 9.95 A @ 18?32V DC | Do not exceed 10 A MOD or SA Power (Passthrough) current draw

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 5069-IF8 . Santa Clara Systems carries 54,584 items from Allen Bradley.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
