5069-IB16F

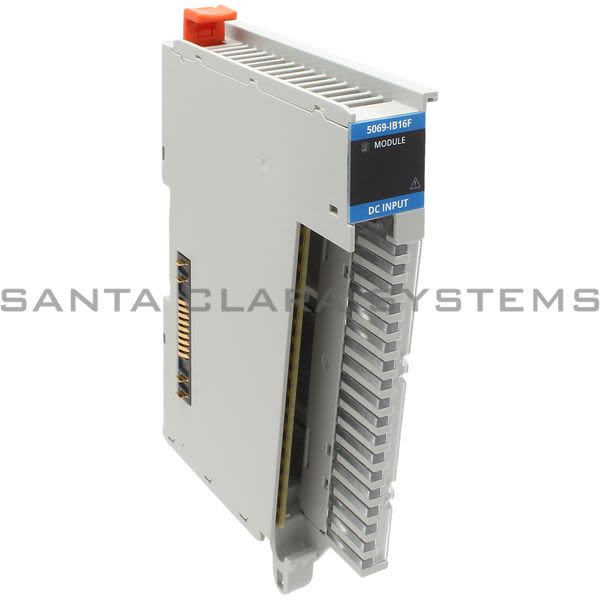

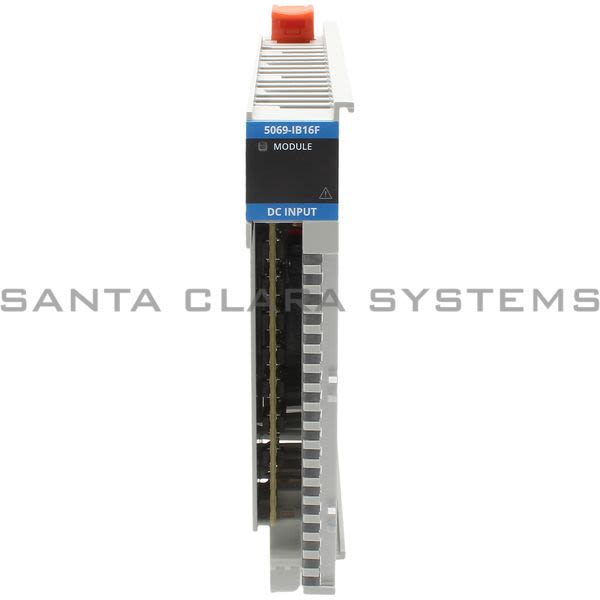

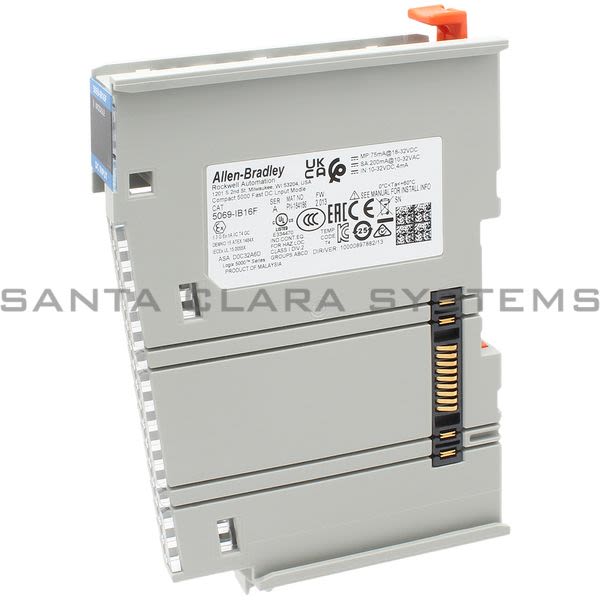

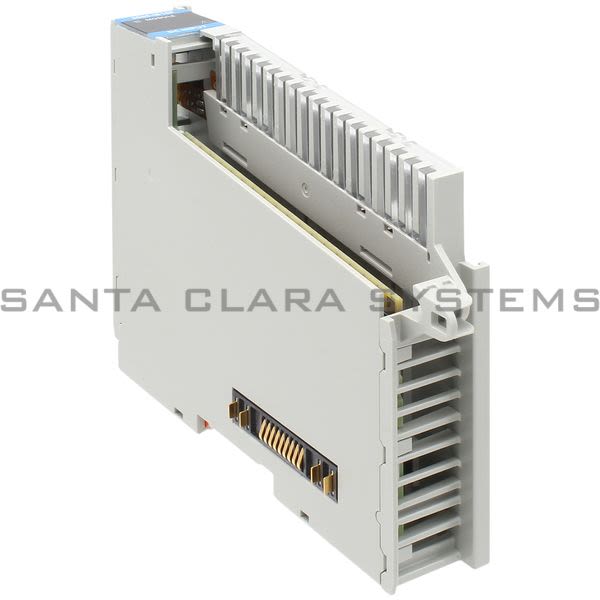

Allen Bradley - Input Module

Current response time:

6 Minutes 47 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Input Module
Enclosure Type: None (Open-Style)
Product Type: Digital 16-point Sinking Input Modules
Mounting: DIN Rail ( Compatible Zinc-Plated Chromate-Passivated Steel DIN Rail. )
Dimensions (HxWxD), Approx: 144.57 x 22 x 105.42 mm (5.69 x 0.87 x 4.15 in.)
Indicators: 1 Green/Red Module Status Indicator | 16 Yellow/Red I/O Status Indicators
Inputs: 16 Channels (1 Group of 16), Sinking
Input Ratings: 4...7.4 mA Per Channel @ 10...32V DC
MOD Power: 75 mA @ 18...32V DC
MOD Power Passthrough, Max: 9.55 A @ 18...32V DC
Module Keying: Electronic Keying via Programming Software
Power Dissipation, Max: 3.9 W
Product Series: 5069 CompactLogix/Compact GuardLogix System
SA Power: 200 mA @ 10...32V DC
SA Power Passthrough, Max: 9.95 A @ 10...32V DC

Temperature, Nonoperating: -40..+85 C (-40..+185 F)
Temperature, Surrounding Air, Max: 60 C (140 F)
Temperature, Operating: 0..60 C (32..140 F)
Thermal Dissipation, Max: 13.3 BTU/hr
Voltage Category: 12/24V DC Sink
Weight, Approx: 175 g (0.39 lb)
Pulse and Period Measurements: 2 ?s
Counter Frequency: 0 - fmax = 30 kHz (inv Period 33.3 ?s)
Timestamp of Inputs: 10 ?s Accuracy 1 ns Resolution
Pulse Latching: Supported
On-State Voltage (Min, Nom, Max): 10V DC, 24V DC, 32V DC
On-State Current (Min, Nom, Max): 4 mA @ 10V, 6 mA @ 24V DC, 7.4 mA @ 32V DC
Off-State Voltage, Max: 5V DC
Off-State Current, Max: 1.5 mA
Inrush Current, Max: < 250 mA Peak (Decaying to, 37% in 22 ms, Without Activation)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 5069-IB16F . Santa Clara Systems carries 54,610 items from Allen Bradley.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
