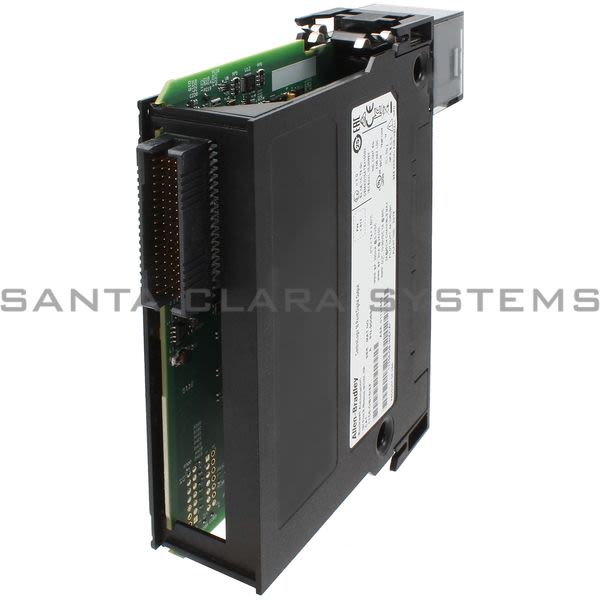

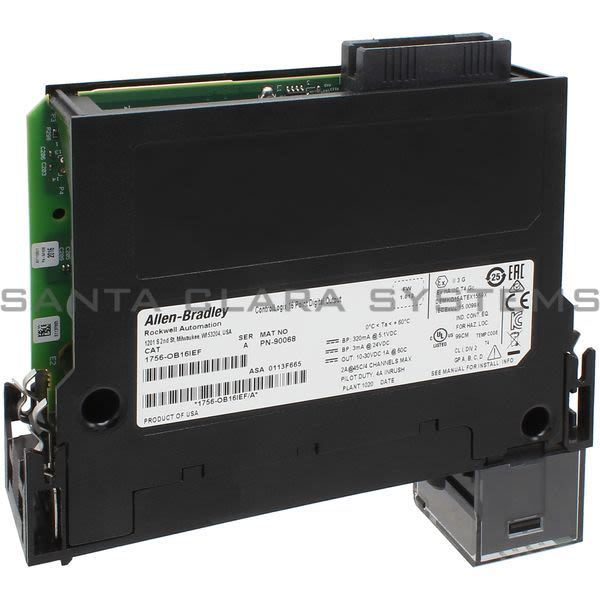

- Description: Output Module
- Enclosure type: None (open-style)
- Product Type: DC (10...30V) Electronically Protected, Sinking, or Sourcing, Isolated, Fast Output Module
- Product Series: 1756 ControlLogix I/O Modules
- No. of Outputs: 16 Individually Isolated
- Voltage category: 12/24V DC sink/source
- Operating voltage range: 10...30V DC
- Current draw @ 5.1V: 320 mA
- Current draw @ 24V: 3 mA
- Total backplane power: 1.7 W
- Power dissipation: 4.9 W max (16 channels @ 1 A or 4 channels @ 2 A)
- Thermal dissipation: 16.71 BTU/hr
- Off-state leakage current per point, max: < 0.1 mA per point
- Surge current per point: 4 A for 10 ms per point, repeatable every 2 s
- Load current, min: 1 mA per point
- Isolation voltage: 250V (continuous)
- Reverse polarity protection: No
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-OB16IEF . Santa Clara Systems carries 54,520 items from Allen Bradley.
