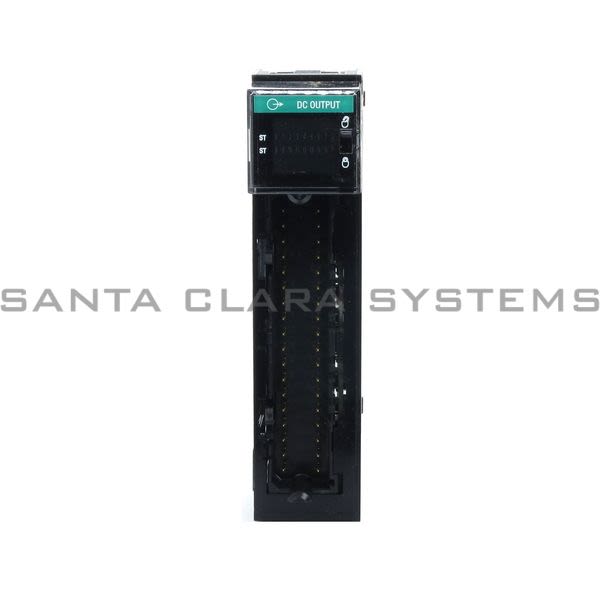

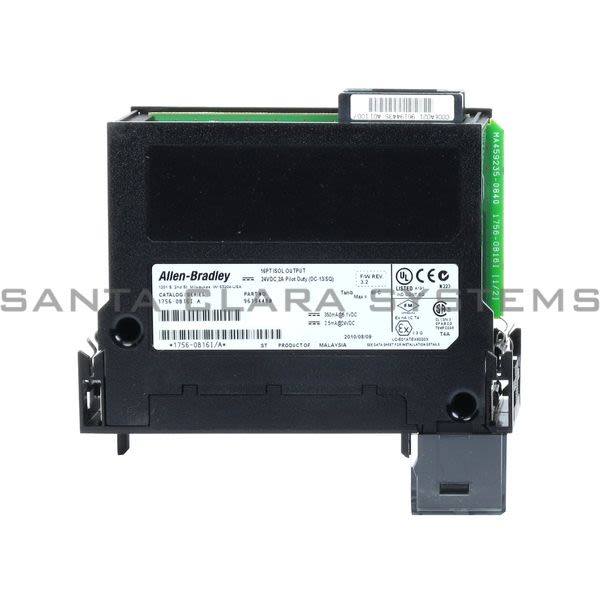

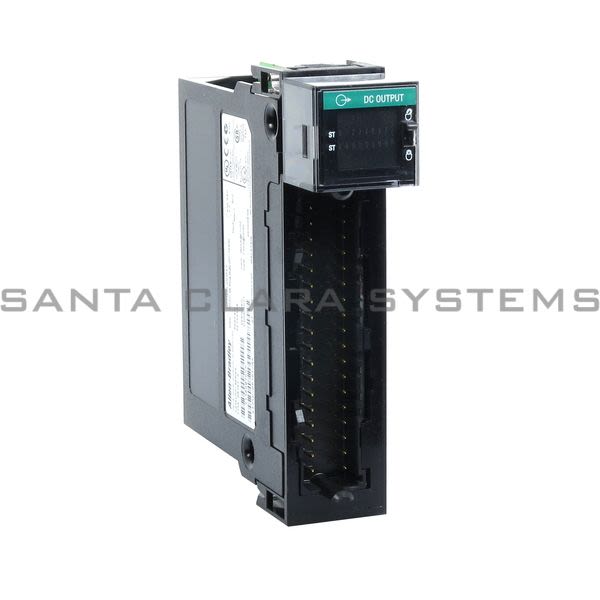

- Description: Output Module | ControlLogix
- Enclosure Type: None (open-style)
- Product Type: 24V DC Isolated Output Module
- Product Series: 1756 ControlLogix I/O Modules
- No. of Outputs: 16 Individually Isolated
- Voltage Category: 12/24V DC Sink/Source
- Operating Voltage Range: 10...30V DC
- Current Draw @ 5.1V: 350 mA
- Current Draw @ 24V: 2.5 mA
- Total Backplane Power: 1.8 W
- Thermal Dissipation: 12.28 BTU/hr
- Off-State Leakage Current per point, max: 0.5 mA per point
- On-State Voltage drop, max: 1.2V DC @ 2 A
- Surge Current per point: 4 A for 10 ms per point, repeatable every 2 s
- Load Current, min: 1 mA per point
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-OB16I . Santa Clara Systems carries 54,520 items from Allen Bradley.
