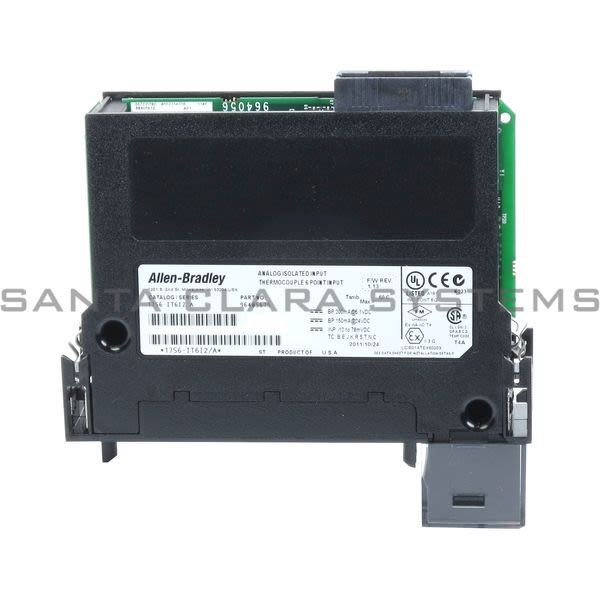

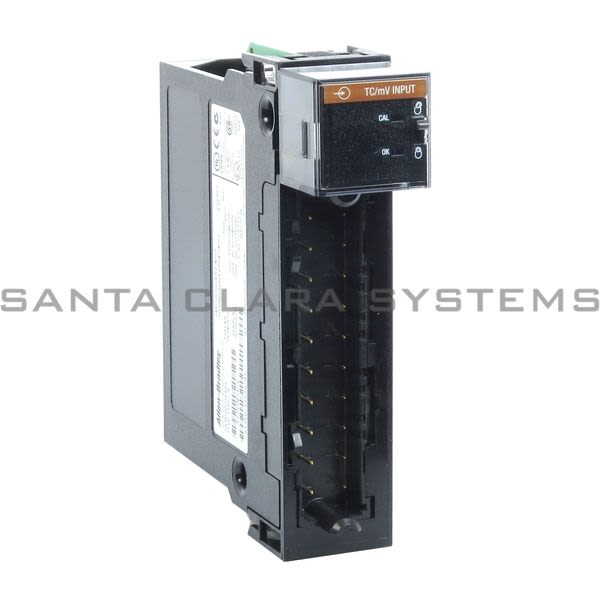

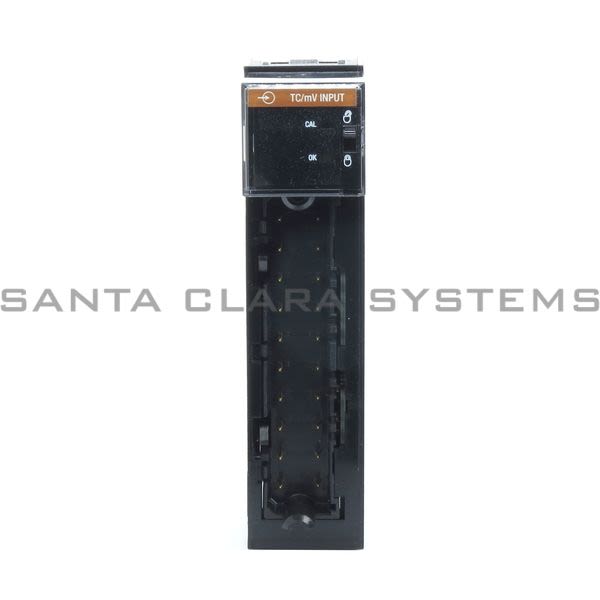

- Description: Enhanced Isolated Thermocouple Module
- Resolution: 16 bits
- Product Type: Enhanced Thermocouple Analog Input Module
- Product Series: 1756 ControlLogix I/O Modules
- Inputs: Six Individually Isolated Thermocouple | 2 CJC
- Input range: -12...78 mV | -12...30 mV
- Thermocouples: B, E, J, K, R, S, T, N, C, D, L (TXK/XK)
- Thermocouple linearization: ITS-90
- Current draw @ 5.1V: 200 mA
- Current draw @ 24V: 150 mA
- Total backplane power: 4.6 W
- Power dissipation, max: 4.6 W
- Thermal dissipation: 15.7 BTU/hr
- Open circuit detection time: Positive full scale reading within 2 s
- Overvoltage protection, max: 120V AC/DC
- Normal mode noise rejection: 60 dB at 60 Hz (Notch filter dependent)
- Channel bandwidth: 15 Hz (Notch filter dependent)
- Module error: 0.15% of range
- Module conversion method: Sigma-Delta
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-IT6I2 . Santa Clara Systems carries 54,961 items from Allen Bradley.
