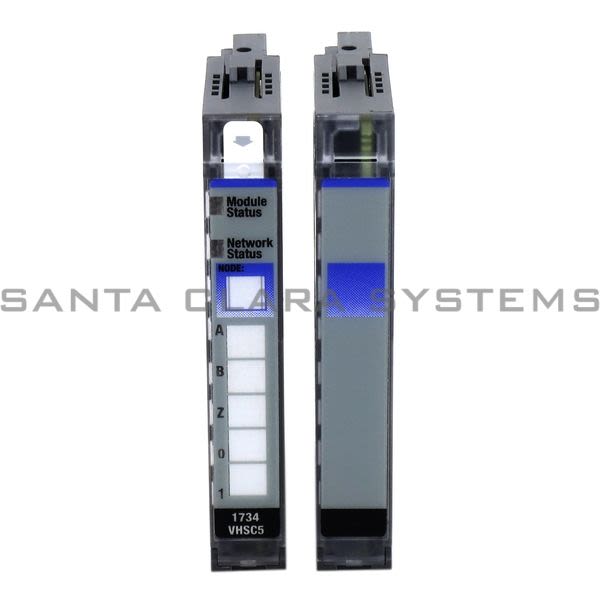

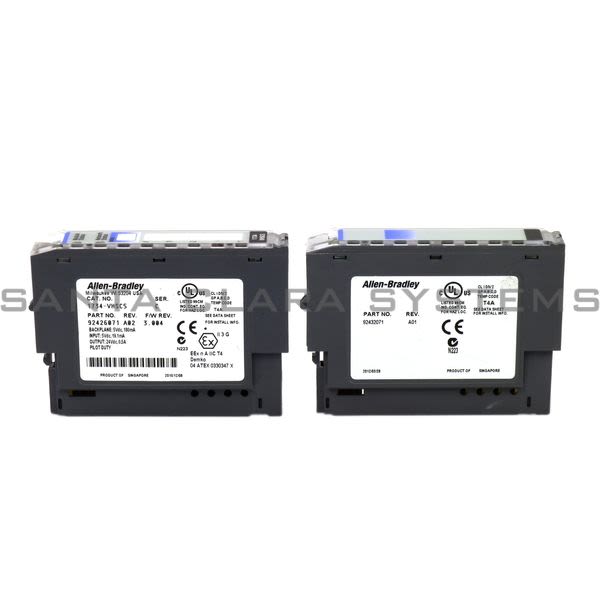

1734-VHSC5

Allen Bradley - Very High Speed Counter

Current response time:

7 Minutes 16 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Very High Speed Counter
Mounting type: DIN Rail
Product Type: Incremental Encoder VHSC Module
Enclosure type rating: None (open-style)
Relative humidity: 5...95% non-condensing
Product Series: 1734* Counter Modules
Number of counters: 1
Number of compare windows: 4
Output groups: 1 group of 2
Voltage category/type, input: 5V DC
Current, off-state input, max: 0.250 mA
Voltage, off-state input, max: 1.25V DC

Current, on-state input, min: 5 mA
Current, on-state input, max: 25.7 mA @ 6V DC 19.1 mA @ 5V DC
Voltage, on-state input, min: 2.6V DC
Voltage, on-state Input, max: 2.6V DC
Input frequency, max: 1.0 MHz counter and encoder X1 configurations (no filter) | 500 kHz encoder X2 configuration (no filter) | 250 kHz encoder X4 configuration (no filter)
Power dissipation, max: 1.5 W @ rated load
Thermal dissipation, max: 5.1 BTU/hr @ rated load
Keyswitch position: 2
Isolation voltage: 50V (continuous), Basic Insulation Type Type tested at 1100V DC for 60 s, field-side to system
Operating shock: 30 g
Nonoperating shock: 50 g
Vibration: 5 g @ 10...500 Hz

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1734-VHSC5 . Santa Clara Systems carries 54,584 items from Allen Bradley.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
