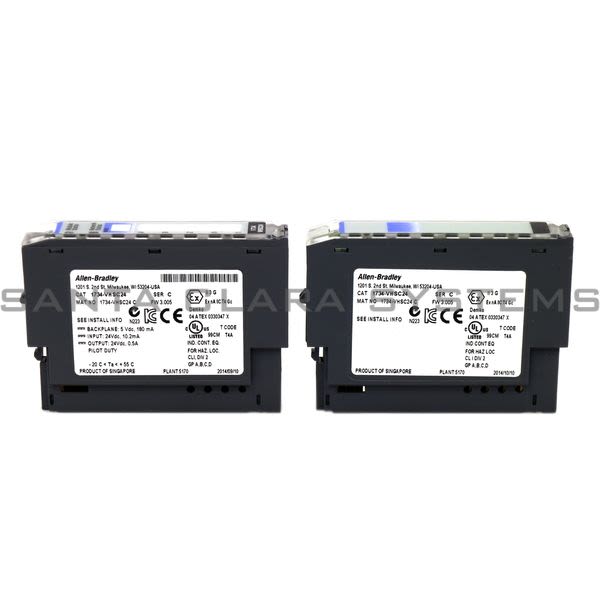

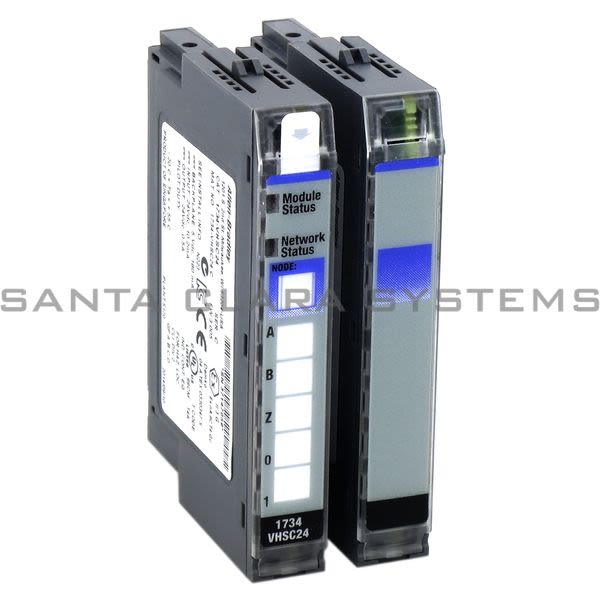

1734-VHSC24

Allen Bradley - Very High Speed Counter

Current response time:

8 Minutes 37 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Very High Speed Counter
Mounting type: DIN Rail
Product Type: Incremental Encoder VHSC Module
Enclosure type rating: None (open-style)
Relative humidity: 5...95% non-condensing
Product Series: 1734* Counter Modules
Number of counters: 1
Number of compare windows: 4
Output groups: 1 group of 2
Voltage category/type, input: 24V DC
Current, off-state input, max: 0.250 mA
Voltage, off-state input, max: 1.8V DC

Current, on-state input, min: 5 mA
Current, on-state input, max: 10.2 mA @ 24V DC or 6.1 mA @ 15V DC
Voltage, on-state input, min: 12.5V DC
Voltage, on-state Input, max: Refer to input derating curve
Input frequency, max: 1.0 MHz counter and encoder X1 configurations (no filter) | 500 kHz encoder X2 configuration (no filter) | 250 kHz encoder X4 configuration (no filter)
Power dissipation, max: 1.9 W @ rated load
Thermal dissipation, max: 6.5 BTU/hr @ rated load
Keyswitch position: 2
Isolation voltage: 50V (continuous), Basic Insulation Type Type tested at 1100V DC for 60 s, field-side to system
Operating shock: 30 g
Nonoperating shock: 50 g
Vibration: 5 g @ 10...500 Hz

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1734-VHSC24 . Santa Clara Systems carries 54,584 items from Allen Bradley.
