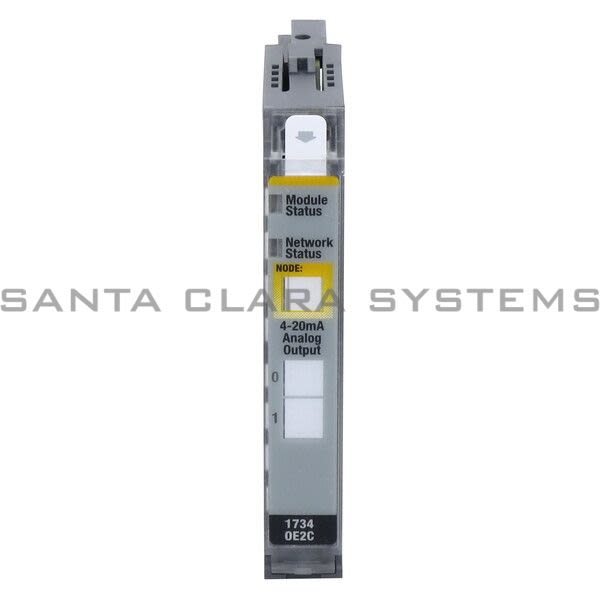

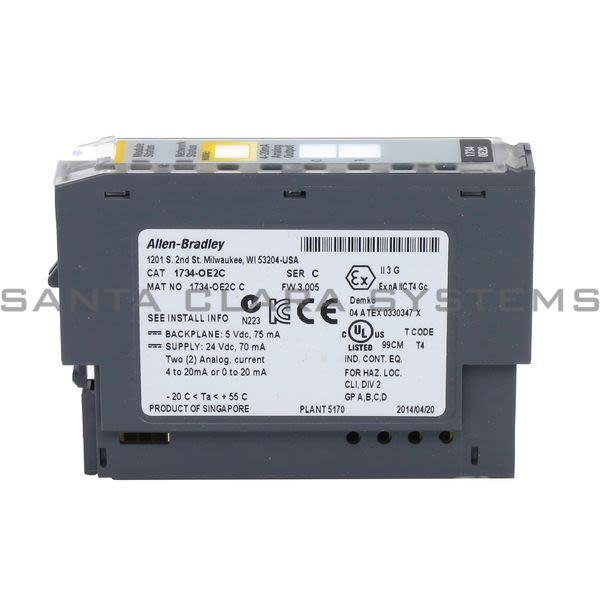

1734-OE2C

Allen Bradley - Analog Output Module

Current response time:

By 5AM PT on Monday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Analog Output Module
Product Type: 2 Current Output and 2 Voltage Output Analog Module
Output current: 0 mA output until communication established| 4...20 mA user configurable| 0...20 mA user configurable
Enclosure type rating: None (open-style)
Product Series: 1734* Series C POINT I/O
Number of outputs: 2 single-ended, non-isolated, current
Indicators, logic side: 1 green/red module status | 1 green/red network status | 2 green/red output status
Keyswitch position: 4
POINTBus current, max: 75 mA @ 5V DC

Isolation voltage (Continuous-voltage Withstand Rating): 50V Continuous Tested to withstand 2200V DC for 60 s No isolation between individual channels
External DC power supply voltage, nom.: 24V DC
External DC power supply voltage range: 10...28.8V DC
External DC power supply current: 70 mA @ 24V DC (including outputs @ 20 mA)
Dimensions (HxWxD), approx.: 56 x 12 x 75.5 mm (2.21 x 0.47 x 2.97 in)
Weight, approx: 36 g (1.27 oz)
Power dissipation, max: 750 load on each output - 1.23 W | 0 load on each output - 1.83 W
Thermal dissipation, max: 750 load on each output - 4.19 BTU/hr | 0 load on each output - 6.24 BTU/hr
Data format: Signed Integer

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1734-OE2C . Santa Clara Systems carries 54,520 items from Allen Bradley.
