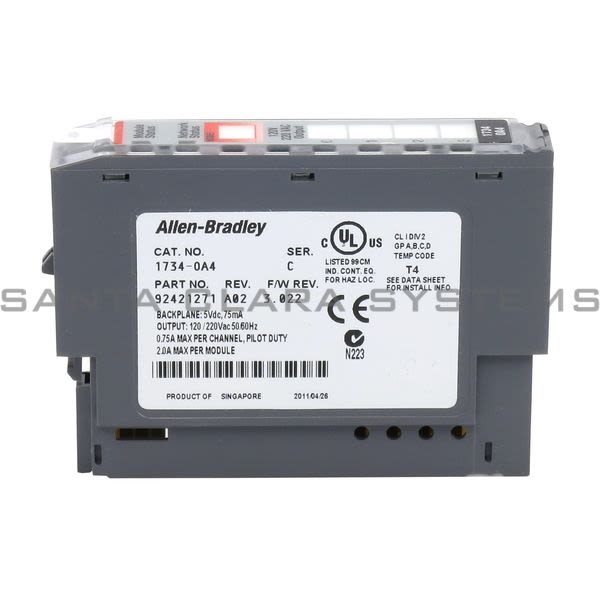

• Allen Bradley 1734-OA4 4-Channel 120/220V AC Output Module Product Image

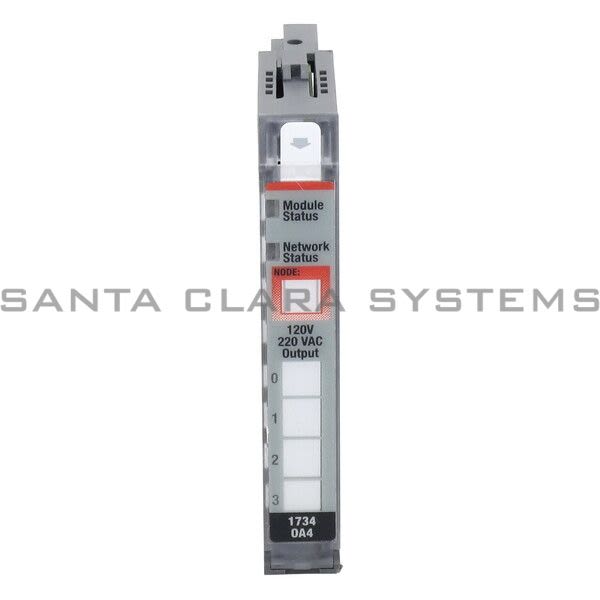

  • Allen Bradley 1734-OA4 4-Channel 120/220V AC Output Module Product Image

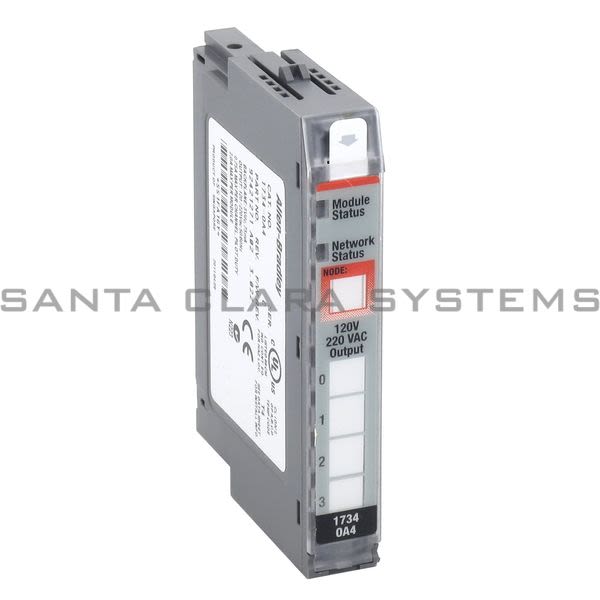

  • Allen Bradley 1734-OA4 4-Channel 120/220V AC Output Module Product Image
  • Allen Bradley 1734-OA4 Barcode
  • Allen Bradley 1734-OA4 Installation Instructions

    Installation Instructions

  • Allen Bradley 1734-OA4 User Manual

    User Manual

  • Allen Bradley 1734-OA4 Profile

    Profile

  • Allen Bradley 1734-OA4 Selection Guide

    Selection Guide

1734-OA4

Get a Quote

Current response time:

5 Minutes 9 Seconds
  • Description: 4-Channel 120/220V AC Output Module
  • Product Type: 120V and 220V AC Output Module
  • Output current rating: 2.0 A (750 mA per output, 2.0 A max per module)
  • Product Series: 1734* Series C Point I/O
  • Outputs per module: 4 nonisolated, sourcing
  • On-state voltage range, min: 74V AC
  • On-state voltage range, nom: 120/220V AC
  • On-state voltage range, max: 264V AC
  • On-state voltage drop, max: 1.0V @ 0.75 A
  • On-state current, min: 10 mA per channel
  • On-state current, max: 750 mA per output 2.0 A per module
  • Off-state leakage, max: 2.7 mA @ 264V AC
  • Surge current: 16 A for 100 ms, repeatable every 10 s
  • Power dissipation, max: 3.5 W @ 264V AC
  • 6.8 BTU @ 264V AC: 11.9 BTU @ 264V AC
  • Isolation voltage: 240V (continuous), Reinforced Insulation Type tested @ 3250V DC for 60 s, field-side to system
  • Keyswitch position: 8
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1734-OA4 . Santa Clara Systems carries 54,496 items from Allen Bradley.
