1734-OB8E

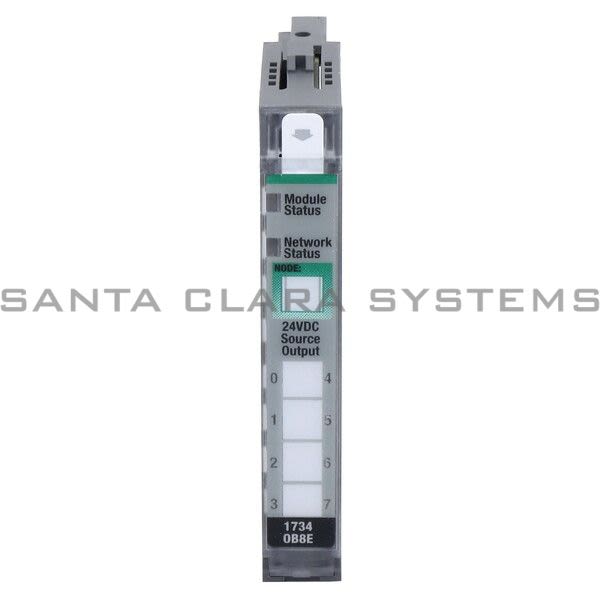

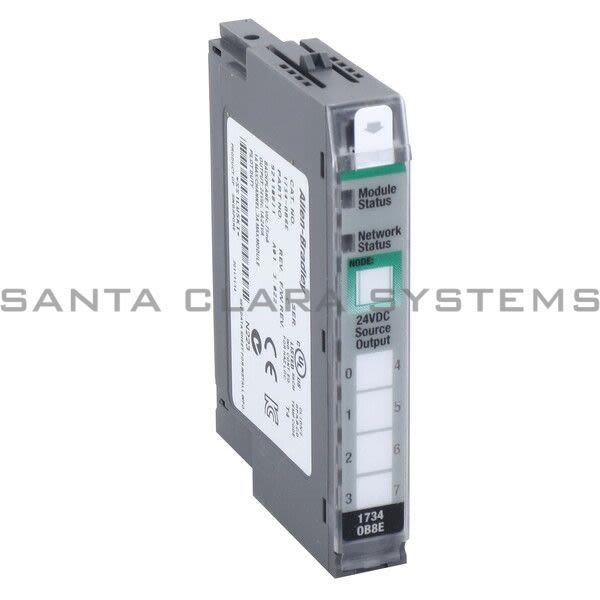

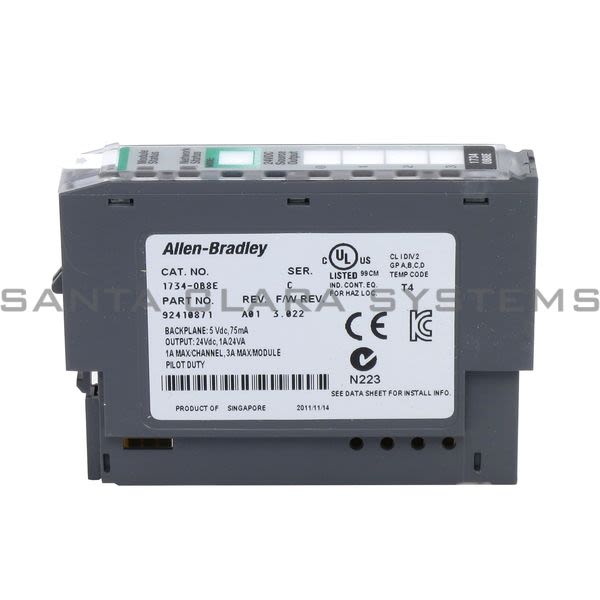

Allen Bradley - Output Module

Current response time:

18 Minutes 51 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Output Module
Product Type: Protected Output Module
Product Series: POINT I/O Protected
Number of outputs, non-isolated, sourcing: 8 (1 group of 8)
On-state voltage, min: 10V DC
On-state voltage, nom: 24V DC
On-state and Off-state voltage, max: 28.8V DC
On-state voltage drop, max: 0.2V DC
On-state current, min, per channel: 1.0 mA
Off-state leakage, max: 0.5 mA
Output current rating, per output: 1.0 A
Output current rating, max, per module: 3.0 A

Surge current: 2 A for 10 ms, repeatable every 3 s
Indicators (field side indication, logic-driven): 8 yellow output status | 8 red output fault | 2 green/red module/network status
Keyswitch position: 1
Terminal base screw torque: 0.8 Nm (7 lbin)
POINTBus current, max: 75 mA @ 5V DC
Power dissipation @ 28.8V DC, max: 2.0 W
Thermal dissipation @ 28.8V DC, max: 6.8 BTU/hr
Isolation voltage: 50V (continuous), reinforced insulation type Tested @ 2500V DC for 60 s, field-side to system
External DC power supply voltage, nom: 24V DC
External DC power supply current: 32 mA
Dimensions, HxWxD: 56.0 x 12.0 x 75.5 mm (2.21 x 0.47 x 2.97 in.)
Weight, approx.: 35.4 g (1.25 oz)
