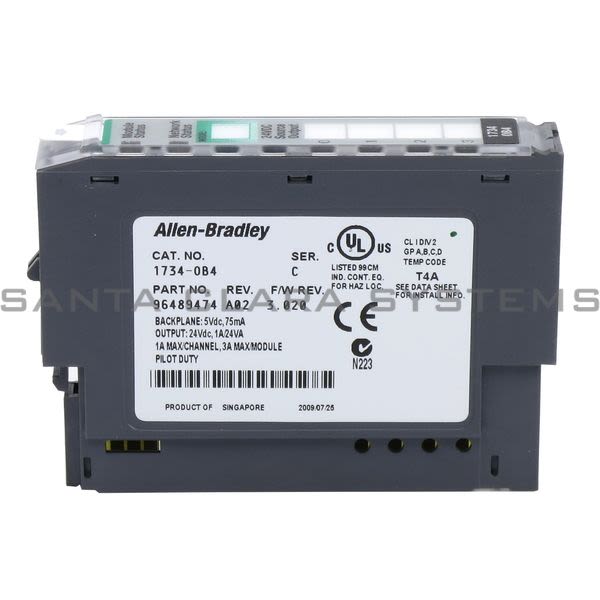

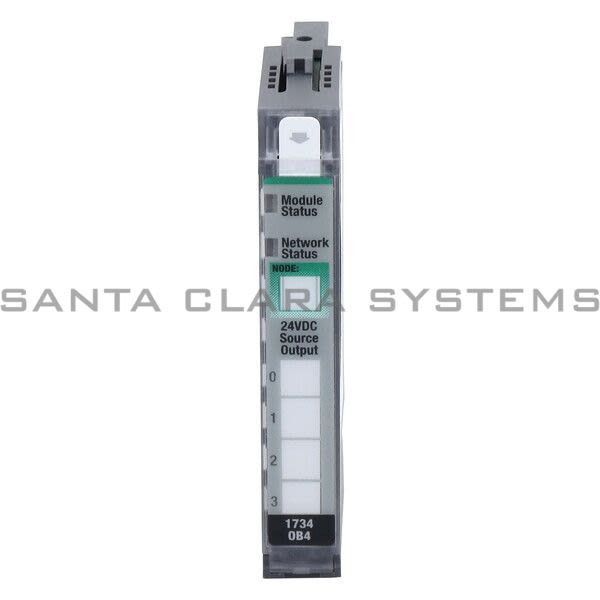

1734-OB4

Allen Bradley - Output Module

Current response time:

19 Minutes 21 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Output Module
Product Type: POINT I/O Output Module
Output current rating: 1.0 A per output, not to exceed 3.0 A max per module
On-state voltage range and Off-state voltage, max: 28.8V DC
Product Series: 1734* C Series POINT I/O
Outputs per module, non-isolated, sourcing: 4 (1 group of 4)
On-state voltage range, min: 10V DC
On-state voltage range, nom: 24V DC
On-state voltage drop, max: 0.2V DC
On-state current, min per channel: 1.0 mA
Off-state leakage, max: 0.5 mA

Surge current: 2 A for 10 ms, repeatable every 3 s
Terminal base screw torque: 0.8 Nm (7 lbin)
Indicators: 4 yellow output status | 2 green/red module/network status
POINTBus current, max @ 5V DC: 75 mA
Power dissipation, max @ 28.8V DC: 1.2 W
Thermal dissipation, max @ 28.8V DC: 4.1 BTU/hr
Isolation voltage: 50V (continuous), reinforced insulation type Type tested @ 2500V DC for 60 s, field-side to system
External DC power supply current: 16 mA
Dimensions (H x W x D), approx.: 56.0 x 12.0 x 75.5 mm (2.21 x 0.47 x 2.97 in.)
Weight, approx.: 33.17 g (1.17 oz)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1734-OB4 . Santa Clara Systems carries 53,824 items from Allen Bradley.
