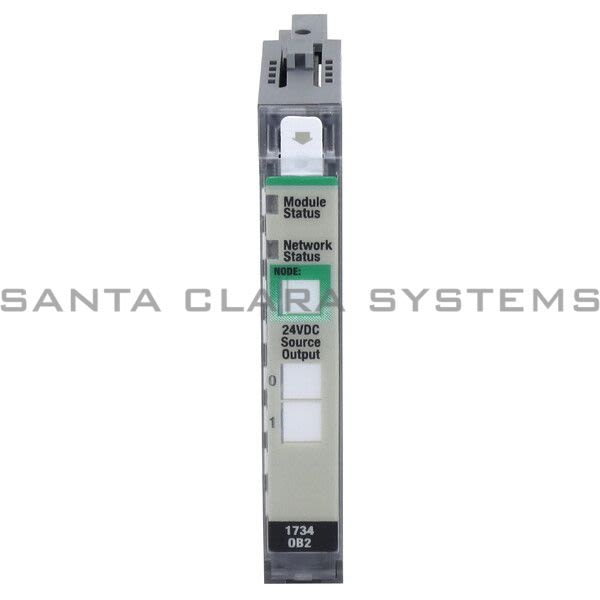

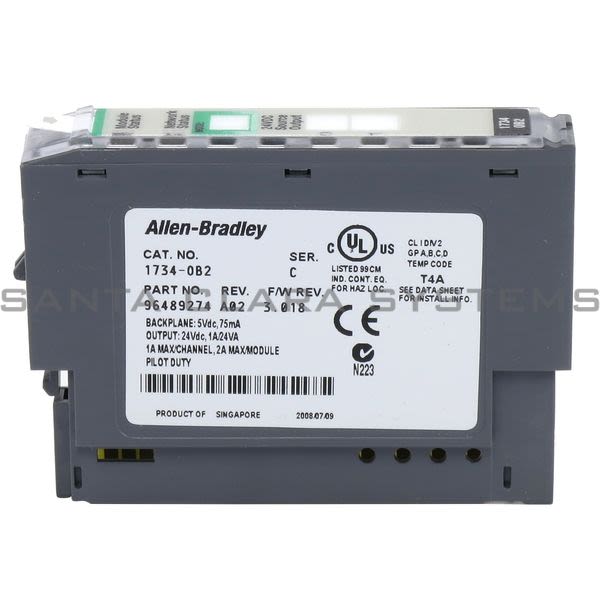

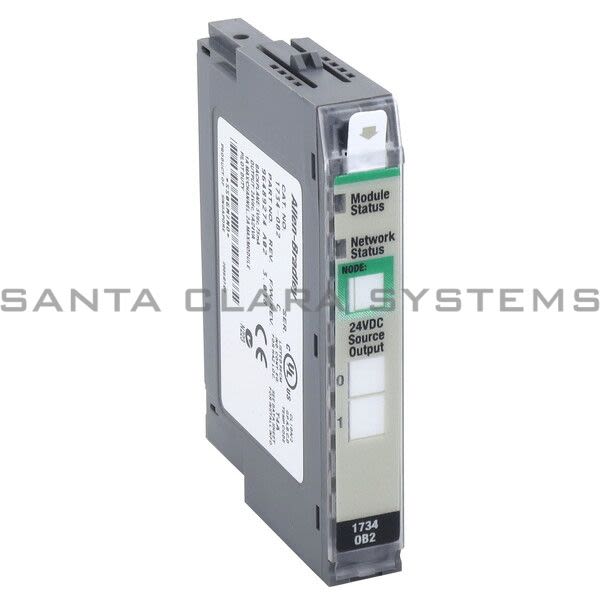

1734-OB2

Allen Bradley - Output Module

Current response time:

By 5AM PT on Monday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Output Module
Product Type: POINT I/O Output Module
Output current rating: 1.0 A per output, 2.0 A max per module
Product Series: 1734* C Series POINT I/O
Outputs per module, non-isolated, sourcing: 2 (1 group of 2)
On-state voltage range, min: 10V DC
On-state voltage range, nom: 24V DC
On-state voltage range and Off-state voltage, max: 28.8V DC
On-state voltage drop, max: 0.2V DC
On-state current, min per channel: 1.0 mA
Off-state leakage, max: 0.5 mA

Surge current: 2 A for 10 ms, repeatable every 3 s
Terminal base screw torque: 0.8 Nm (7 lbin)
POINTBus current, max @ 5V DC: 75 mA
Power dissipation, max @ 28.8V DC: 0.8 W
Thermal dissipation, max @ 28.8V DC: 2.7 BTU/hr
Isolation voltage: 50V (continuous), reinforced insulation type Type tested @ 2500V DC for 60 s, field-side to system
Weight, approx.: 32.60 g (1.15 oz)
Dimensions (H x W x D), approx.: 56.0 x 12.0 x 75.5 mm (2.21 x 0.47 x 2.97 in.)
External DC power supply current: 8 mA
Indicators: 2 yellow output status | 2 green/red module/network status

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1734-OB2 . Santa Clara Systems carries 54,520 items from Allen Bradley.
