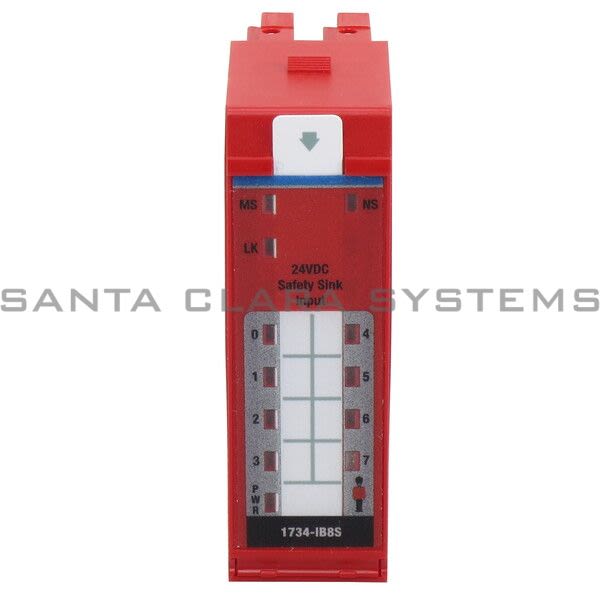

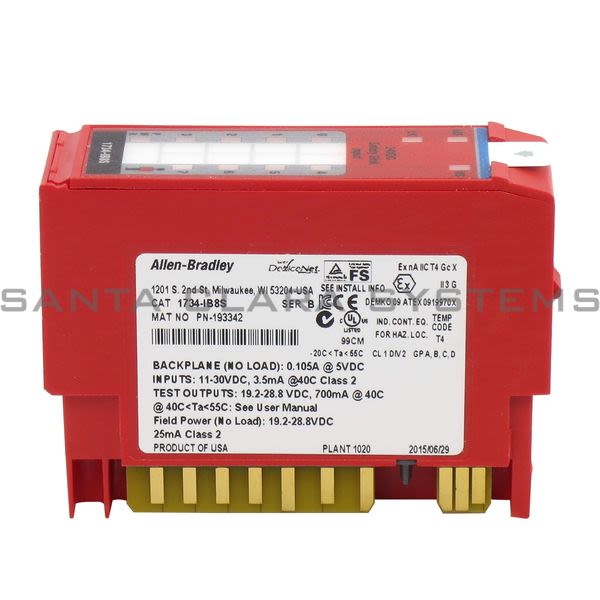

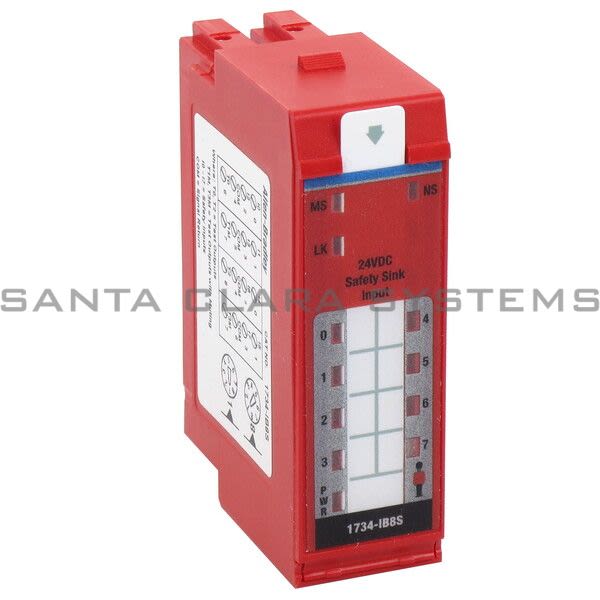

1734-IB8S

Allen Bradley - Point Guard I/O Module

Current response time:

By 5AM PT on Monday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Point Guard I/O Module
Product Type: Safety Input Module
Enclosure type rating: None (open-style)
Residual voltage, max: 1.2V
Current, off-state, max: 1.3 mA
Voltage, On-State Input: 11...30V DC
Voltage, off-state input, max: 5V DC
Current, on-state input, min: 3.3 mA
Safety input type: Current sinking
IEC 61131-2 (Input Type): Type 3
Reaction Time: <16.2 ms
Pulse Test Output Type: Current Sourcing
Number of Sources (T0, T1M, T2, T3M): 4
Test Output Current (Each Output Point): 0.7 A Max

Product Series: 1734* POINT I/O Modules
Pulse Width: 525 s
Short circuit protection: Yes
Output leakage current, max: 0.1 mA
Safety Inputs per module: 8
Dimensions (HxWxD), approx. (without terminal block): 77 x 24 x 55 mm (3.03 x 0.94 x 2.17 in.)
Weight, approx.: 62.4 g (2.2 oz)
POINTBus current, max: 175 mA
Power dissipation, max: 2.44 W
Thermal dissipation: 8.34 BTU/hrr
Isolation voltage: 50V (continuous), Basic Insulation Type between field side and system No isolation between individual channels Type tested @ 707V DC for 60 s
Power bus, operating supply voltage, nom: 24V DC
Power bus, operating voltage range: 19.2...28.8V DC

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1734-IB8S . Santa Clara Systems carries 54,520 items from Allen Bradley.
