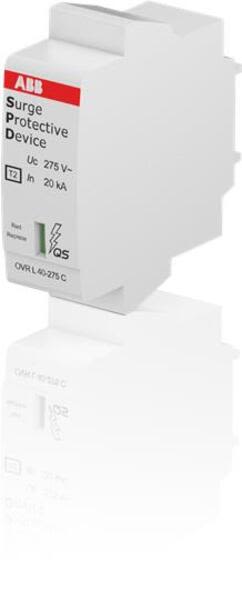

- Description: Surge Protective Device | 2CTB803876R1000
- Product ID: 2CTB803876R1000
- Extended Product Type: 2CTB803876R1000
- Product Net Weight: 50 g
- Product Net Width: 17.6 mm
- Product Net Height: 57 mm
- Product Net Depth: 55.6 mm
- Product Main Type: T2
- Product Name: Surge Protective Devices
- Standards: IEC 61643-11 / EN 61643-11
- Suitable For: To protect the systems against the transient overvoltage (lightning)
- Product Type: QS
- Number of Protected Poles: 1
- Version: Plug-in
- EAN: 3660308520890
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363090
- Type of Low Voltage Distribution System: TT TN-C TN-S
- Nominal AC Voltage of the System (U<sub>o</sub>): 230 / 400 V
- Arrester Class: II
- Discharge Current (<sub></sub>): Nominal 20 kA Maximum 40 kA
- Impulse Current: 2 kA
- Maximum Continuous Operating Voltage (U<sub>c</sub>): (L-PE) 275 V (L-L) 275 V (L-N) 275 V (N-PE) - V
- Voltage Rating DC: 350 V
- Short Circuit Withstand Icc: 100 kA
- Temporary Overvoltage Test Value (U<sub>T</sub>): 337 V
- Width in Number of Modular Spacings: 1
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 117 mm
- Package Level 1 Length: 25 mm
- Package Level 1 Height: 82 mm
- Package Level 1 Gross Weight: 65 g
- Package Level 1 EAN: 3660308520890
- Data Sheet, Technical Information: -
- Declaration of Conformity - CE: 2CTC436004G1701
- Instructions and Manuals: -
- UL Certificate: Y
- ETIM 4: EC000941 - Surge protection device for power supply systems
- ETIM 5: EC000941 - Surge protection device for power supply systems
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OVR-T2-40-275-C-QS . Santa Clara Systems carries 36,972 items from ABB.
