AF140-30-11B-13

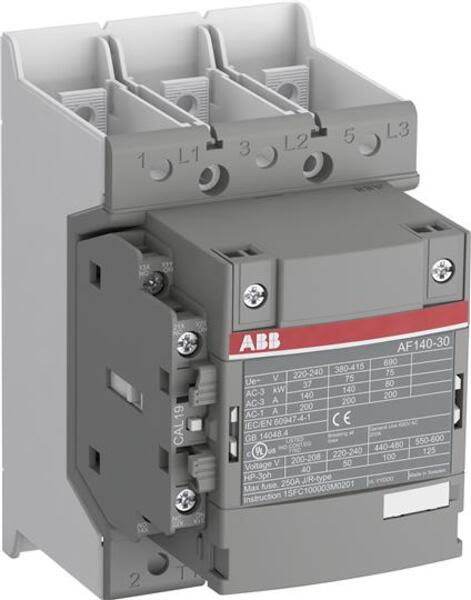

ABB - AF140-30-11B-13 Contactor

Current response time:

By 5AM PT on Monday

Emergency?

Description: AF140-30-11B-13 Contactor
Product ID: 1SFL447002R1311
Extended Product Type: 1SFL447002R1311
Product Net Weight: 1.648 kg
Product Net Width: 90.0 mm
Product Net Height: 150.0 mm
Product Net Depth: 126.0 mm
Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Ambient Air Temperature: Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25+50 C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40+70 C Close to Contactor for Storage -40+70 C
Rated Impulse Withstand Voltage (Uimp): Main Circuit 8 kV
Rated Insulation Voltage (Ui): acc. to UL/CSA 600 V acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
Terminal Type: Main Circuit: Bars
Rated Frequency (f): Main Circuit 50/60 Hz
Number of Auxiliary Contacts NO: 1
Number of Auxiliary Contacts NC: 1
Mechanical Durability: 5 million
Connecting Capacity Main Circuit: Rigid Cu-Cable 2x1095 mm Flexible 2x1070 mm
Maximum Operating Voltage UL/CSA: Main Circuit 600 V
Maximum Operating Altitude Permissible: 3000 m
Rated Control Circuit Voltage (Uc): 60 Hz 100250 V 50 Hz 100250 V DC Operation 100250 V
Maximum Mechanical Switching Frequency: 300 cycles per hour
Connecting Capacity Auxiliary Circuit: Solid 1x14 mm Flexible with Insulated Ferrule 2x0.752.5 mm Stranded 2x14 mm Flexible 2x0.752.5 mm Flexible with Ferrule 2x0.752.5 mm
Operate Time: Between Coil Energization and NO Contact Closing 2555 ms Between Coil De-energization and NO Contact Opening 3747 ms
Number of Main Contacts NO: 3
Number of Main Contacts NC: 0
Short-Circuit Protective Devices: gG Type Fuses 315 A
Maximum Breaking Capacity: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3000 A cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 1500 A
Coil Consumption: Pull-in at Max. Rated Control Circuit Voltage 60 Hz 130 V·A Holding at Max. Rated Control Circuit Voltage DC 3 W Holding at Max. Rated Control Circuit Voltage 50 Hz 6 V·A Pull-in at Max. Rated Control Circuit Voltage DC 135 W Pull-in at Max. Rated Control Circuit Voltage 50 Hz 130 V·A Holding at Max. Rated Control Circuit Voltage 60 Hz 6 V·A
Coil Operating Limits: (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at 70 C) C
Horsepower Rating UL/CSA: (208 V AC) Three Phase 40 Hp (440 ... 480 V AC) Three Phase 100 Hp (550 ... 600 V AC) Three Phase 125 Hp (220 ... 240 V AC) Three Phase 50 Hp (200 V AC) Three Phase 40 Hp
General Use Rating UL/CSA: (600 V AC) 200 A
EAN: 7320500476963
Minimum Order Quantity: 1 piece

Customs Tariff Number: 85364900
Package Level 1 Width: 194 mm
Package Level 1 Length: 115 mm
Package Level 1 Height: 169 mm
Package Level 1 Gross Weight: 1.57 kg
Package Level 1 EAN: 7320500476963
Package Level 1 Units: 1 piece
Rated Operational Voltage: Main Circuit 690 V
Conventional Free-air Thermal Current (Ith): acc. to IEC 60947-4-1, Open Contactors q = 40 C 200 A
Rated Operational Current AC-1 (Ie): (690 V) 55 C 175 A (690 V) 40 C 200 A (690 V) 70 C 160 A
Rated Operational Current AC-3 (Ie): (220 / 230 / 240 V) 55 C 140 A (690 V) 55 C 80 A (415 V) 55 C 140 A (440 V) 55 C 140 A (380 / 400 V) 55 C 140 A (500 V) 55 C 130 A
Rated Operational Power AC-3 (Pe): (500 V) 90 kW (690 V) 75 kW (220 / 230 / 240 V) 37 kW (380 / 400 V) 75 kW (440 V) 90 kW (415 V) 75 kW
Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1: 8 x Ie AC-3
Rated Making Capacity AC-3 acc. to IEC 60947-4-1: 10 x Ie AC-3
Rated Short-time Withstand Current (Icw): at 40 C Ambient Temp, in Free Air, from a Cold State 15 min 200 A at 40 C Ambient Temp, in Free Air, from a Cold State 10 s 1168 A at 40 C Ambient Temp, in Free Air, from a Cold State 30 s 674 A at 40 C Ambient Temp, in Free Air, from a Cold State 1 s 1460 A at 40 C Ambient Temp, in Free Air, from a Cold State 1 min 477 A
Maximum Electrical Switching Frequency: AC-3 300 cycles per hour AC-1 300 cycles per hour AC-2 / AC-4 150 cycles per hour
Rated Operational Current DC-1 (Ie): (110 V) 2 Poles in Series, 40 C 160 A (220 V) 3 Poles in Series, 40 C 160 A
Rated Operational Current DC-3 (Ie): (110 V) 2 Poles in Series, 40 C 160 A (220 V) 3 Poles in Series, 40 C 160 A
Rated Operational Current DC-5 (Ie): (110 V) 2 Poles in Series, 40 C 160 A (220 V) 3 Poles in Series, 40 C 160 A
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Instructions and Manuals: 1SFC100003M0201
CB Certificate: SE-70480
CCC Certificate: CQC_2013010304604055
Data Sheet, Technical Information: 1SFC101070D0201
Declaration of Conformity - CE: 2CMT004242
RINA Certificate: ELE060313XG/002
RoHS Information: 1SFC101055D0202
E-nummer: 3210109
ETIM 4: EC000066 - Magnet contactor, AC-switching
ETIM 5: EC000066 - Magnet contactor, AC-switching
UNSPSC: 39121529
Object Classification Code: Q

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AF140-30-11B-13 . Santa Clara Systems carries 36,937 items from ABB.

50/60 Hz And Dc

A 3-Phase Contactor Suitable For Various Applications Such As Motor Starting
Isolation
By-Pass And Distribution Application Up To Max 690 V. Operated With Wide Control Voltage Range 100-250 V
