P1NH802

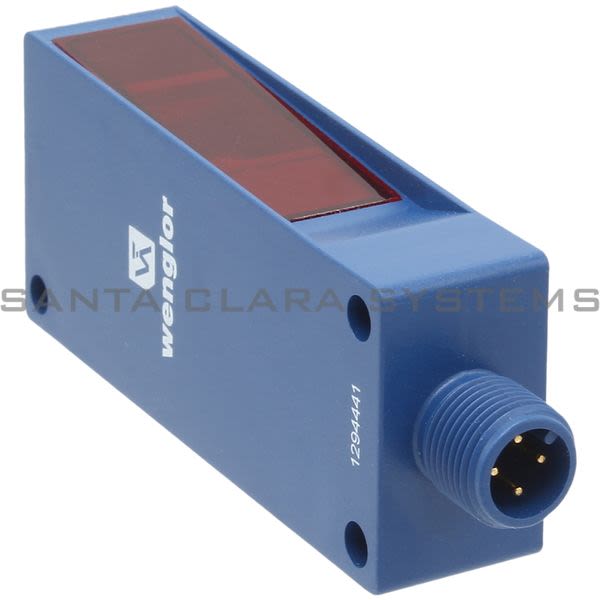

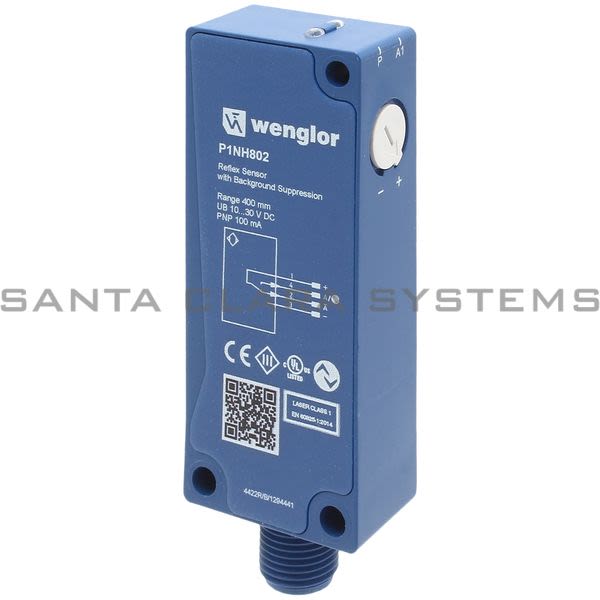

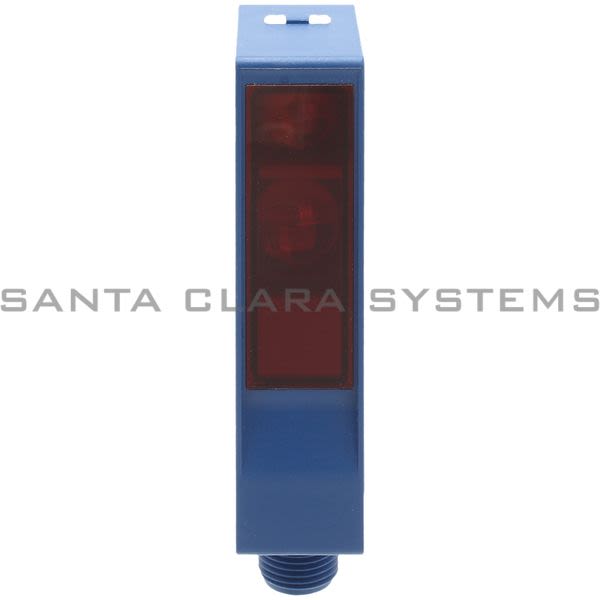

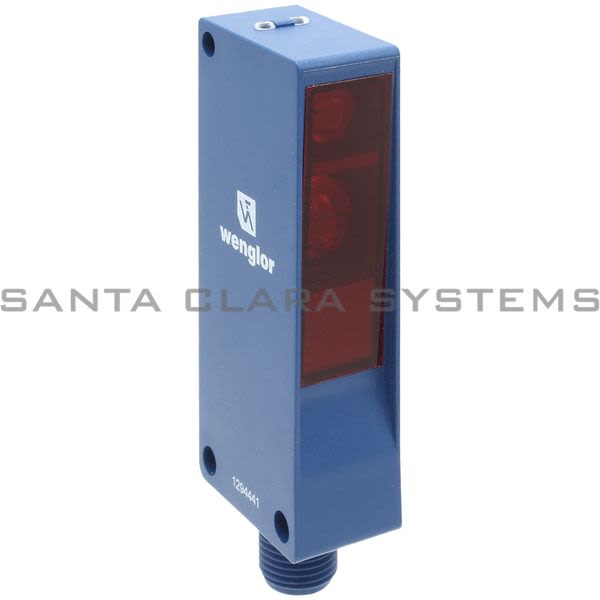

Wenglor - Reflex Sensor with Background Suppression

Product Summary:

Range: 400 mm
Setting Range: 65 ... 400 mm
Switching Hysteresis: < 1 %
Light Source: Laser (red)
Wavelength: 655 nm

Current response time:

13 Minutes 40 Seconds

Description: Reflex Sensor with Background Suppression
Range: 400 mm
Setting Range: 65 ... 400 mm
Switching Hysteresis: < 1 %
Light Source: Laser (red)
Wavelength: 655 nm
Service Life (T = +25 C): 100,000 h
Laser Class (EN 60825-1): 1
Max. Ambient Light: 10,000 Lux
Supply Voltage: 10 ... 30 V DC
Supply Voltage with IO-Link: 18 ... 30 V DC

Current Consumption (Ub = 24 V): < 15 mA
Switching Frequency: 600 Hz
Switching Frequency (interference-free mode): 300 Hz
Response Time: 0.83 ms
Response time (interference-free mode): 1.7 ms
Temperature Drift: < 2 %
Temperature Range: -25 ... 60 C
Switching Output Voltage Drop: < 2 V
Switching Output/Switching Current: 100 mA
Interface: IO-Link V1.1
Protection Class: III

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P1NH802 . Santa Clara Systems carries 3,781 items from Wenglor.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
