I1CH007
In stock and ready to ship
Product Summary:
- Supply Voltage: 10...30 V DC
- Current Consumption (Ub = 24 V): < 10 mA
- Switching Frequency: 960 Hz
- Temperature Drift: < 10 %
- Temperature Range: -40...80 C
Get a Quote
Current response time:
16 Minutes 10 Seconds

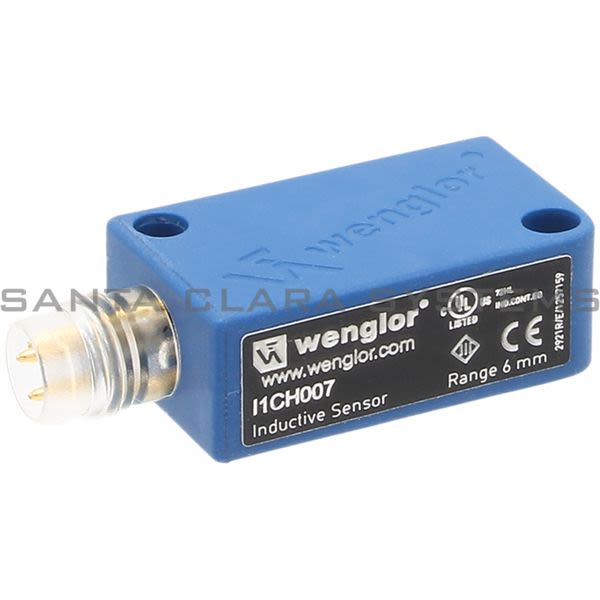

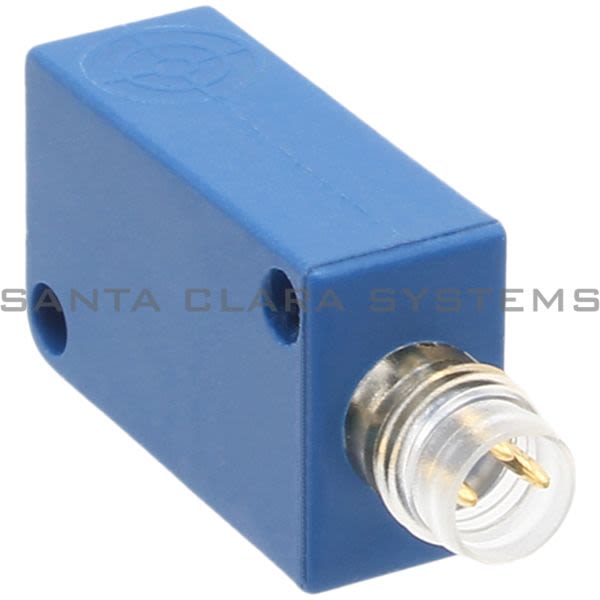

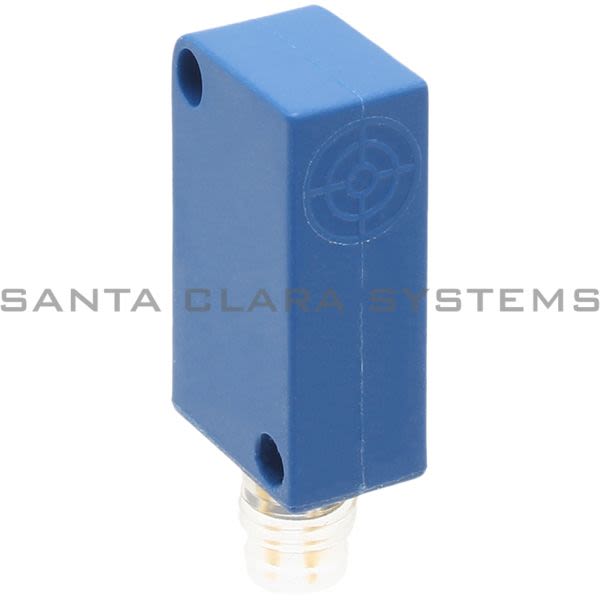

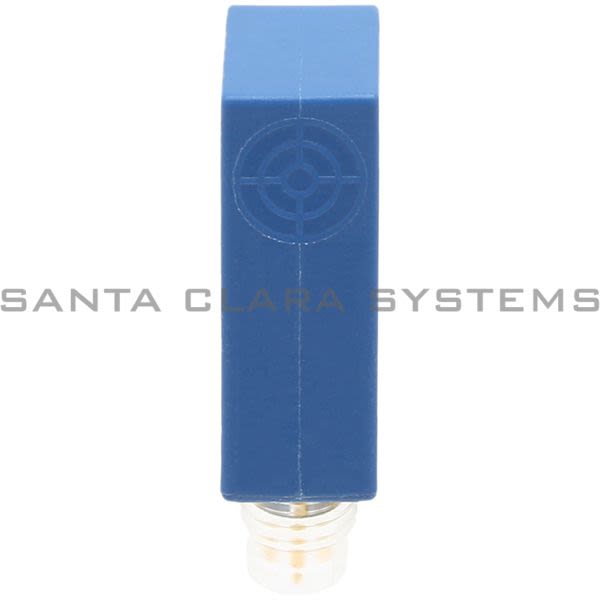

- Description: Inductive Sensor with Increased Switching Distances
- Supply Voltage: 10...30 V DC
- Current Consumption (Ub = 24 V): < 10 mA
- Switching Frequency: 960 Hz
- Temperature Drift: < 10 %
- Temperature Range: -40...80 C
- Switching Output Voltage Drop: < 1 V
- Switching Output/Switching Current: 150 mA
- Residual Current Switching Output: < 100 A
- Short Circuit Protection: yes
- Reverse Polarity and Overload Protection: yes
- Protection Class: III
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on I1CH007 . Santa Clara Systems carries 3,781 items from Wenglor.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
