1014300000

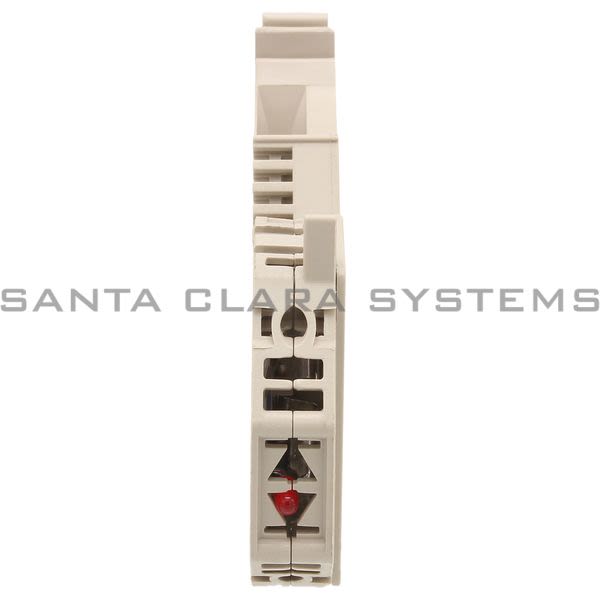

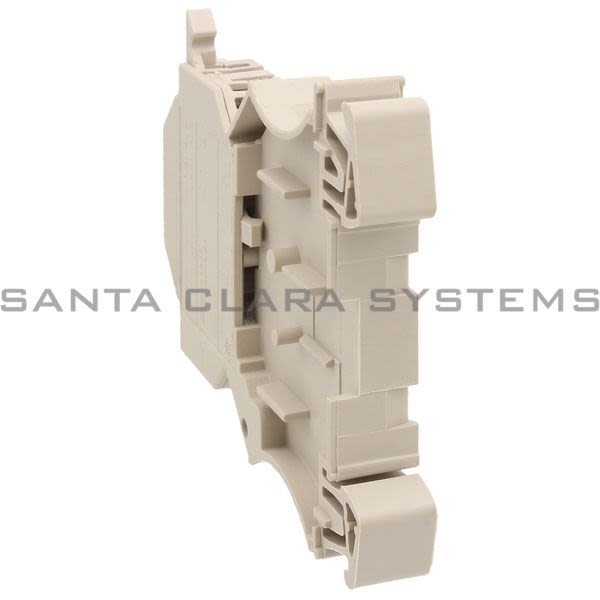

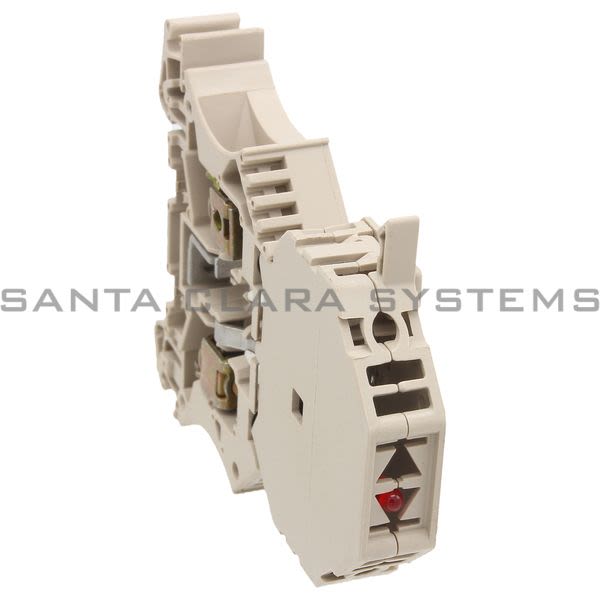

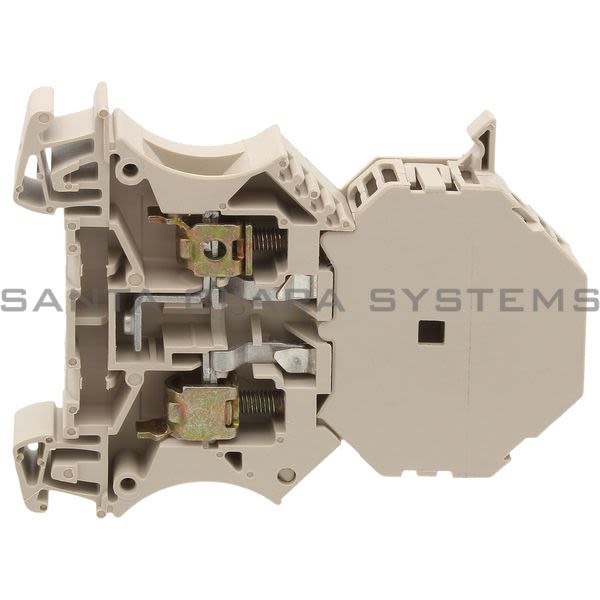

Weidmuller - Terminal Block | WSI 6/2/LD 120AC

Product Summary:

Type: WSI 6/2/LD 60-150VDC/AC
Version: W-Series, Fuse terminal, Rated cross-section: 6 mm, Screw connection
GTIN (EAN): 4008190084424
Width: 11.9 mm
Width (inches): 0.469 inch

Current response time:

14 Minutes 42 Seconds

Description: Terminal Block | WSI 6/2/LD 120AC
Type: WSI 6/2/LD 60-150VDC/AC
Version: W-Series, Fuse terminal, Rated cross-section: 6 mm, Screw connection
GTIN (EAN): 4008190084424
Width: 11.9 mm
Width (inches): 0.469 inch
Height: 60 mm
Height (inches): 2.362 inch
Depth: 78.5 mm
Depth (inches): 3.091 inch
Depth including DIN rail: 79.5 mm
Weight: 28.8 g
Net weight: 25.44 g
Material: Wemid

Color: dark beige
UL 94 flammability rating: V-0
Tightening torque (clamping screw for copper conductors): 0.8...1.6 Nm
End cover plate required: Yes
Number of potentials: 1
Number of levels: 1
No. of clamping points per level: 2
Number of potentials per tier: 1
Levels cross-connected internally: No
PE connection: No
Rail: TS 35
N-function: No
PE function: No
PEN function: No

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1014300000 . Santa Clara Systems carries 552 items from Weidmuller.
