1010000000

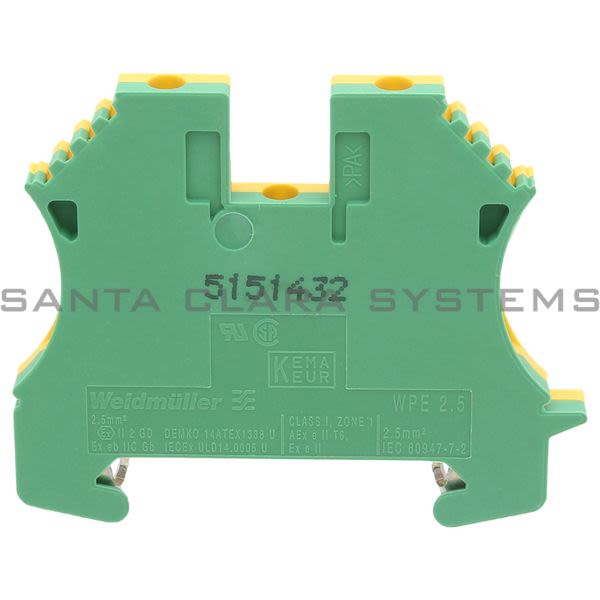

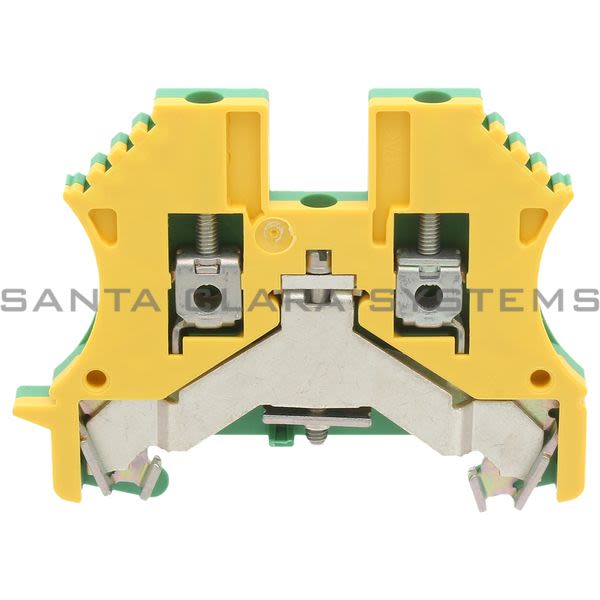

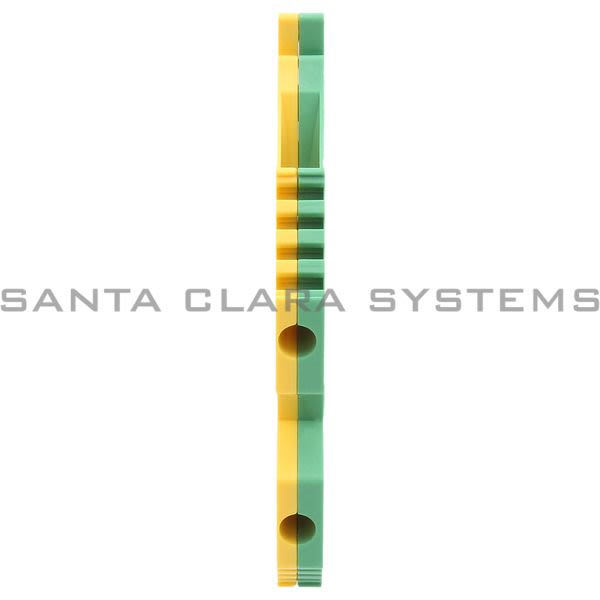

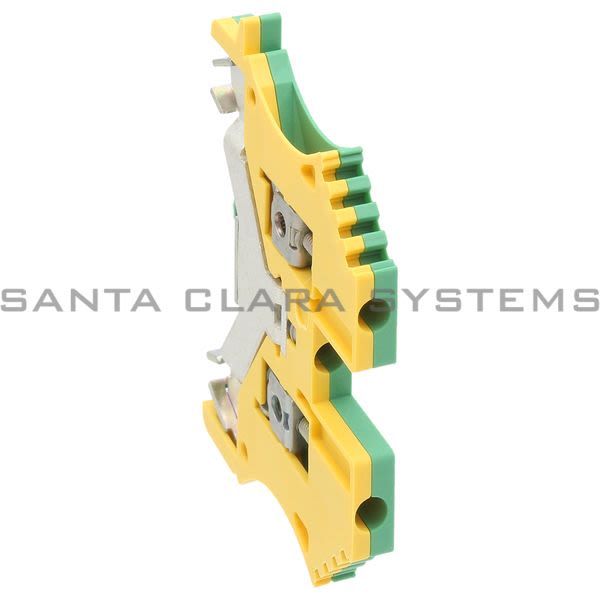

Weidmuller - Terminal Block | WPE 2.5

Product Summary:

Type: WPE 2.5
Version: PE terminal, Screw connection, 2.5 mm, 300 A (2.5 mm), Green/yellow
GTIN (EAN): 4008190143640
Width: 5.1 mm
Width (inches): 0.201 inch

Current response time:

18 Minutes 35 Seconds

Description: Terminal Block | WPE 2.5
Type: WPE 2.5
Version: PE terminal, Screw connection, 2.5 mm, 300 A (2.5 mm), Green/yellow
GTIN (EAN): 4008190143640
Width: 5.1 mm
Width (inches): 0.201 inch
Height: 60 mm
Height (inches): 2.362 inch
Depth: 46.5 mm
Depth (inches): 1.831 inch
Depth including DIN rail: 47 mm
Weight: 18.86 g

Net weight: 16.22 g
Material: Wemid
Color: Green/yellow
UL 94 flammability rating: V-0
Certificate No. (ATEX): DEMKO14ATEX1338U
Certificate No. (IECEX): IECEXULD14.0005U
Wire cross section max. (ATEX): 2.5 mm
Wire cross section max. (IECEX): 2.5 mm
Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Marking EN 60079-7: Ex eb II C Gb
Ex 2014/34/EU label: II 2 G D

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1010000000 . Santa Clara Systems carries 552 items from Weidmuller.
