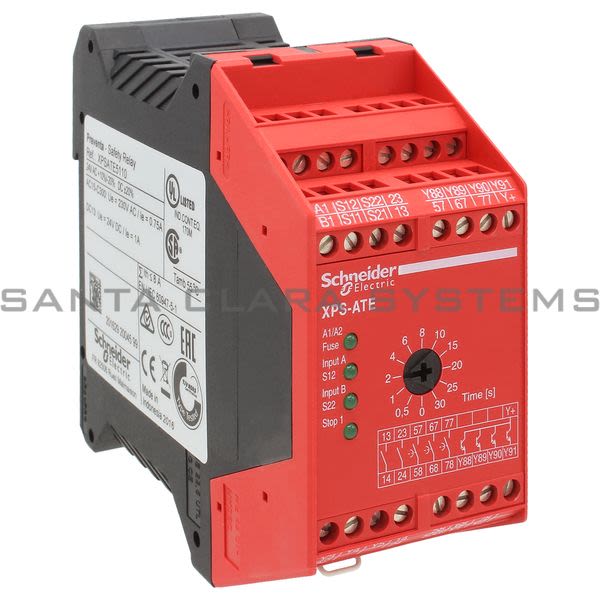

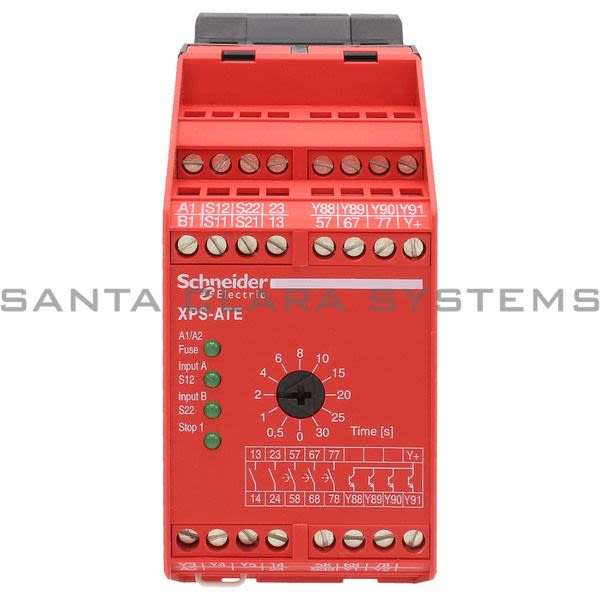

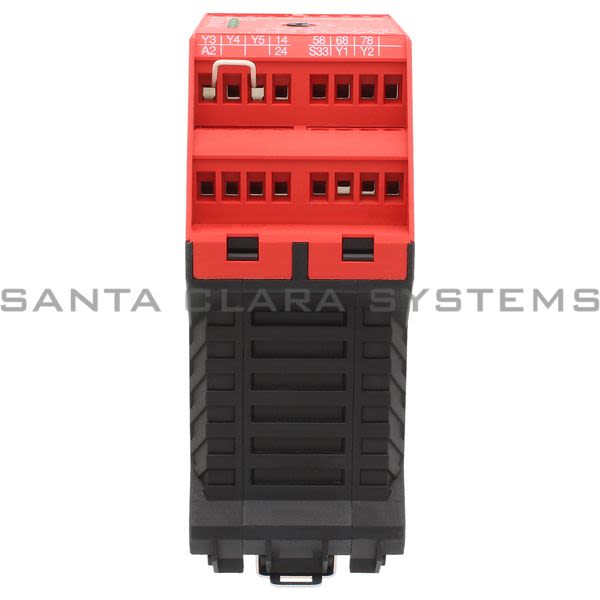

Telemecanique XPSATE5110 module XPSAT - Emergency stop - 24 V DC Product Image

XPSATE5110

Telemecanique - module XPSAT - Emergency stop - 24 V DC

Current response time:

14 Minutes 11 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: module XPSAT - Emergency stop - 24 V DC
Product weight: 0.62 lb(US) (0.28 kg)
Range of product: Preventa Safety automation
IP degree of protection: IP20 (terminals) conforming to EN/IEC 60529, IP40 (enclosure) conforming to EN/IEC 60529
Standards: EN/IEC 60204-1, EN/ISO 13850, EN/IEC 60947-5-1
[Ui] rated insulation voltage: 300 V (degree of pollution: 2) conforming to DIN VDE 0110 part 1, 300 V (degree of pollution: 2) conforming to IEC 60947-5-1
[Uimp] rated impulse withstand voltage: 4 kV overvoltage category III conforming to IEC 60947-5-1, 4 kV overvoltage category III conforming to DIN VDE 0110 part 1
Connections - terminals: Captive screw clamp terminals, clamping capacity: 2 x 0.5...2 x 1.5 mm flexible cable with cable end, with double bezel, Captive screw clamp terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm flexible cable with cable end, with double bezel, Captive screw clamp terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm solid cable with cable end, with double bezel, Captive screw clamp terminals, clamping capacity: 1 x 0.25...1 x 1.5 mm flexible cable with cable end, with double bezel, Captive screw clamp terminals, clamping capacity: 1 x 0.25...1 x 2.5 mm flexible cable with cable end, with double bezel, Captive screw clamp terminals, clamping capacity: 2 x 0.14...2 x 0.75 mm flexible cable with cable end, with double bezel, Captive screw clamp terminals, clamping capacity: 2 x 0.14...2 x 0.75 mm solid cable with cable end, with double bezel, Captive screw clamp terminals, clamping capacity: 2 x 0.25...2 x 1 mm flexible cable with cable end, with double bezel
Mounting support: 35 mm symmetrical DIN rail
[Ith] conventional free air thermal current: 8:00 AM
[Uc] control circuit voltage: 24 V DC
[Us] rated supply voltage: 24 V DC (- 15...10 %)
Associated fuse rating: 4 A fuse type gG for time delay outputs conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200, 6 A fuse type gG for instantaneous outputs conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
Breaking capacity: 1 A at 24 V (DC-13) time constant: 50 ms for relay output
Output type: Relay instantaneous opening 2 NO, volt-free, Relay time delay opening 3 NO, volt-free
Synchronisation time between inputs: 75 ms
Product or component type: Preventa safety module
Supply frequency: 50/60 Hz

Product certifications: CSA, TV, UL
Safety module name: XPSATE
power consumption in W: <= 8 W
Safety module application: For emergency stop and switch monitoring
Input protection type: Internal, electronic
Ambient air temperature for operation: 14...131 F (-10...55 C)
Function of module: Emergency stop button with 2 NC contacts
Time delay range: 0...30 s
Ambient air temperature for storage: -13...185 F (-25...85 C)
Safety level: Can reach PL d/category 3 conforming to EN/ISO 13849-1 time delay safety outputs, Can reach PL e/category 4 conforming to EN/ISO 13849-1 instantaneous safety outputs, Can reach SILCL 3 conforming to EN/IEC 62061 instantaneous safety outputs, Can reach SILCL 2 conforming to EN/IEC 62061 time delay safety outputs
Safety reliability data: DC > 99 % conforming to EN/ISO 13849-1 instantaneous safety outputs, MTTFd = 134.8 years conforming to EN/ISO 13849-1 instantaneous safety outputs, MTTFd = 54.5 years conforming to EN/ISO 13849-1 time delay safety outputs, DC > 98.4 conforming to EN/ISO 13849-1 time delay safety outputs, PFHd = 6.81E-9 1/h conforming to EN/IEC 62061 instantaneous safety outputs, PFHd = 1.96E-8 1/h conforming to EN/IEC 62061 time delay safety outputs
Type of start: Configurable
Output thermal current: 2.5 A time delay outputs, 5 A instantaneous outputs
Number of additional circuits: 3 solid state outputs
Minimum output current: 10 mA relay output
Minimum output voltage: 17 V relay output
Response time on input open: <= 20 ms
Local signalling: 4 LEDs
