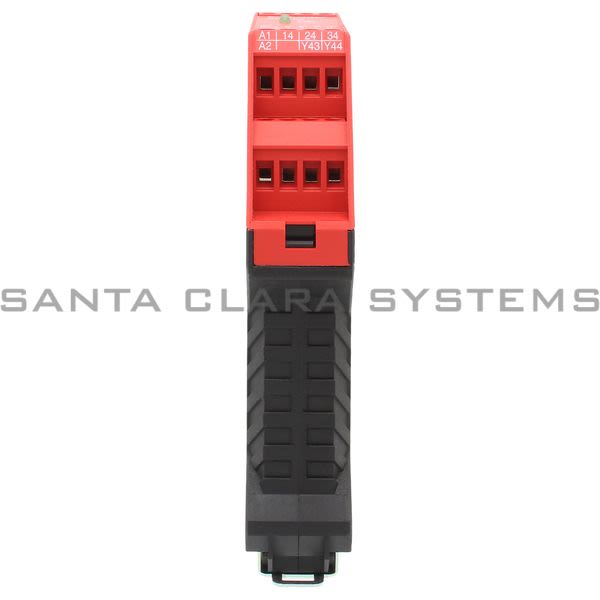

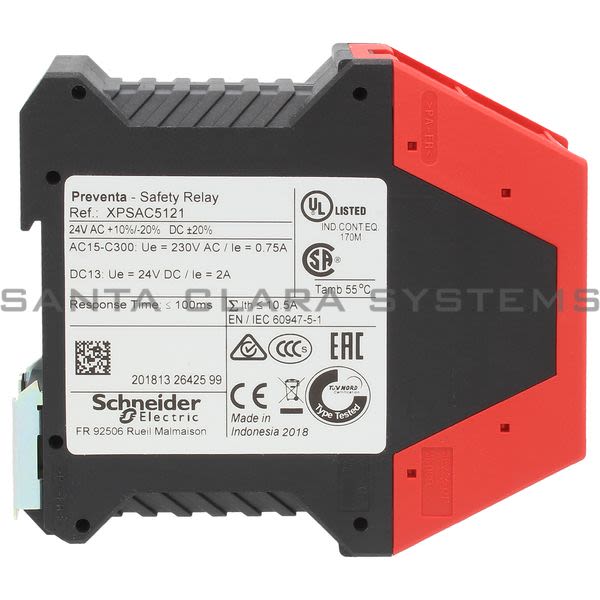

XPSAC5121

Telemecanique - module XPSAC - Emergency stop - 24 V AC DC

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: module XPSAC - Emergency stop - 24 V AC DC
Product weight: 0.35 lb(US) (0.16 kg)
Range of product: Preventa Safety automation
IP degree of protection: IP20 (terminals) conforming to EN/IEC 60529, IP40 (enclosure) conforming to EN/IEC 60529
Standards: EN 60204-1, EN 1088/ISO 14119, EN/IEC 60947-5-1, EN/ISO 13850
[Ui] rated insulation voltage: 300 V (degree of pollution: 2) conforming to DIN VDE 0110 part 1, 300 V (degree of pollution: 2) conforming to IEC 60947-5-1
[Uimp] rated impulse withstand voltage: 4 kV overvoltage category III conforming to IEC 60947-5-1, 4 kV overvoltage category III conforming to DIN VDE 0110 part 1
Connections - terminals: Captive screw clamp terminals, clamping capacity: 1 x 0.25...1 x 2.5 mm flexible cable with cable end, without bezel, Captive screw clamp terminals, clamping capacity: 1 x 0.25...1 x 1.5 mm flexible cable with cable end, with bezel, Captive screw clamp terminals, clamping capacity: 2 x 0.25...2 x 1 mm flexible cable with cable end, without bezel, Captive screw clamp terminals, clamping capacity: 2 x 0.5...2 x 1.5 mm flexible cable with cable end, with double bezel, Captive screw clamp terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm flexible cable without cable end, Captive screw clamp terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm solid cable without cable end, Captive screw clamp terminals, clamping capacity: 2 x 0.14...2 x 0.75 mm flexible cable without cable end, Captive screw clamp terminals, clamping capacity: 2 x 0.14...2 x 0.75 mm solid cable without cable end
Mounting support: 35 mm symmetrical DIN rail
[Ith] conventional free air thermal current: 10.5 A
[Uc] control circuit voltage: 24 V
[Us] rated supply voltage: 24 V AC (- 20...10 %), 24 V DC (- 20...20 %)
Associated fuse rating: 4 A fuse type gG or gL for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200, 6 A fuse type fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
Breaking capacity: 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output
Output type: Relay instantaneous opening 3 NO, volt-free
Supply frequency: 50/60 Hz
Product or component type: Preventa safety module
power consumption in W: <= 1.2 W DC

Product certifications: CSA, UL, TV
Safety module name: XPSAC
power consumption in VA: <= 2.5 VA AC
Safety module application: For emergency stop and switch monitoring
Ambient air temperature for operation: 14...131 F (-10...55 C)
Function of module: Switch monitoring, Emergency stop
Ambient air temperature for storage: -13...185 F (-25...85 C)
Safety level: Can reach PL e/category 4 conforming to EN/ISO 13849-1, Can reach SILCL 3 conforming to EN/IEC 62061
Safety reliability data: DC > 99 % conforming to EN/ISO 13849-1, MTTFd = 210.4 years conforming to EN/ISO 13849-1, PFHd = 3.56E-9 1/h conforming to EN/IEC 62061
Output thermal current: 6 A per relay relay output
Type of start: Unmonitored
Minimum output current: 10 mA relay output
Number of additional circuits: 1 solid state output
Minimum output voltage: 16 V for relay output
Response time on input open: <= 100 ms
Local signalling: 2 LEDs
Current consumption: 40 mA at 24 V DC (on power supply), 90 mA at 24 V AC (on power supply)
