XMLB010A2S11

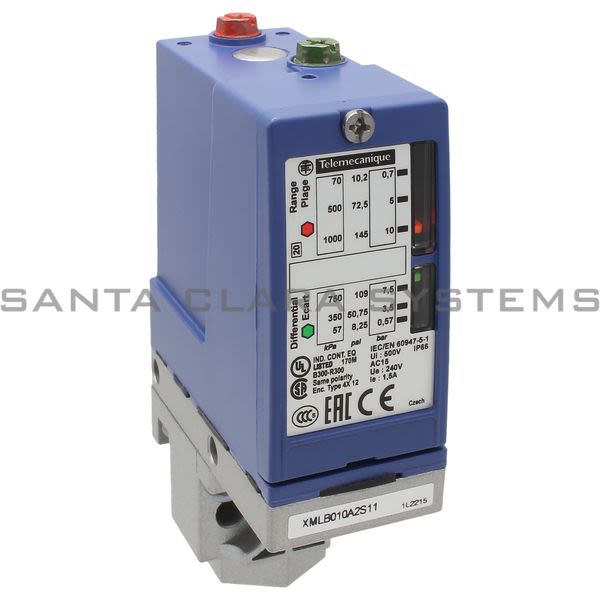

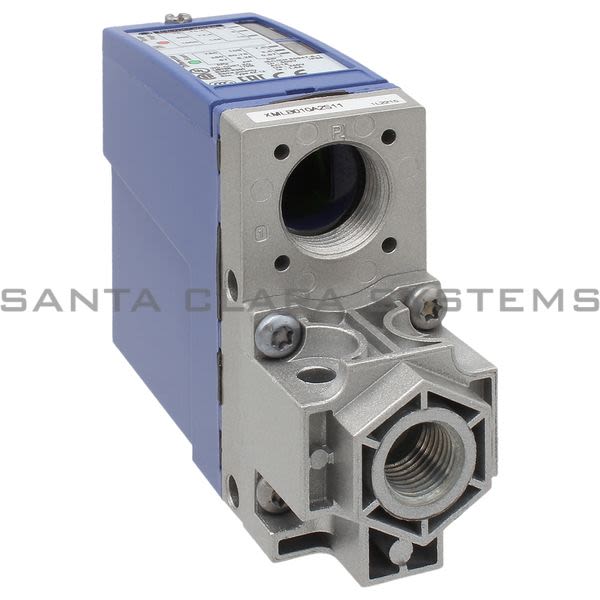

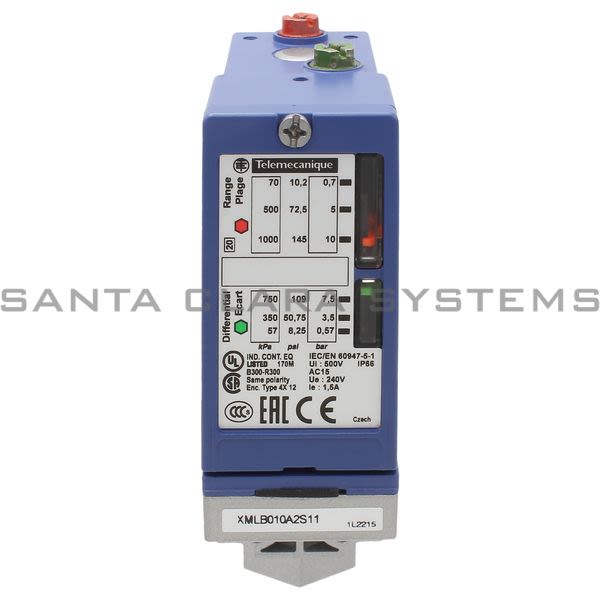

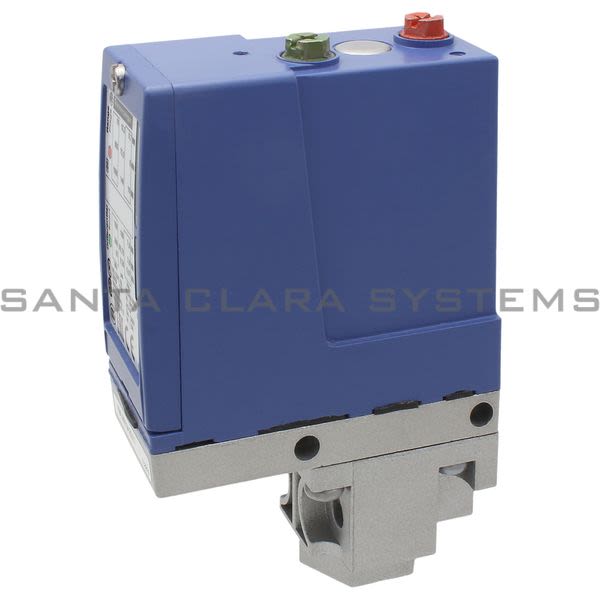

Telemecanique - pressure switch XMLB 10 bar - adjustable scale 2 thresholds - 1 C/O

Current response time:

6 Minutes 27 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: pressure switch XMLB 10 bar - adjustable scale 2 thresholds - 1 C/O
Product weight: 1.55 lb(US) (0.705 kg)
Range of product: OsiSense XM
IP degree of protection: IP66 conforming to EN/IEC 60529
Standards: CE, EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508
Device short name: XMLB
Width: 1.38 in (35 mm)
Height: 4.45 in (113 mm)
Depth: 2.95 in (75 mm)
Protective treatment: TC (standard version)
[Ui] rated insulation voltage: 300 V conforming to CSA C22.2 No 14, 500 V conforming to EN/IEC 60947-1, 300 V conforming to UL 508
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-1
Mechanical durability: 5000000 cycles
Operating rate: 120 cyc/mn at 0...70 C
Vibration resistance: 4 gn (f = 30...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 50 gn conforming to IEC 60068-2-27
Electrical connection: Screw-clamps terminals 1 x 0.5...2 x 2.5 mm, 1 connector Pg 13
Enclosure material: Zinc alloy
Possible differential minimum at low setting: 8.27 psi (0.57 bar) (+/- 0.05 bar)
Product or component type: Electromechanical pressure sensor
Possible differential minimum at high setting: 12.33 psi (0.85 bar) (- 0.1 bar, + 0.15 bar)
Product certifications: UL, BV, CCC, EAC, CSA, LROS (Lloyds register of shipping)
Pressure sensor type: Electromechanical pressure sensor
Maximum permissible pressure - per cycle: 181.3 psi (12.5 bar)
Terminal block type: 4 terminals
Ambient air temperature for operation: -13...158 F (-25...70 C)
Pressure sensor size: 145.04 psi (10 bar)

Ambient air temperature for storage: -40...158 F (-40...70 C)
Controlled fluid: Air (32...158 F (0...70 C)), Fresh water (32...158 F (0...70 C)), Hydraulic oil (32...158 F (0...70 C))
Repeat accuracy: < 2 %
Operating position: Any position
Fluid connection type: G 1/4 (female) conforming to ISO 228
AWG gauge: AWG 20...AWG 14
Auxiliary contacts operation: Snap action
Electrical shock protection class: Class I conforming to IEC 1140, Class I conforming to IEC 536, Class I conforming to NF C 20-030
Cable entry: Cable gland 9...13 mm
Contacts material: Silver contacts
Contacts type and composition: 1 C/O
Resistance across terminals: < 25 mOhm conforming to IEC 255-7 category 3, < 25 mOhm conforming to NF C 93-050 method A
Product specific application: -
Short-circuit protection: 10 A cartridge fuse type gG (gl)
Pressure switch type of operation: Regulation between 2 thresholds
Electrical circuit type: Control circuit
Setting: External
Scale type: Adjustable differential
Local display: With
Adjustable range of switching point on rising pressure: 10.15...145.04 psi (0.7...10 bar)
Adjustable range of switching point on falling pressure: 1.89...132.71 psi (0.13...9.15 bar)
Possible differential maximum at high setting: 108.78 psi (7.5 bar)
Maximum permissible accidental pressure: 326.33 psi (22.5 bar)
Destruction pressure: 652.67 psi (45 bar)
Pressure actuator: Diaphragm
Materials in contact with fluid: Zinc alloy, FPM, FKM
[In] rated current: 3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1, 1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1, 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1
