XMLA002A2S11

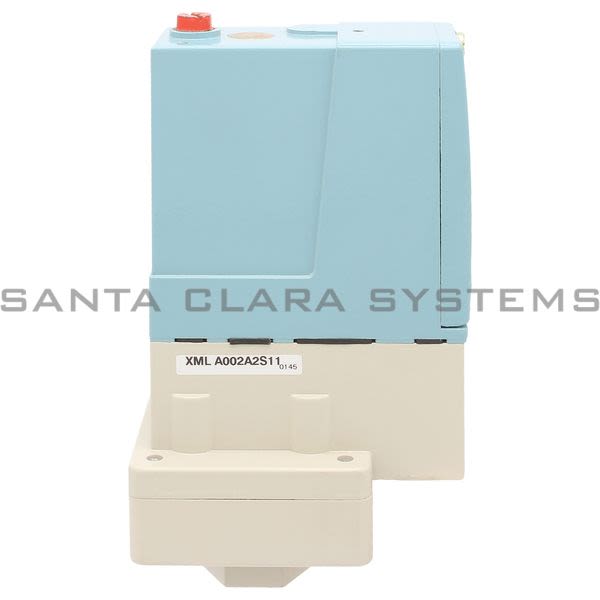

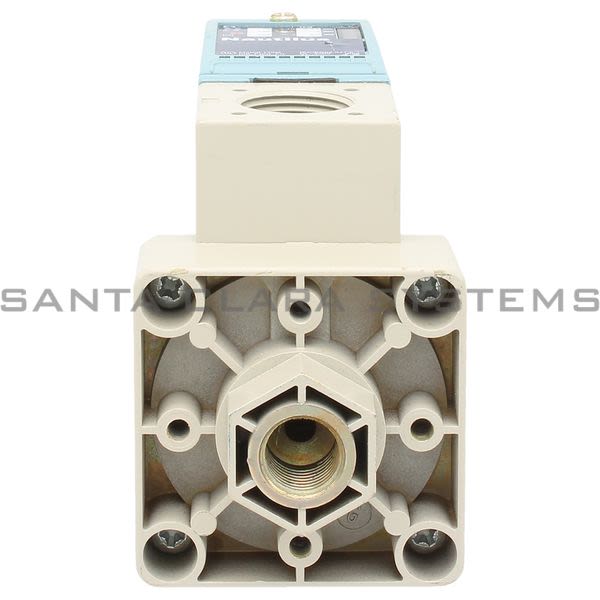

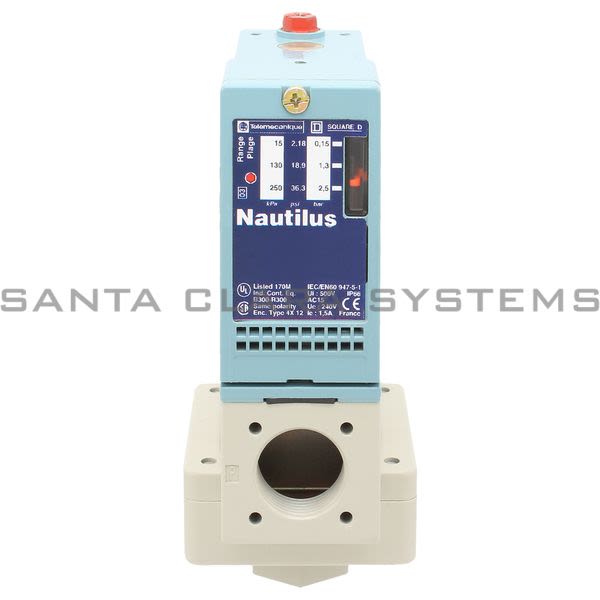

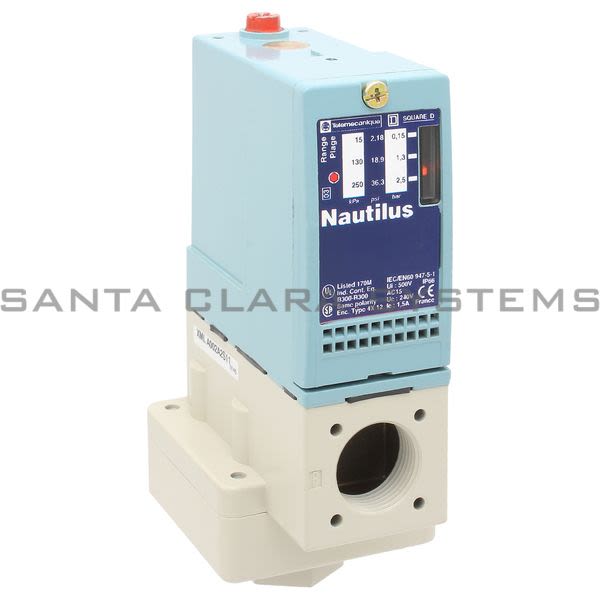

Telemecanique - pressure switch XMLA 2.5 bar - fixed scale 1 threshold - 1 C/O

Current response time:

7 Minutes 4 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: pressure switch XMLA 2.5 bar - fixed scale 1 threshold - 1 C/O
Product weight: 2.19 lb(US) (0.995 kg)
Range of product: OsiSense XM
IP degree of protection: IP66 conforming to EN/IEC 60529
Standards: UL 508, CE, CSA C22.2 No 14, EN/IEC 60947-5-1
Device short name: XMLA
Width: 1.38 in (35 mm)
Height: 6.22 in (158 mm)
Depth: 3.05 in (77.5 mm)
Protective treatment: TC (standard version)
[Ui] rated insulation voltage: 300 V conforming to CSA C22.2 No 14, 500 V conforming to EN/IEC 60947-1, 300 V conforming to UL 508
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-1
Mechanical durability: 8000000 cycles
Operating rate: 120 cyc/mn at 0...70 C
Vibration resistance: 4 gn (f = 30...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 50 gn conforming to IEC 60068-2-27
Electrical connection: Screw-clamps terminals 1 x 0.5...2 x 2.5 mm, 1 connector Pg 13
Enclosure material: Zinc alloy
Natural differential at low setting: 1.89 psi (0.13 bar) (+/- 0.03 bar)
Product or component type: Electromechanical pressure sensor
Natural differential at high setting: 1.89 psi (0.13 bar) (+/- 0.03 bar)
Product certifications: BV, CSA, CCC, LROS (Lloyds register of shipping), EAC, UL
Pressure sensor type: Electromechanical pressure sensor
Maximum permissible pressure - per cycle: 72.52 psi (5 bar)
Terminal block type: 4 terminals
Ambient air temperature for operation: -13...158 F (-25...70 C)
Pressure sensor size: 36.26 psi (2.5 bar)

Ambient air temperature for storage: -40...158 F (-40...70 C)
Controlled fluid: Air (32...158 F (0...70 C)), Fresh water (32...158 F (0...70 C)), Hydraulic oil (32...158 F (0...70 C))
Repeat accuracy: < 2 %
Operating position: Any position
Fluid connection type: G 1/4 (female) conforming to ISO 228
AWG gauge: AWG 20...AWG 14
Auxiliary contacts operation: Snap action
Electrical shock protection class: Class I conforming to IEC 1140, Class I conforming to IEC 536, Class I conforming to NF C 20-030
Cable entry: Cable gland 9...13 mm
Contacts material: Silver contacts
Contacts type and composition: 1 C/O
Resistance across terminals: < 25 mOhm conforming to IEC 255-7 category 3, < 25 mOhm conforming to NF C 93-050 method A
Product specific application: -
Short-circuit protection: 10 A cartridge fuse type gG (gl)
Pressure switch type of operation: Detection of 1 single threshold
Electrical circuit type: Control circuit
Setting: External
Scale type: Fixed differential
Local display: With
Adjustable range of switching point on rising pressure: 2.18...36.26 psi (0.15...2.5 bar)
Adjustable range of switching point on falling pressure: 0.29...34.37 psi (0.02...2.37 bar)
Maximum permissible accidental pressure: 130.53 psi (9 bar)
Destruction pressure: 261.07 psi (18 bar)
Pressure actuator: Diaphragm
Materials in contact with fluid: Zinc alloy, Nitrile
[In] rated current: 3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1, 1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1, 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1
