XDPD1111C1

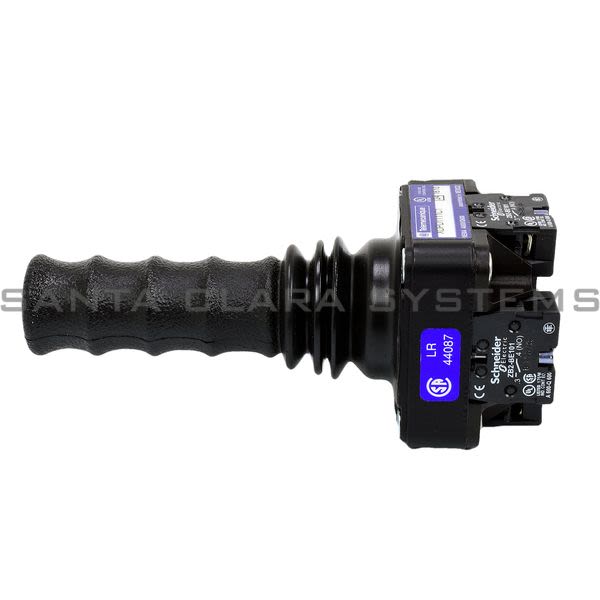

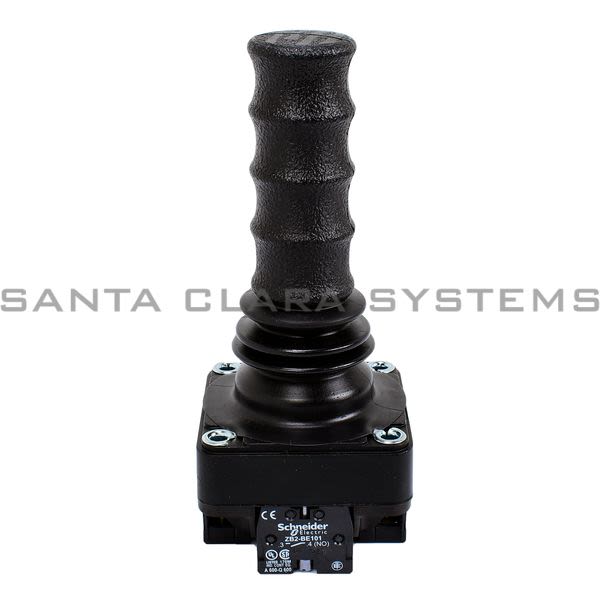

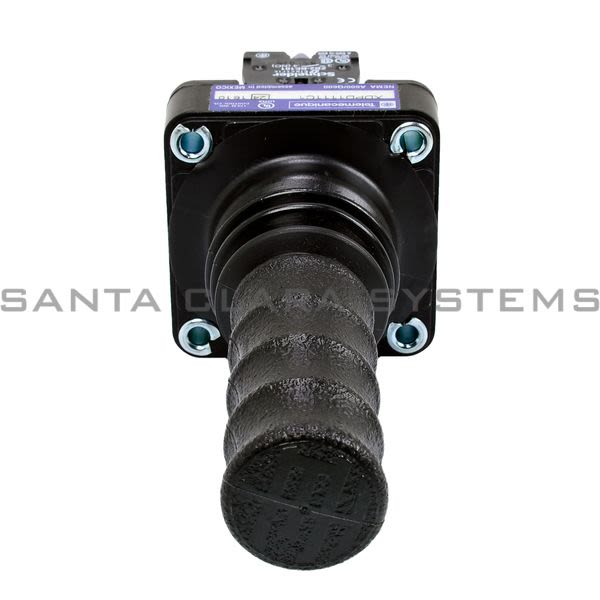

Telemecanique - joystick controller XDP - 8 directions - 1 NO contact per direction

Current response time:

12 Minutes 24 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: joystick controller XDP - 8 directions - 1 NO contact per direction
Product weight: 1.1 lb(US) (0.5 kg)
Range of product: Harmony XK
IP degree of protection: IP65
Standards: EN/IEC 60947-5-1, EN/IEC 60947-5-5, UL 508, CSA C22.2 No 14, JIS C 4520, EN/IEC 60947-5-4, EN/IEC 60947-1
Device short name: XDP
Width: 2.56 in (65 mm)
Height: 158.6 mm
Depth: 1.73 in (44 mm)
Mechanical durability: 1000000 cycles

Bezel material: Plastic
Operator position information: 2 positions
Product or component type: Complete joystick controller
Operator direction information: 1 direction
Ambient air temperature for operation: -40...140 F (-40...60 C)
Contacts type and composition: 8 NO
Mounting diameter: 48 mm
Contacts usage: Standard
Sale per indivisible quantity: 1
Return: Spring return
