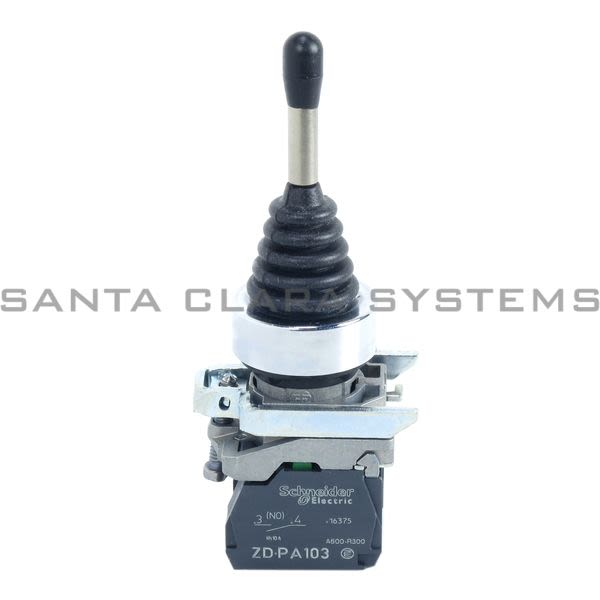

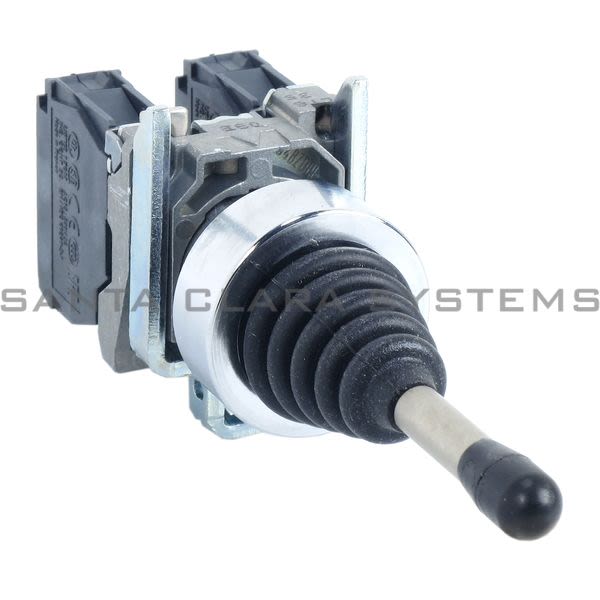

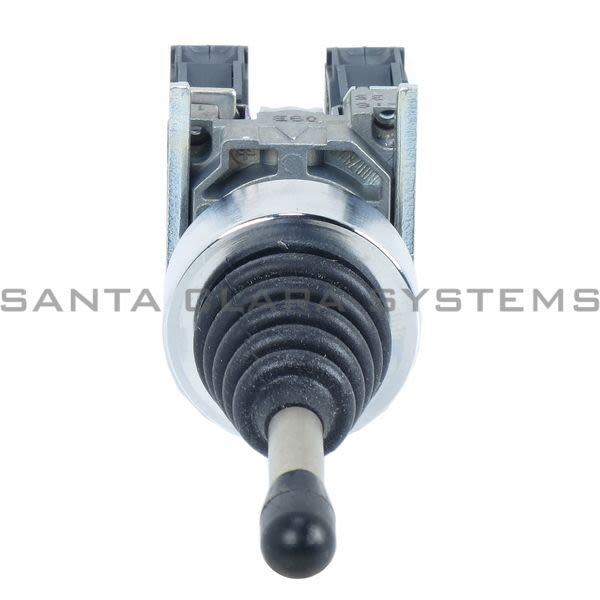

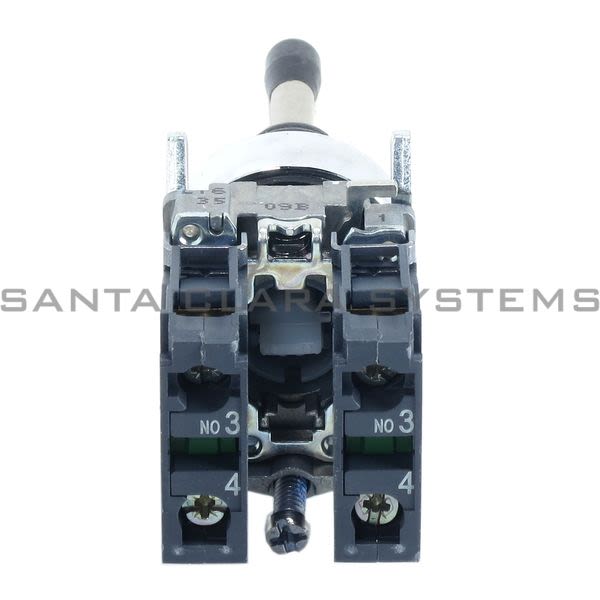

XD4PA22

Telemecanique - joystick controller Ø22 2-direction spring return 1NO per direction

Current response time:

By 5AM PT on Tuesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: joystick controller Ø22 2-direction spring return 1NO per direction
Product weight: 0.26 lb(US) (0.116 kg)
Range of product: Harmony XDA
IP degree of protection: IP66 conforming to IEC 60529
Standards: EN/IEC 60947-5-5, EN/IEC 60947-1, EN/IEC 60947-5-4, UL 508, JIS C 4520, EN/IEC 60947-5-1, CSA C22.2 No 14
Device short name: XD4
Protective treatment: TH
[Ui] rated insulation voltage: 600 V (degree of pollution: 3) conforming to EN 60947-1
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN 60947-1
Mechanical durability: 1000000 cycles
Tightening torque: 7.08...10.62 lbf.in (0.8...1.2 N.m) conforming to EN 60947-1
Connections - terminals: Screw clamp terminals: <= 2 x 1.5 mm with cable end conforming to EN 60947-1, Screw clamp terminals: >= 1 x 0.22 mm without cable end conforming to EN 60947-1
[Ith] conventional free air thermal current: 10 A conforming to EN/IEC 60947-5-1
Vibration resistance: 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27
Electrical durability: 1000000 cycles, AC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
[Ie] rated operational current: 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1, 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1
Bezel material: Chromium plated metal
Fixing collar material: Zamak
Mounting diameter: 0.87 in (22 mm)
Type of operator: Spring return to 0 position, long operating shaft 54 mm length
Operator position information: 3 positions

Operator direction information: 2 directions
Contacts type and composition: 1 NO
Contacts operation: Slow-break
Product or component type: Complete joystick controller
Resistance to high pressure washer: 1015.26 psi (7000000 Pa) at 131 F (55 C),distance: 0.1 m
Ambient air temperature for storage: -40...158 F (-40...70 C)
Shape of signaling unit head: Round
Ambient air temperature for operation: -13...158 F (-25...70 C)
Notch per direction: 1
Electrical shock protection class: Class I conforming to IEC 60536
Contacts usage: Standard
Positive opening: Without
NEMA degree of protection: NEMA 13, NEMA 4X
Sale per indivisible quantity: 1
IK degree of protection: IK03 conforming to IEC 50102
Shape of screw head: Cross head compatible with Philips no 1 screwdriver, Cross head compatible with pozidriv No 1 screwdriver, Slotted head compatible with flat 4 mm screwdriver, Slotted head compatible with flat 5.5 mm screwdriver
Product certifications: BV, GL, RINA, UL listed, LROS (Lloyds register of shipping), DNV, CSA
Contacts material: Silver alloy (Ag/Ni)
Short-circuit protection: 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Contact operation: Slow-break
Electrical reliability: < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4, ? < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4
