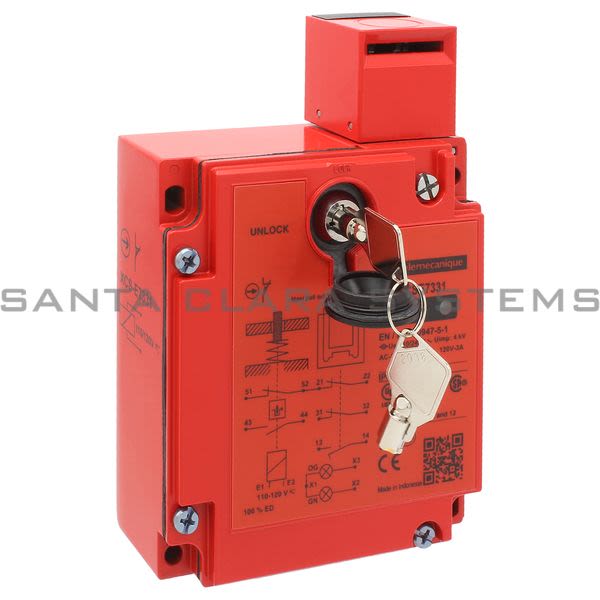

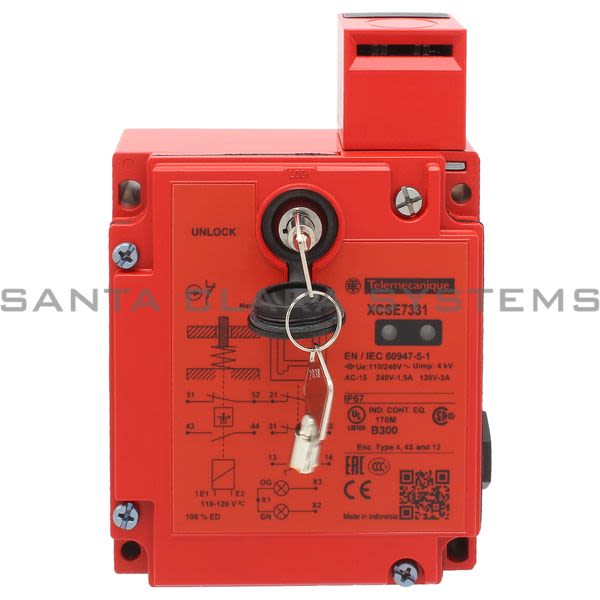

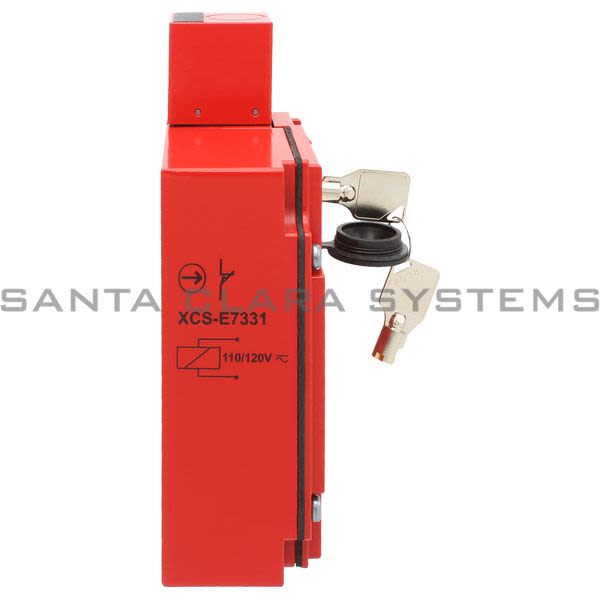

XCSE7331

Telemecanique - metal safety switch XCSE - 2NC+1NO- slow break-2entries tapped Pg 13- 110/120V

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: metal safety switch XCSE - 2NC+1NO- slow break-2entries tapped Pg 13- 110/120V
Product weight: 2.51 lb(US) (1.14 kg)
Range of product: Preventa Safety detection
IP degree of protection: IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Standards: EN/ISO 12100, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60204-1, UL 508, EN 1088/ISO 14119
Width: 3.86 in (98 mm)
Height: 5.75 in (146 mm)
Depth: 1.73 in (44 mm)
Protective treatment: TC
[Ui] rated insulation voltage: 250 V for signalling circuit conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-5-1
Mechanical durability: >= 1000000 cycles
Operating rate: 10 cyc/mn for maximum durability
Vibration resistance: 5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 10 gn 11 ms conforming to IEC 60068-2-27
Electrical connection: Terminal, 1 x 0.5...2 x 1.5 mm with or without cable end
[Ie] rated operational current: 0.55 A at 125 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1, 3 A at 120 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1, 1.5 A at 240 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1
[Us] rated supply voltage: 110/120 V (- 20...10 %)
Protection type: Overvoltage protection signalling circuit
Material: Metal
Number of poles: 3
Head type: Key operated turret head
Positive opening: With NC contact
Product or component type: Safety switch
Supply voltage type: AC/DC
Product certifications: UL, CSA
Component name: XCSE
Supply frequency: 50/60 Hz

Design: Rectangular
Load factor: 1
Ambient air temperature for operation: -13...104 F (-25...40 C)
power consumption in VA: 10 VA (inrush), 10 VA (sealed)
Ambient air temperature for storage: -40...158 F (-40...70 C)
Signalling circuit type: AC
Contacts type and composition: 2 NC + 1 NO
Signalling circuit consumption: 7 mA
Contact operation: Slow-break, break before make
Electrical shock protection class: Class I conforming to EN/IEC 61140
Solenoid contacts type and composition: 1 NC + 1 NO (slow-break, simultaneous)
Minimum actuation speed: 0.03 ft/s (0.01 m/s)

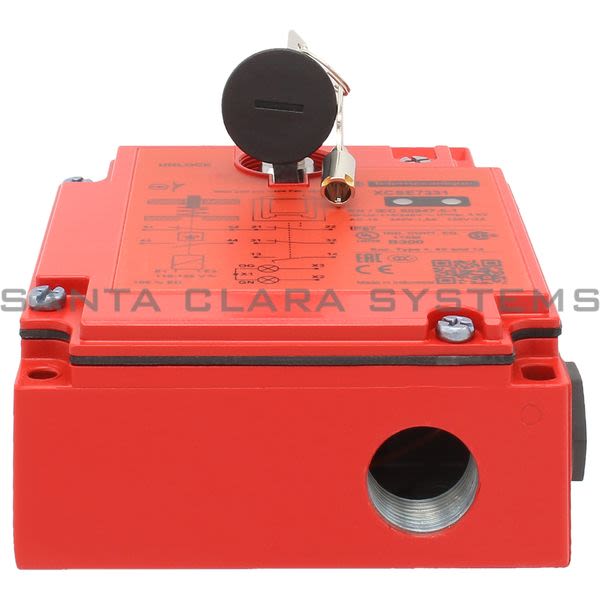

Cable entry: 2 entries tapped Pg 13.5
Maximum actuation speed: 1.64 ft/s (0.5 m/s)
Electromagnet interlocking: Locking on de-energisation and unlocking on energisation of solenoid
[Ithe] conventional enclosed thermal current: 6:00 AM
Cable outer diameter: 0.35...0.47 in (9...12 mm)
Locking options description: With interlocking, locking by solenoid
Short-circuit protection: 10 A cartridge fuse type gG (gl)
Local signalling: 2 LEDs green or orange (guard open/guard closed and locked)
Actuator forcible withdrawal rtc: 2000 N
Signalling circuit voltage: 110/240 V (voltage limits: 95...264 V)
Actuator force for extraction: >= 20 N
Safety level: Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data: B10d = 5000000 (value given for a life time of 20 years limited by mechanical or contact wear)
Body material: Zamak
Head material: Zamak
