XCSDMC5902

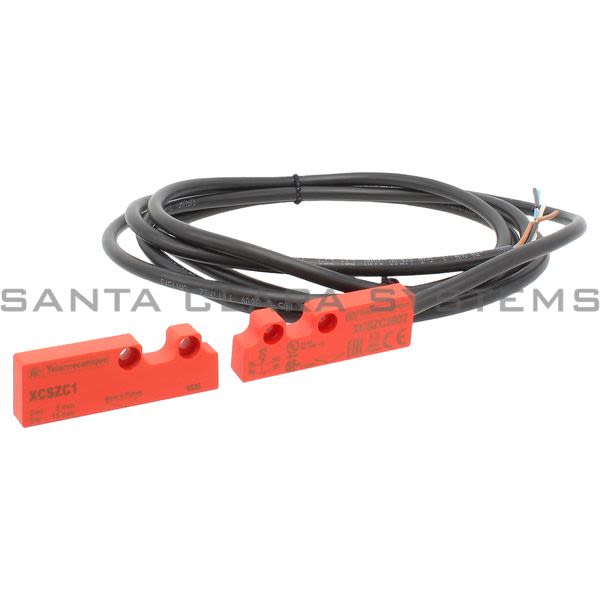

Telemecanique - coded magnetic switch XCSDMC - 1 NC + 1 NO - staggered - 2m

Current response time:

By 5AM PT on Friday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: coded magnetic switch XCSDMC - 1 NC + 1 NO - staggered - 2m
Product weight: 0.22 lb(US) (0.101 kg)
Range of product: Preventa Safety detection
IP degree of protection: IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
Standards: EN/IEC 60947-5-1, CSA C22.2 No 14, ISO 14119, UL 508, EN/ISO 12100, EN 1088, EN/IEC 60204-1
Width: 0.63 in (16 mm)
Height: 2.01 in (51 mm)
Depth: 0.28 in (7 mm)
Protective treatment: TH
[Ui] rated insulation voltage: 100 V DC
[Uimp] rated impulse withstand voltage: 2.5 kV conforming to EN/IEC 60947-5-1
System Voltage: 24 V DC
Vibration resistance: 10 gn (f = 10...150 Hz) conforming to IEC 60068-2-6
Shock resistance: 30 gn 11 ms conforming to IEC 60068-2-27
Electrical durability: 1200000 cycles
Electrical connection: Pre-cabled
Insulation resistance: 1000 MOhm
[Ie] rated operational current: <= 100 mA
Switching frequency: 150 Hz
Material: Plastic
Breaking capacity: <= 10 VA
Number of poles: 2
Enclosure material: Thermoplastic PBT
Cable length: 6.56 ft (2 m)

Size: 51 x 16 x 7 mm
[Sa] assured operating distance: 0.2 in (5 mm)
Product or component type: Coded magnetic switch
[Sar] assured tripping distance: 0.59 in (15 mm)
Product certifications: UL, BG, CSA
Component name: XCSDMC
Design: Rectangular, compact
Ambient air temperature for operation: -13...185 F (-25...85 C)
Resistance across terminals: 10 Ohm
Ambient air temperature for storage: -40...185 F (-40...85 C)
Contacts type and composition: 1 NC + 1 NO
Short-circuit protection: 500 mA external cartridge fuse type gG (gl)
Contact operation: Staggered
Contacts material: Rhodium
Sensitivity to magnetic fields: >= 0.3 mT
Maximum switching voltage: DC
Electrical shock protection class: Class II conforming to EN/IEC 61140

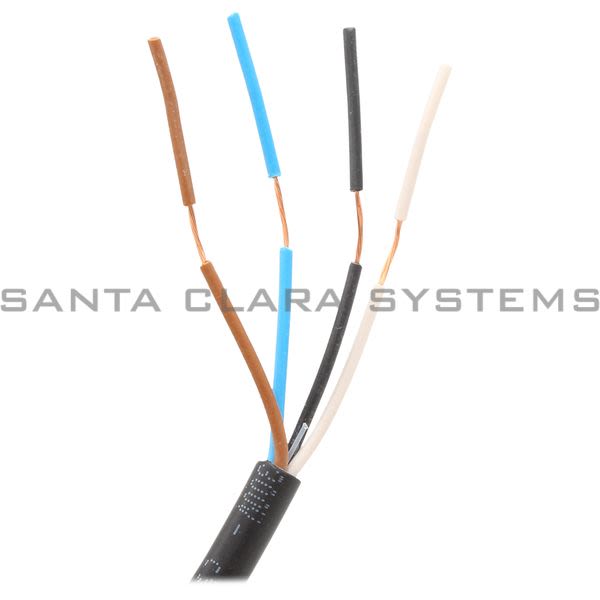

Cable composition: 4 x 0.25 mm
switching capacity in mA: 0.1...100 mA
Approach directions: 3 directions
Safety level: Can reach category 4 (with the appropriate monitoring system and correctly wired) conforming to EN/ISO 13849-1, Can reach PL = e (with the appropriate monitoring system and correctly wired) conforming to EN/ISO 13849-1, Can reach SIL 3 (with the appropriate monitoring system and correctly wired) conforming to EN/IEC 61508
Safety reliability data: B10d = 50000000 (value given for a life time of 20 years limited by mechanical or contact wear)
Cable material: PVC
