XCSA723

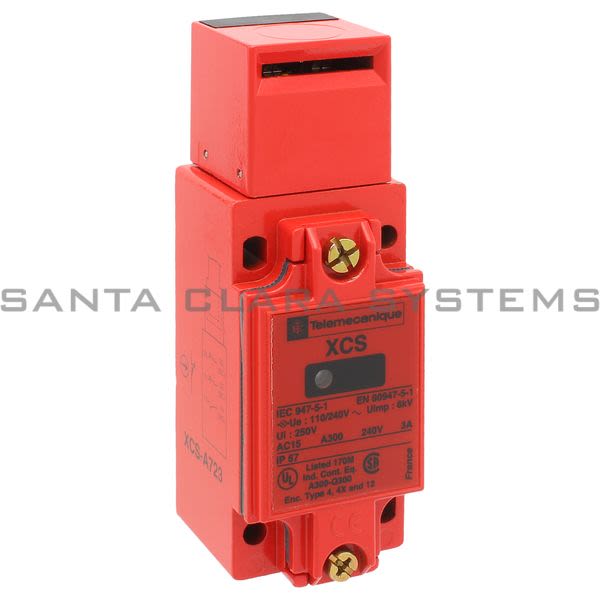

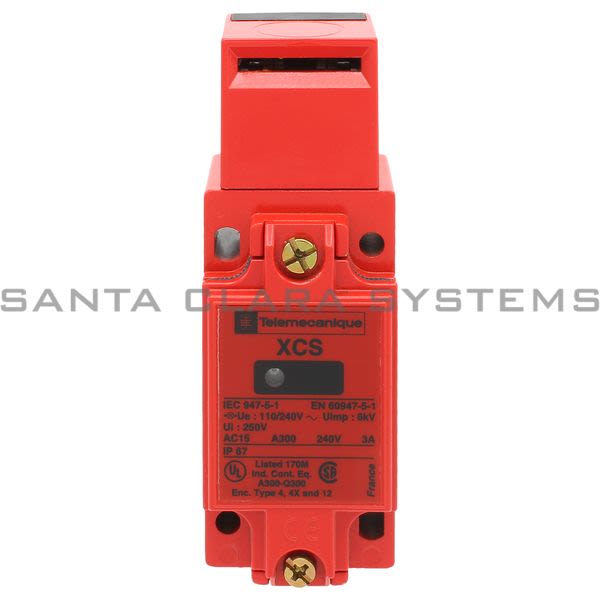

Telemecanique - metal safety switch XCSA - 2 NC + 1 NO - slow break - 1 entry tapped 1/2" NPT

Current response time:

10 Minutes 17 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: metal safety switch XCSA - 2 NC + 1 NO - slow break - 1 entry tapped 1/2" NPT
Product weight: 0.97 lb(US) (0.44 kg)
Range of product: Preventa Safety detection
IP degree of protection: IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Standards: UL 508, EN/IEC 60947-5-1, EN/ISO 12100, EN 1088/ISO 14119, EN/IEC 60204-1, CSA C22.2 No 14
Width: 1.57 in (40 mm)
Height: 4.49 in (114 mm)
Depth: 1.73 in (44 mm)
Protective treatment: TC
[Ui] rated insulation voltage: 300 V conforming to CSA C22.2 No 14, 500 V conforming to EN/IEC 60947-1, 300 V conforming to UL 508
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-5-1
Mechanical durability: >= 1000000 cycles
Operating rate: 10 cyc/mn for maximum durability
Vibration resistance: 5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 10 gn 11 ms conforming to IEC 60068-2-27
Electrical connection: Terminal, 1 x 0.5...2 x 1.5 mm with or without cable end
[Ie] rated operational current: 6 A at 120 V utilisation category AC-15, A300 conforming to EN/IEC 60947-5-1, 3 A at 240 V utilisation category AC-15, A300 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1
Material: Metal
Number of poles: 3
Head type: Key operated turret head
Positive opening: With NC contact
Product or component type: Safety switch

Signalling circuit type: AC
Product certifications: UL, CSA
Component name: XCSA
Design: Industrial
Minimum actuation speed: 0.03 ft/s (0.01 m/s)
Ambient air temperature for operation: -13...158 F (-25...70 C)
Maximum actuation speed: 1.64 ft/s (0.5 m/s)
Ambient air temperature for storage: -40...158 F (-40...70 C)

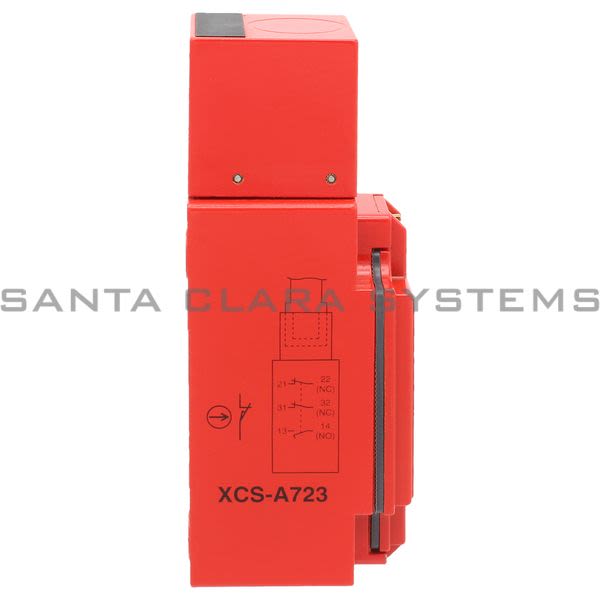

Contacts type and composition: 2 NC + 1 NO
[Ithe] conventional enclosed thermal current: 10:00 AM
Contact operation: Slow-break, break before make
Electrical shock protection class: Class I conforming to EN/IEC 61140

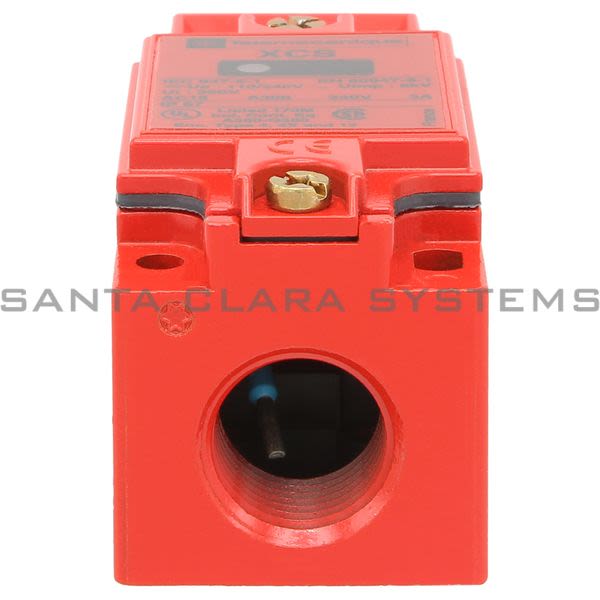

Cable entry: 1 entry tapped 1/2" NPT
Short-circuit protection: 10 A cartridge fuse type gG (gl)
Actuator force for extraction: >= 20 N
Locking options description: Without locking of actuator
Local signalling: 1 LED orange (on opening of NC contacts)
Safety level: Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Signalling circuit voltage: 110/240 V
Safety reliability data: B10d = 5000000 (value given for a life time of 20 years limited by mechanical or contact wear)
Body material: Zamak
Head material: Zamak
