XCRA11

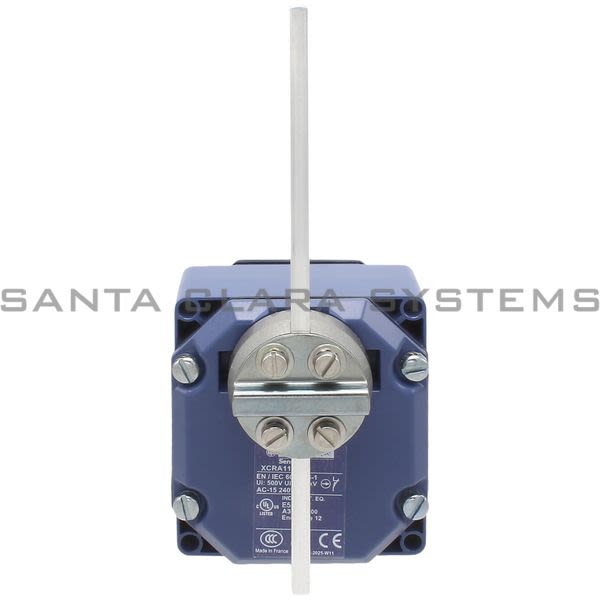

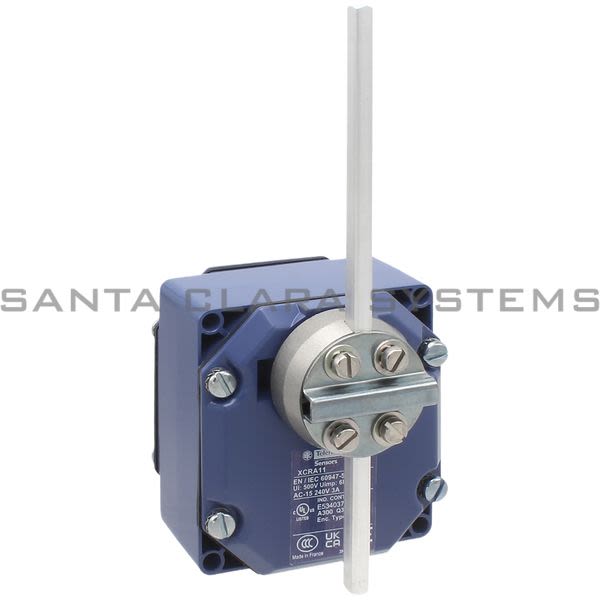

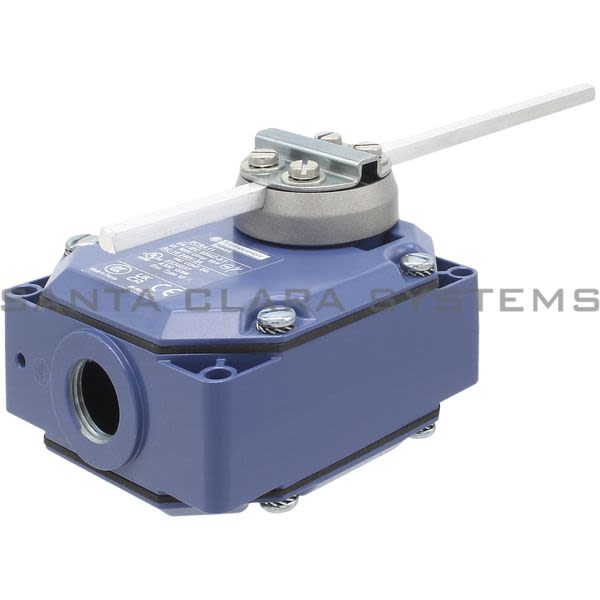

Telemecanique - limit switch XCR - metal spring return rod lever square rod 6 mm - 2X(1NC+NO)

Current response time:

10 Minutes 45 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: limit switch XCR - metal spring return rod lever square rod 6 mm - 2X(1NC+NO)
Product weight: 2.45 lb(US) (1.11 kg)
Range of product: OsiSense XC
IP degree of protection: IP54 conforming to IEC 60529
Standards: NF C 79-130, EN 60947-5-1, EN 60204-1, IEC 60204-1, IEC 60947-5-1, CSA C22.2 No 14
Device short name: XCR
Width: 3.35 in (85 mm)
Height: 3.74 in (95 mm)
Depth: 2.95 in (75 mm)
Protective treatment: TC
[Ui] rated insulation voltage: 300 V conforming to CSA C22.2 No 14, 500 V degree of pollution 3 conforming to IEC 60947-1, 500 V degree of pollution 3 conforming to VDE 0110, 300 V conforming to UL 508
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60664, 6 kV conforming to IEC 60947-1
Mechanical durability: 10000000 cycles
Shock resistance: 68 gn conforming to IEC 60068-2-27
Vibration resistance: 9 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
Electrical durability: 5000000 cycles, DC-13 inductive load type, 120 V, 4 W, load factor: 0.5, operating rate: <= 60 cyc/mn IEC 60947-5-1 appendix C, 5000000 cycles, DC-13 inductive load type, 24 V, 7 W, load factor: 0.5, operating rate: <= 60 cyc/mn IEC 60947-5-1 appendix C, 5000000 cycles, DC-13 inductive load type, 48 V, 10 W, load factor: 0.5, operating rate: <= 60 cyc/mn IEC 60947-5-1 appendix C
Electrical connection: Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm
Overvoltage category: Class I conforming to NF C 20-030, Class I conforming to IEC 61140
Material: Metal
Number of poles: 4
Head type: Rotary head
Body material: Zinc alloy
Series name: Special format
Switch actuation: By any moving part
Product or component type: Limit switch
Cable entry: 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 0.35...0.47 in (9...12 mm) conforming to NF C 68-300

Product specific application: For hoisting and mechanical handling applications
Contacts insulation form: Zb
Number of steps: 1
Ambient air temperature for operation: -13...158 F (-25...70 C)
Sensor design: -
Positive opening minimum torque: 6.64 lbf.in (0.75 N.m)
Ambient air temperature for storage: -40...158 F (-40...70 C)
Body type: Fixed
Minimum torque for tripping: 3.98 lbf.in (0.45 N.m)
Minimum actuation speed: 0.01 m/min
Product certifications: CSA, CCC
Maximum actuation speed: 4.92 ft/s (1.5 m/s)
Fixing mode: By the body
Maximum displacement angle: 55 , -55
Movement of operating head: Rotary
Contact code designation: A300, AC-15 240 V, Ie = 3 A) conforming to EN/IEC 60947-5-1 appendix A, Q300, DC-13 250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1 appendix A
Type of operator: Metal spring return rod lever (square rod 6 mm)
Type of approach: 2 directions lateral approach
Resistance across terminals: <= 25 MOhm conforming to IEC 60255-7 category 3
Short-circuit protection: 10 A by gG cartridge fuse
Contacts type and composition: 2 x (1 NC + 1 NO)
Contact operation: Snap action
Contact block per direction [control circuit]: 2 per direction
Positive opening: With
terminals description ISO n1: (13-14)NO, (21-22)NC
