XCKMR54D1H29

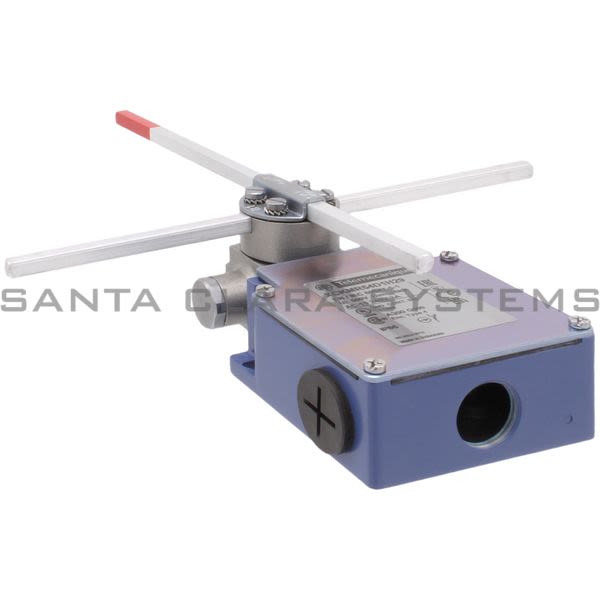

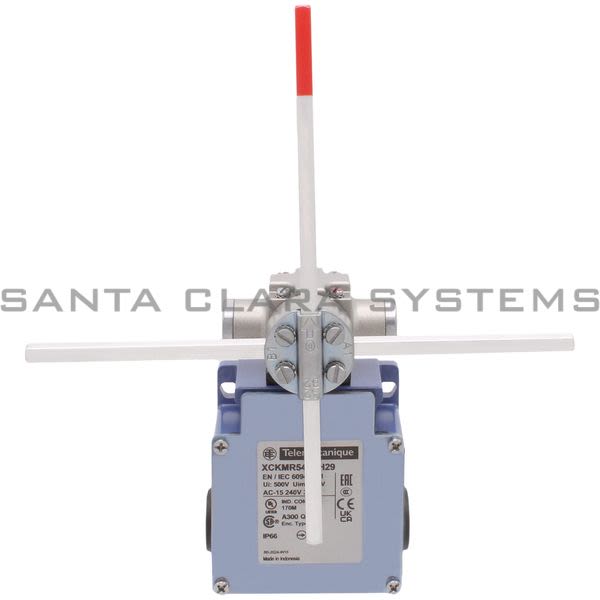

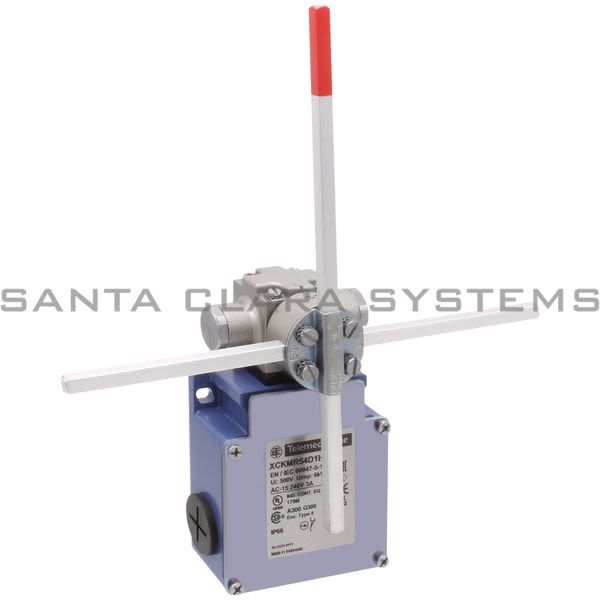

Telemecanique - limit switch XCKMR - stay put crossed rods lever 6mm - 2x(2 NC) - slow - M20

Current response time:

19 Minutes 11 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: limit switch XCKMR - stay put crossed rods lever 6mm - 2x(2 NC) - slow - M20
Product weight: 1.21 lb(US) (0.55 kg)
Range of product: OsiSense XC
IP degree of protection: IP66 conforming to EN/IEC 60529
Standards: CSA C22.2 No 14, UL 508, EN/IEC 60947-5-1
Device short name: XCKMR
Width: 7.87 in (200 mm)
Height: 4.65 in (118 mm)
Depth: 2.32 in (59 mm)
Protective treatment: TC
[Ui] rated insulation voltage: 300 V conforming to CSA C22.2 No 14, 300 V conforming to UL 508, 500 V degree of pollution 3 conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-1, 6 kV conforming to IEC 60664
Mechanical durability: 2000000 cycles
Shock resistance: 50 gn conforming to EN/IEC 60068-2-27
Vibration resistance: 25 gn (f = 10...500 Hz) conforming to EN/IEC 60068-2-6
Electrical connection: Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm
Material: Metal
Number of poles: 4
Head type: Rotary head
Switch actuation: By any moving part
Series name: Special format
Product or component type: Limit switch
Contacts insulation form: Zb
Product specific application: For hoisting and mechanical handling applications
Number of steps: 5 electrical positions
IK degree of protection: IK07 conforming to EN 50102

Contact block per direction [control circuit]: 1 per direction
Electrical shock protection class: Class I conforming to IEC 60536
Body type: Fixed
Positive opening: With
Ambient air temperature for operation: -13...158 F (-25...70 C)
Positive opening minimum torque: 6.64 lbf.in (0.75 N.m)
Ambient air temperature for storage: -40...185 F (-40...85 C)
Minimum torque for tripping: 4.42 lbf.in (0.5 N.m)
Body material: Zamak
Minimum actuation speed: 6 m/min
Product certifications: UL, CCC, CE, CSA
Head material: Zamak
Maximum actuation speed: 4.92 ft/s (1.5 m/s) actuation point on the rod between 65 and 95 mm
Fixing mode: By the body
Maximum displacement angle: 180 , -180
Movement of operating head: Rotary
Contact code designation: A300, AC-15 (Ue = 240 V, Ie = 3 A) , Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A, Q150, DC-13 (Ue = 125 V, Ie = 0.55 A) conforming to EN/IEC 60947-5-1 appendix A
Type of operator: Stay put crossed rods lever metal (square rod 6 mm, L = 200 mm)
Type of approach: Lateral approach 2 directions
Resistance across terminals: <= 25 MOhm conforming to IEC 60255-7 category 3
Cable entry: 3 entries tapped for M20 x 1.5 cable gland, cable outer diameter: 0.28...0.51 in (7...13 mm)
Short-circuit protection: 10 A by gG cartridge fuse
Contacts type and composition: 2 x (2 NC)
Contact operation: Slow-break, staggered
terminals description ISO n1: (11-12)NC, (21-22)NC
