XCKM121H29

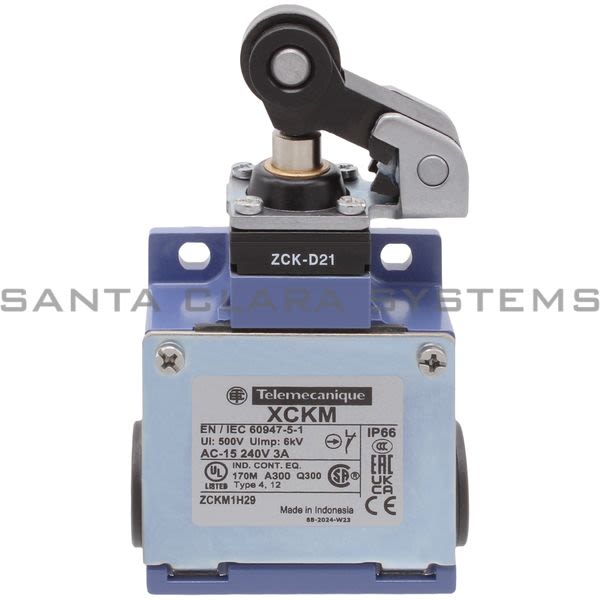

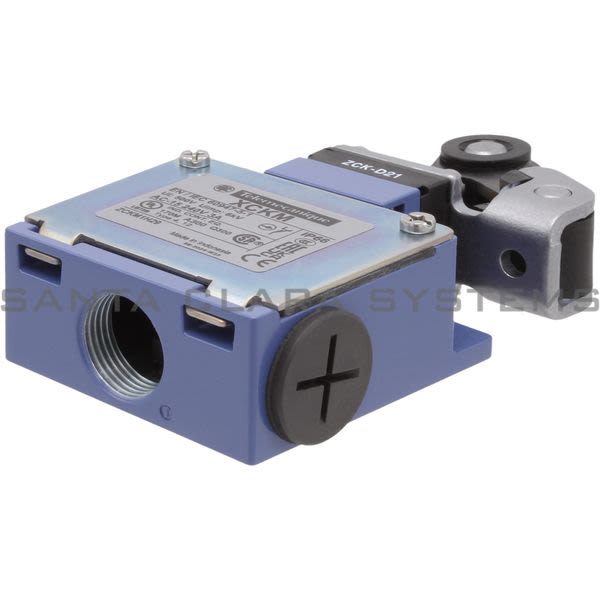

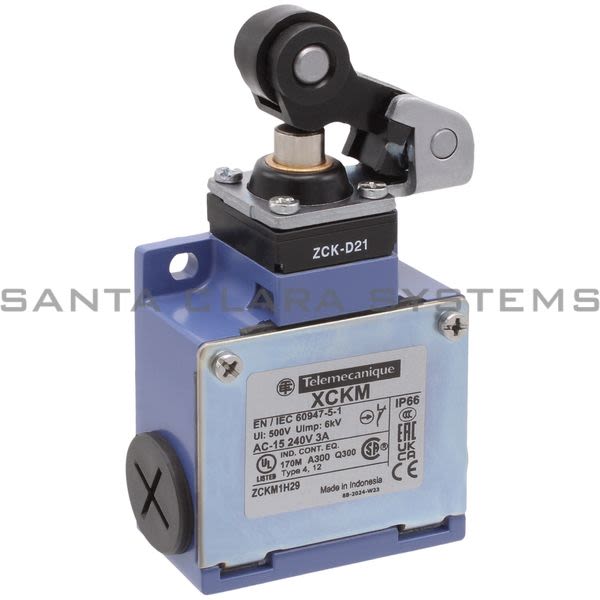

Telemecanique - limit switch XCKM - thermoplastic roller lever plunger - 1NC+1NO - snap - M20

Current response time:

13 Minutes 8 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: limit switch XCKM - thermoplastic roller lever plunger - 1NC+1NO - snap - M20
Product weight: 0.66 lb(US) (0.3 kg)
Range of product: OsiSense XC
IP degree of protection: IP66 conforming to EN/IEC 60529
Standards: IEC 60947-5-1, EN 60204-1, EN 60947-5-1, UL 508, CSA C22.2 No 14, IEC 60204-1
Device short name: XCKM
Width: 2.52 in (64 mm)
Height: 2.52 in (64 mm)
Depth: 1.18 in (30 mm)
Protective treatment: TC
[Ui] rated insulation voltage: 300 V conforming to CSA C22.2 No 14, 500 V degree of pollution 3 conforming to IEC 60947-1, 300 V conforming to UL 508
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60664, 6 kV conforming to IEC 60947-1
Mechanical durability: 20000000 cycles
Shock resistance: 50 gn (duration = 11 ms) conforming to EN/IEC 60068-2-27
Vibration resistance: 25 gn (f = 10...500 Hz) conforming to EN/IEC 60068-2-6
Electrical durability: 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive load type, 24 V, 7 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive load type, 48 V, 10 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Electrical connection: Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm
Material: Metal
Number of poles: 2
Head type: Plunger head
Switch actuation: By 30 cam
Series name: Standard format
Product or component type: Limit switch
Contacts insulation form: Zb
Number of steps: 1

IK degree of protection: IK05 conforming to EN 50102
Body type: Fixed
Positive opening: With
Electrical shock protection class: Class I conforming to IEC 61140, Class I conforming to NF C 20-030
Positive opening minimum force: 24 N
Ambient air temperature for operation: -13...158 F (-25...70 C)
Minimum force for tripping: 8 N
Ambient air temperature for storage: -40...158 F (-40...70 C)
Body material: Zamak
Minimum actuation speed: 0.01 m/min
Fixing mode: By the body
Maximum actuation speed: 4.92 ft/s (1.5 m/s)
Product certifications: CSA, UL, CCC
Movement of operating head: Linear
Contact code designation: A300, AC-15 (Ue = 240 V, Ie = 3 A) conforming to EN/IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1 appendix A
Type of operator: Spring return roller lever plunger thermoplastic
[Ithe] conventional enclosed thermal current: 10 A AC
Type of approach: Lateral approach 1 direction
Cable entry: 3 entries tapped for M20 x 1.5 cable gland, cable outer diameter: 0.28...0.51 in (7...13 mm)
Resistance across terminals: <= 25 MOhm conforming to IEC 60255-7 category 3
Contacts type and composition: 1 NC + 1 NO
Short-circuit protection: 10 A by gG cartridge fuse
Contact operation: Snap action
terminals description ISO n1: (13-14)NO, (21-22)NC
