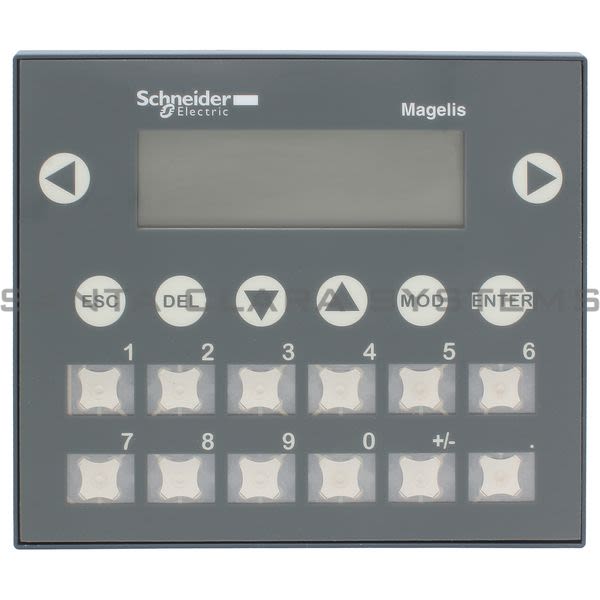

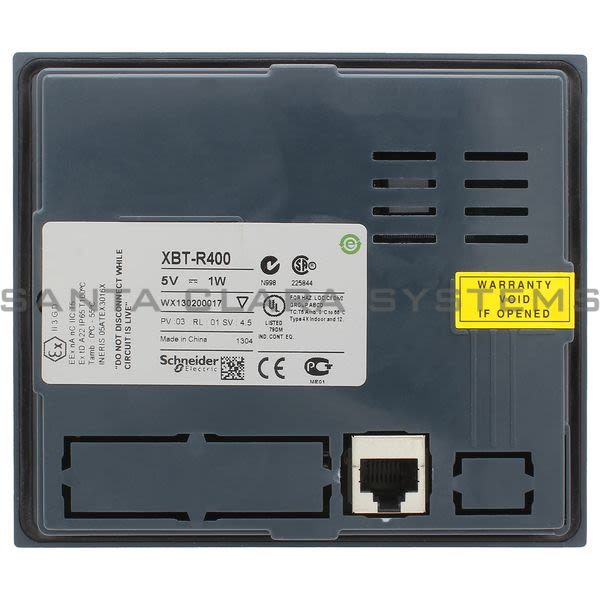

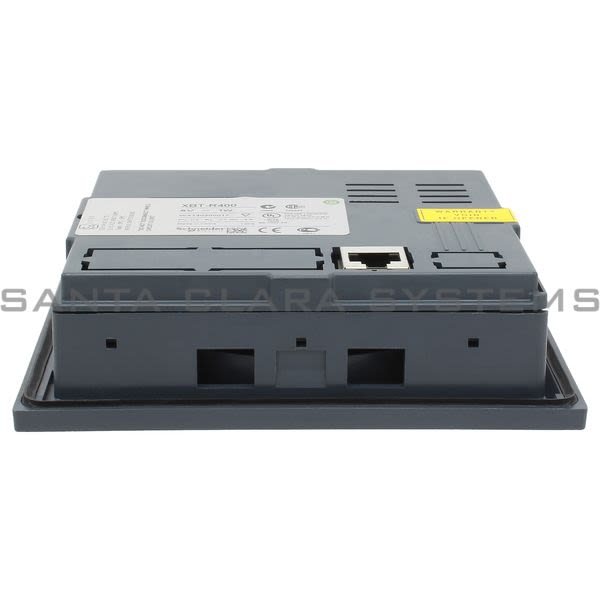

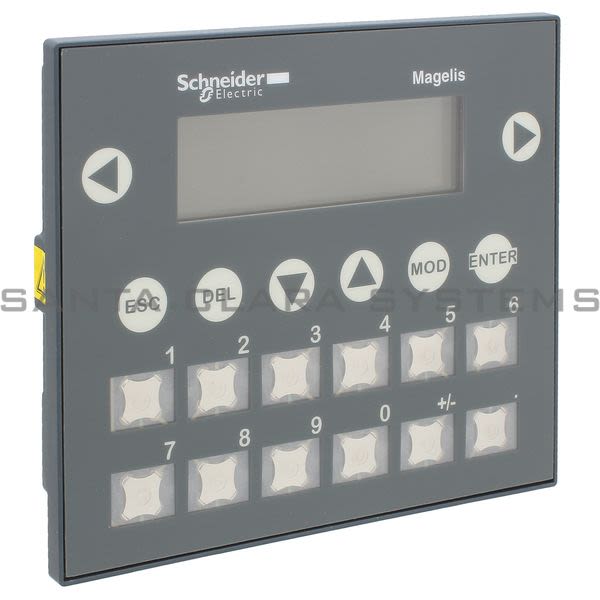

Telemecanique XBTR400 small panel with keypad - matrix screen - green - 122 x 32 pixels - 5 V DC Product Image

XBTR400

Telemecanique - small panel with keypad - matrix screen - green - 122 x 32 pixels - 5 V DC

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: small panel with keypad - matrix screen - green - 122 x 32 pixels - 5 V DC
Product weight: 1.21 lb(US) (0.55 kg)
Range of product: Magelis XBTR
IP degree of protection: IP20 (rear panel) conforming to IEC 60529, IP65 (front panel) conforming to IEC 60529
Standards: IEC 61131-2, UL 508, IEC 60068-2-27, CSA C22.2 No 14, IEC 60068-2-6
Width: 5.39 in (137 mm)
Height: 4.65 in (118 mm)
Depth: 3.07 in (78 mm)
Shock resistance: 15 gn 11 ms
Vibration resistance: +/- 3.5 mm (f = 2...8.45 Hz), 1 gn (f = 8.45...150 Hz)
[Us] rated supply voltage: 5 V DC
Relative humidity: 0...85 % without condensation
Display type: Matrix backlit LCD
Product or component type: Small panel with keypad
Display resolution: 122 x 32 pixels
Character font: Cyrillic, Greek, Chinese (simplified Chinese), Katakana, Latin
Display colour: Green
Software type: Configuration software
Number of key: 20
Messages display capacity: 4 lines of 20 characters maximum, 1 line of 5 characters minimum
Software designation: Vijeo Designer Lite
Number of fixed keys: 8

Operating system: Windows
Number of customisable keys: 12
Supply: From PLC (terminal port)
Number of pages: 256 alarm pages, 200 application pages
Downloadable protocols: Modbus, Uni-TE
Memory type: Flash
Memory capacity: 512 kB
Product certifications: ATEX zone 2/22, CSA Class 1 Division 2, UL 1604, UL Class 1 Division 2
Integrated connection type: Serial link : female RJ45, asynchronous transmission mode (RS232C/RS485) point-to-point topology
Ambient air temperature for operation: 32...131 F (0...55 C)
Realtime clock: Access to the PLC real-time clock
Ambient air temperature for storage: -4...140 F (-20...60 C)
Range compatibility: Modicon Premium, Modicon M340, Modicon TSX Micro, Twido
Product mounting: Flush mounting
Fixing mode: By 4 spring clips
NEMA degree of protection: NEMA 4X (front panel) outdoor use
Display material: Polyester
Front material: PPT
Keypad material: Polyester
Marking: CE
Cut-out dimensions: 119.6 (+/- 0.5) x 105.2 (+/- 0.4) mm
