XB4BW3335

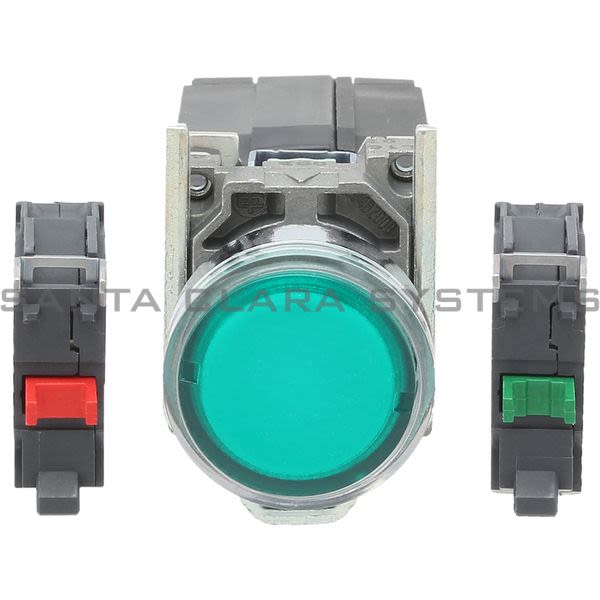

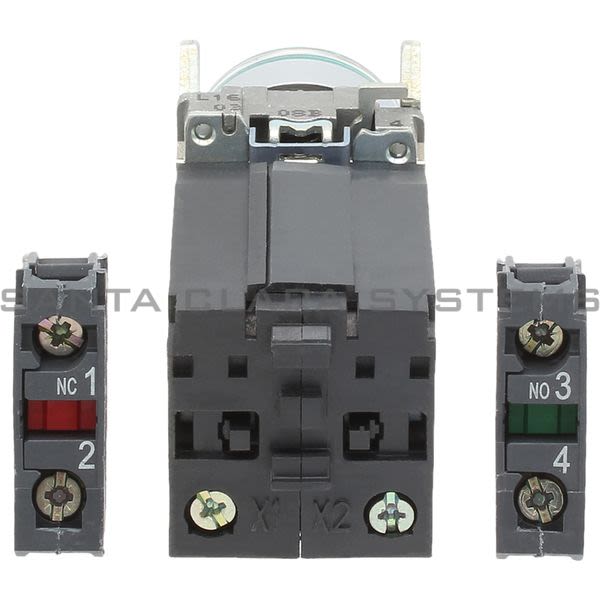

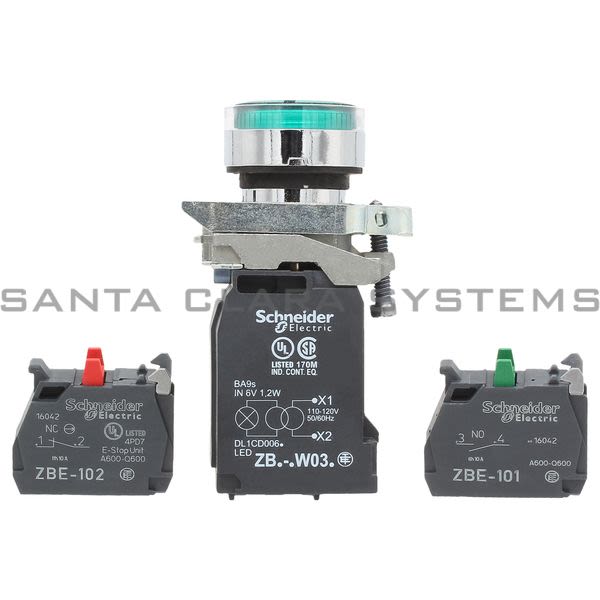

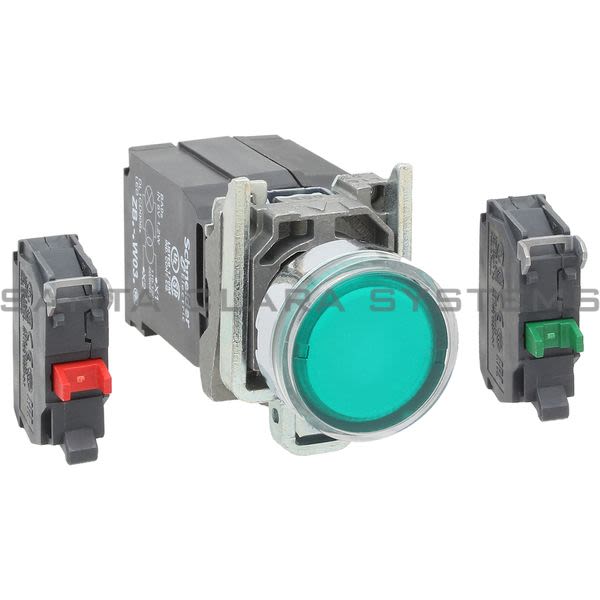

Telemecanique - green flush complete illum pushbutton Ø22 spring return 1NO+1NC 110...120V

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: green flush complete illum pushbutton Ø22 spring return 1NO+1NC 110...120V
Product weight: 0.37 lb(US) (0.169 kg)
Range of product: Harmony XB4
IP degree of protection: IP69, IP67, IP66 conforming to IEC 60529, IP69K
Standards: CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, UL 508, JIS C 4520
Device short name: XB4
Width: 1.18 in (30 mm)
Height: 1.85 in (47 mm)
Depth: 3.98 in (101 mm)
Protective treatment: TH
[Ui] rated insulation voltage: 600 V (degree of pollution: 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-1
Mechanical durability: 10000000 cycles
Tightening torque: 7.08...10.62 lbf.in (0.8...1.2 N.m) conforming to EN 60947-1
Connections - terminals: Screw clamp terminals: <= 2 x 1.5 mm with cable end conforming to EN/IEC 60947-1, Screw clamp terminals: 1 x 0.22...2 x 2.5 mm without cable end conforming to EN/IEC 60947-1
[Ith] conventional free air thermal current: 10 A conforming to EN/IEC 60947-5-1
Vibration resistance: 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27
Electrical durability: 1000000 cycles, AC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
[Ie] rated operational current: 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
Bezel material: Chromium plated metal
Light source: Incandescent
Product or component type: Complete illuminated push-button
Ambient air temperature for storage: -40...158 F (-40...70 C)
Ambient air temperature for operation: -40...131 F (-40...55 C)
terminals description ISO n1: (13-14)NO, (21-22)NC

Electrical shock protection class: Class I conforming to IEC 60536
Fixing collar material: Zamak
Mounting diameter: 0.87 in (22 mm)
Resistance to high pressure washer: 1015.26 psi (7000000 Pa) at 131 F (55 C),distance: 0.1 m
NEMA degree of protection: NEMA 13, NEMA 4X
Sale per indivisible quantity: 1
Contacts usage: Standard contacts
IK degree of protection: IK06 conforming to IEC 50102
Shape of signaling unit head: Round
Positive opening: With positive opening conforming to EN/IEC 60947-5-1 appendix K
Type of operator: Spring return
Operating travel: 0.06 in (1.5 mm) (NC changing electrical state), 0.1 in (2.6 mm) (NO changing electrical state), 0.17 in (4.3 mm) (total travel)
Product certifications: GL, LROS (Lloyds register of shipping), RINA, DNV, BV, CSA, UL listed
Operator profile: Green flush
Operating force: 3.5 N (NC changing electrical state), 3.8 N
Operator additional information: With plain lens
Contacts type and composition: 1 NO + 1 NC
Contact operation: Slow-break
Shape of screw head: Cross head compatible with Philips no 1 screwdriver, Cross head compatible with pozidriv No 1 screwdriver, Slotted head compatible with flat 4 mm screwdriver, Slotted head compatible with flat 5.5 mm screwdriver
Contacts material: Silver alloy (Ag/Ni)
Short-circuit protection: 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Bulb base: BA 9s
Light block supply: Via integral transformer, 1.2 VA - 6 V
Electrical reliability: < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4, ? < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4
Signalling type: Steady
