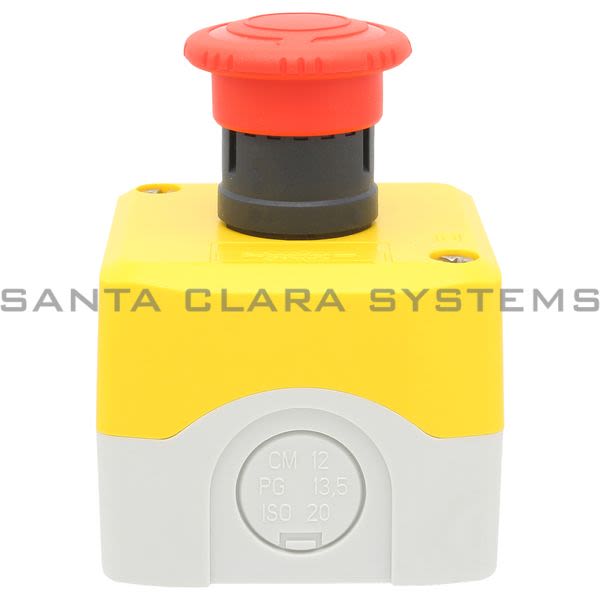

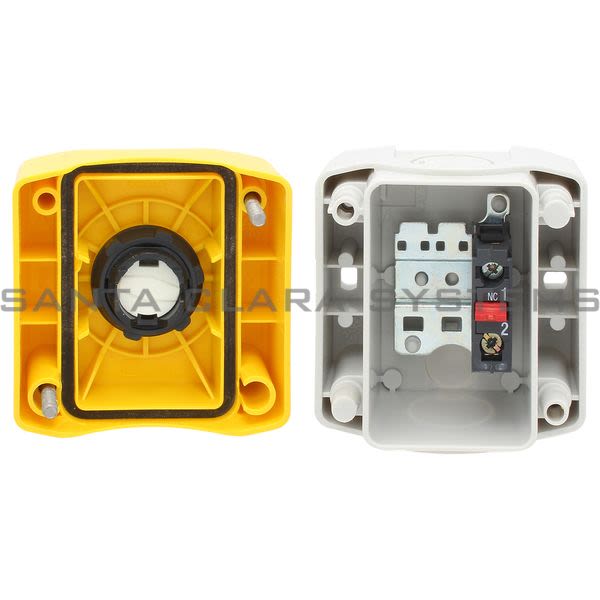

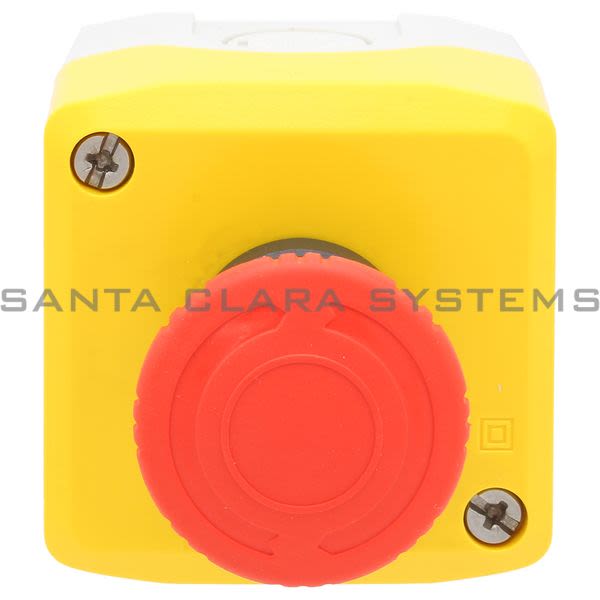

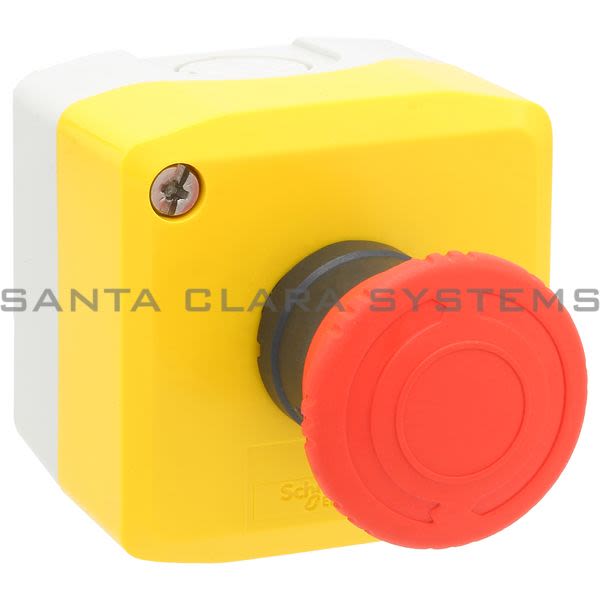

Telemecanique XALK174 yellow station - 1 red mushroom head pushbutton Ø40 turn to release 1NC Product Image

XALK174

Telemecanique - yellow station - 1 red mushroom head pushbutton Ø40 turn to release 1NC

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: yellow station - 1 red mushroom head pushbutton Ø40 turn to release 1NC
Range of product: Harmony XALK
IP degree of protection: IP69, IP67, IP66 conforming to IEC 60529, IP69K
Standards: EN/IEC 60947-1, UL 508, EN/IEC 60947-5-5, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C 4520
Device short name: XALK
Protective treatment: TH
Overvoltage category: Class II conforming to IEC 60536
Material: Polycarbonate
Assembly style: For customer assembly
Product or component type: Empty control station
Number of horizontal rows: 1
Ambient air temperature for storage: -40...158 F (-40...70 C)
Number of vertical rows: 1
Ambient air temperature for operation: -40...158 F (-40...70 C)

Product destination: For XB5 22 mm control and signaling units
Resistance to high pressure washer: 1015.26 psi (7000000 Pa) at 131 F (55 C), distance: 0.1 m
Control station application: Emergency switching off function, Emergency stop function
Mounting of block: Rear mounting, Front mounting
NEMA degree of protection: NEMA 13, NEMA 4X
Number of cut-out: 1 cut-out
Electrical composition code: SF1, MF1, MR1, SR1
IK degree of protection: IK03 conforming to EN 50102
Color of base of enclosure: Light grey RAL 7035
Main group: 1 cut-out
Color of cover: Yellow RAL 1021
Group of product: UL-CSA yellow
Product certifications: CSA, UL
Cable entry: 1 knock-out for cable entry, clamping capacity: <= 0.55 in (14 mm), 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: <= 0.47 in (12 mm)
