XALD03H7

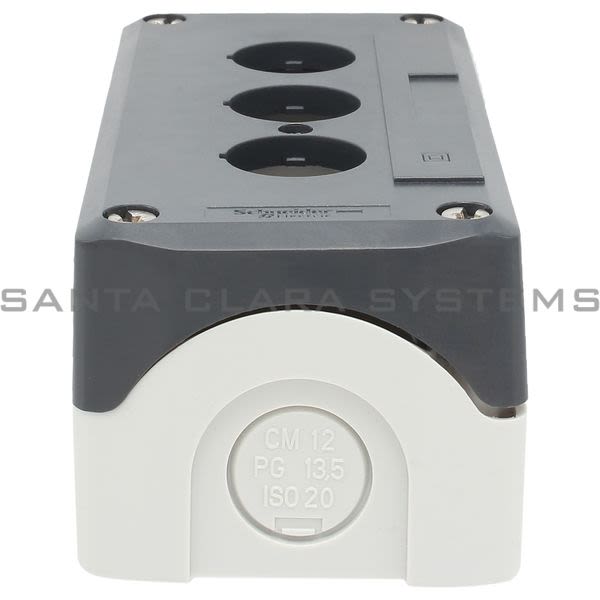

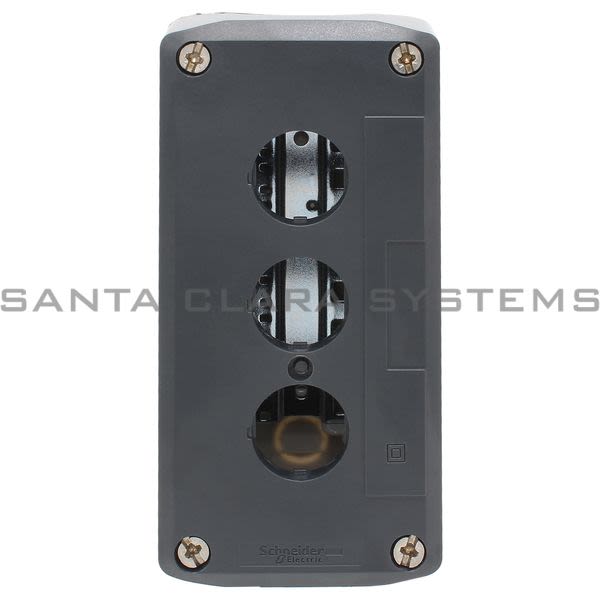

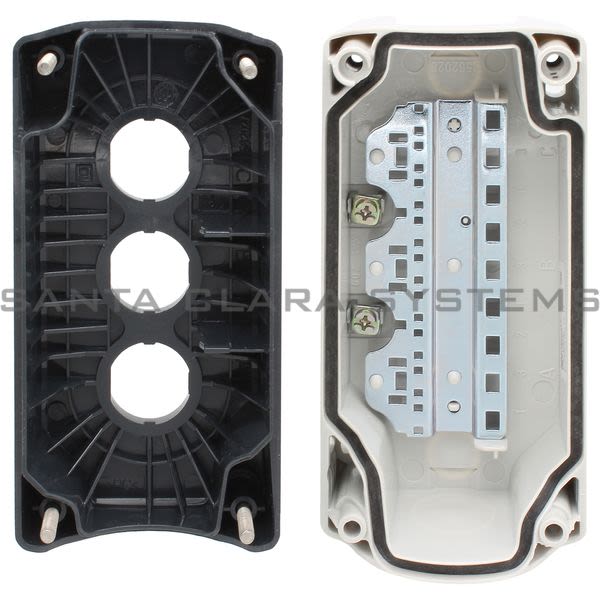

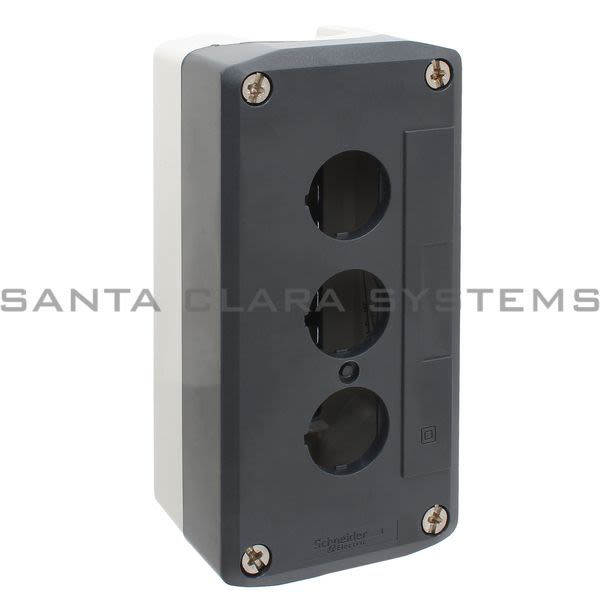

Telemecanique - dark grey empty enclosure lid with light grey base - 3 cut-outs-UL/CSA certified

Current response time:

11 Minutes 50 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: dark grey empty enclosure lid with light grey base - 3 cut-outs-UL/CSA certified
Product weight: 0.52 lb(US) (0.238 kg)
Range of product: Harmony XALD
IP degree of protection: IP69, IP67, IP66 conforming to IEC 60529, IP69K
Standards: EN/IEC 60947-5-5, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508, JIS C 4520, EN/IEC 60947-5-4
Device short name: XALD
Protective treatment: TH
Overvoltage category: Class II conforming to IEC 60536
Material: Polycarbonate
Assembly style: For customer assembly
Product or component type: Empty control station
Number of horizontal rows: 1
Ambient air temperature for storage: -40...158 F (-40...70 C)
Number of vertical rows: 3

Ambient air temperature for operation: -40...158 F (-40...70 C)
Product destination: For XB5 22 mm control and signaling units
Number of cut-out: 3 cut-outs
Resistance to high pressure washer: 1015.26 psi (7000000 Pa) at 131 F (55 C), distance: 0.1 m
NEMA degree of protection: NEMA 13, NEMA 4X
Color of base of enclosure: Light grey RAL 7035
Mounting of block: Front mounting, Rear mounting
IK degree of protection: IK03 conforming to EN 50102
Color of cover: Dark grey RAL 7016
Electrical composition code: SF2, SR2, MF2, MF1, SR1, PF2, SF1, PR1, MR1, PF1
Main group: 3 cut-outs
Product certifications: CSA, UL
Cable entry: 2 knock-outs for cable entry, clamping capacity: <= 0.55 in (14 mm), 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: <= 0.47 in (12 mm)
Group of product: UL-CSA grey
