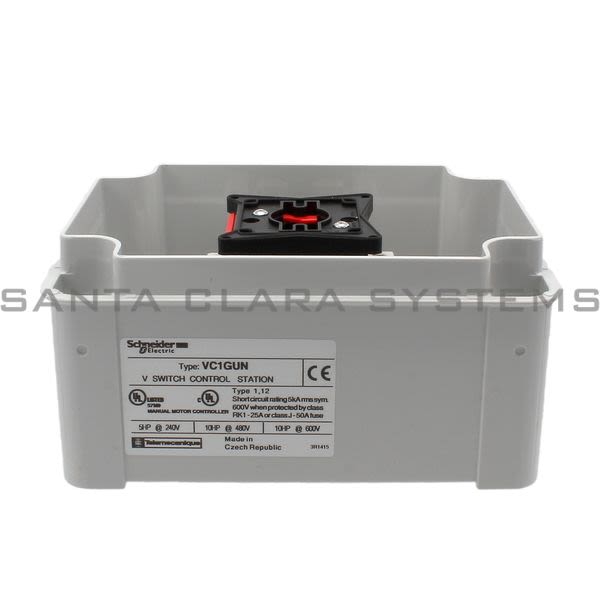

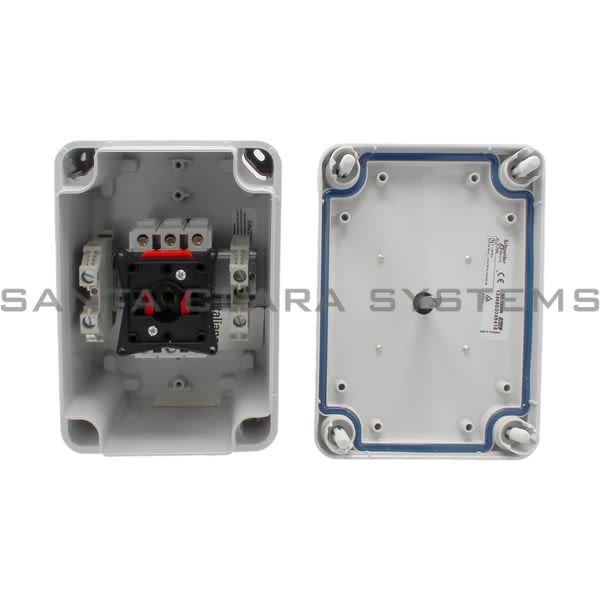

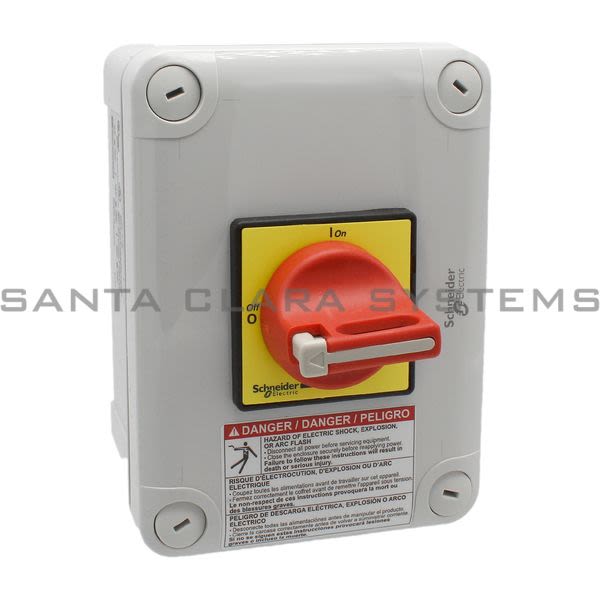

VC1GUN

Telemecanique - TeSys VARIO - enclosed emergency stop switch disconnector - 140 A

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys VARIO - enclosed emergency stop switch disconnector - 140 A
Product weight: 0.44 lb(US) (0.2 kg)
IP degree of protection: IP20 conforming to IEC 60529
Standards: IEC 60204, UL 508, CSA C22.2 No 14, IEC 60947-4-1
Device short name: VC-GUN
Width: 2.17 in (55 mm)
Height: 2.91 in (74 mm)
Depth: 2.36 in (60 mm)
Protective treatment: TC
[Uimp] rated impulse withstand voltage: 8 kV
Mechanical durability: 100000 cycles
Tightening torque: Power circuit: 18.58 lbf.in (2.1 N.m) - on screw clamp terminals
Connections - terminals: Power circuit : screw clamp terminals cable 10 mm - cable stiffness: solid - with cable end cable end, Power circuit : screw clamp terminals cable 6 mm - cable stiffness: flexible -
Range: TeSys
System Voltage: 690 V AC/DC 50/60 Hz
Product name: TeSys VARIO
Electrical durability: 30000 cycles DC-1...5, 100000 cycles AC-21
[Ie] rated operational current: 21.8 A AC-23A 400 V
Poles description: 3P
Control type: Rotary handle
Breaking capacity: 250 A at 400 V (AC-21A), 250 A at 400 V (AC-22A), 250 A at 400 V (AC-23A)
Handle color: Red

Product or component type: Emergency stop switch disconnector
Performance level: High performance
Handle colour: Red
Handle front plate colour: Yellow
Rotary handle padlocking: 1 to 3 padlocks with 0.16...0.31 in (4...8 mm)
Marking: 0 - 1
[Ithe] conventional enclosed thermal current: 32 A IEC 600 V, 20 A UL 600 V
NEMA degree of protection: NEMA 1, NEMA 12
Mechanical robustness: Vibrations 10...150 Hz 1 gn IEC 60068-2-6, Shocks 11 ms 30 Gn IEC 60068-2-27
rated operational power in W: 7.5 kW at 400 V AC-3, 11 kWat 400 V AC-23
Ambient air temperature for operation: -4...122 F (-20...50 C)
Intermittent duty class: 30
Making capacity: 320 A at 400 V AC-21A, 320 A at 400 V AC-22A, 320 A at 400 V AC-23A
Handle front plate color: Yellow
[Icm] rated short-circuit making capacity: 1 kA at 400 V at Ipeak
Rated power in hp: 5 hp UL 240 V, 10 hp UL 480 V, 10 hp UL 600 V
[Icw] rated short-time withstand current: 384 A at 400 V during 1 s
Rated conditional short-circuit current: 10 kA at 400 V - associated fuse 35 A aM, 10 kA at 400 V - associated fuse 35 A gG
Environmental characteristic: Standard environment
Suitability for isolation: Yes
Fire resistance: 1760 F (960 C) conforming to IEC 60595-2-1
Base dimension: 60 x 60 mm
