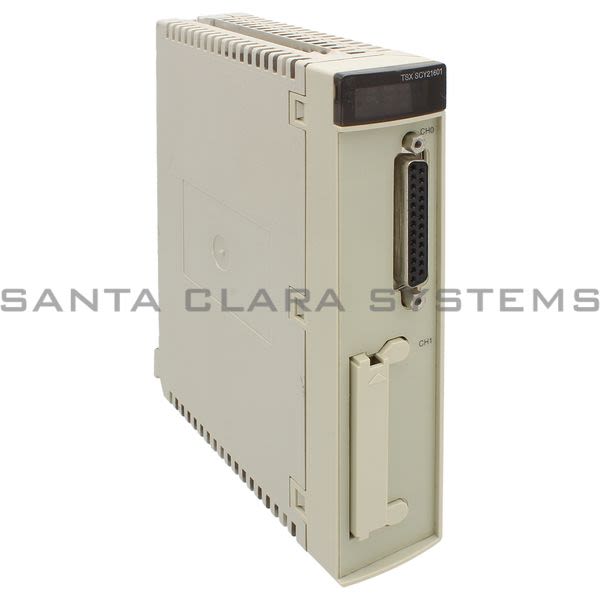

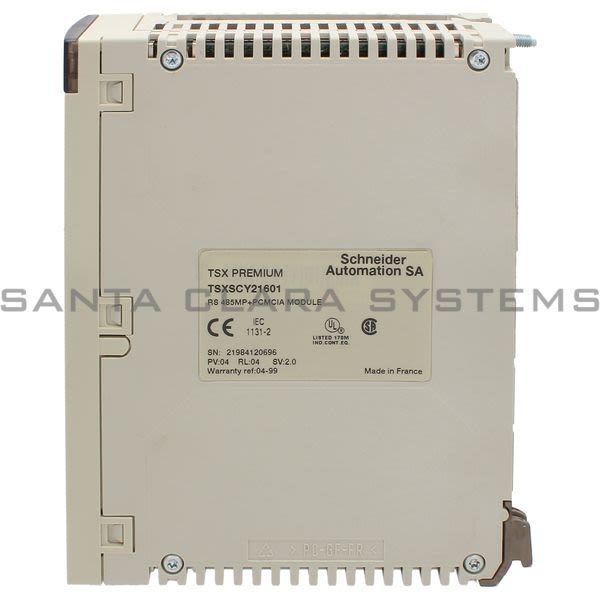

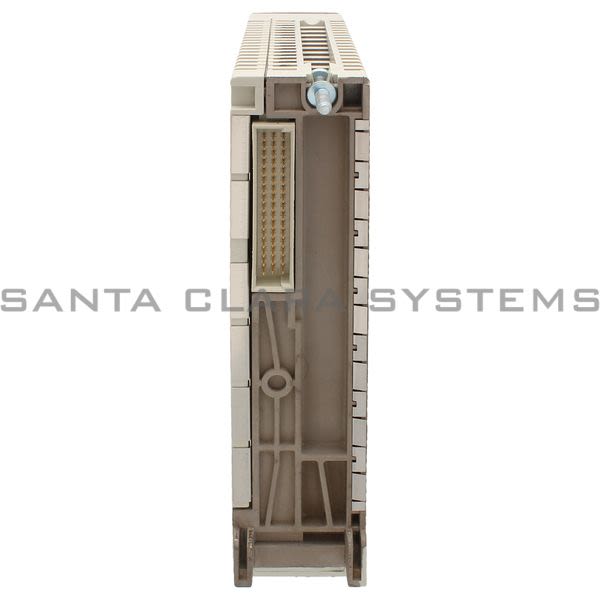

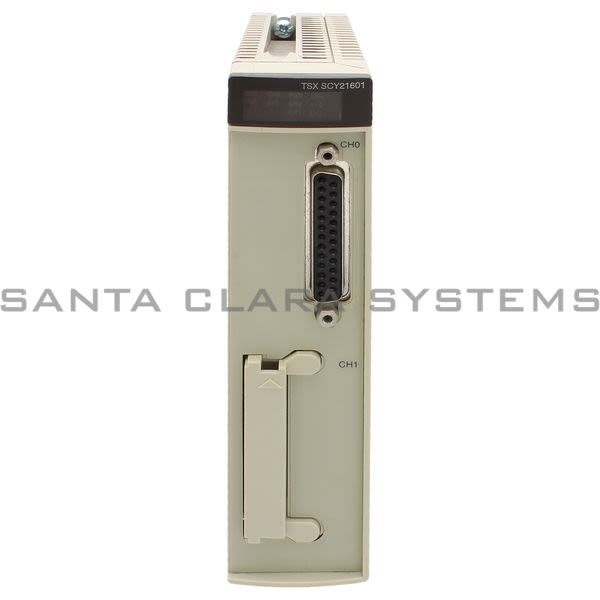

TSXSCY21601

Telemecanique - RS485+PCMCIA communication module - 2 twisted shielded pairs cable - 28 devices

Current response time:

By 5AM PT on Thursday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: RS485+PCMCIA communication module - 2 twisted shielded pairs cable - 28 devices
Product weight: 0.79 lb(US) (0.36 kg)
Range of product: Modicon Premium Automation platform
Operating altitude: <= 6561.68 ft. (2000 m)
Relative humidity: 5...95 % without condensation
Product compatibility: Atrium, Premium
Ambient air temperature for operation: 32...140 F (0...60 C)
Product or component type: Communication module
Method of access: Master/slave type
Ambient air temperature for storage: -13...158 F (-25...70 C)
Software designation: Unity Pro
Integrated connection type: 1 serial link 1 SUB-D 25, 1 slot for PCMCIA type III card
Structure type: Heterogeneous industrial bus
Communication port protocol: Multiprotocol
Communication port support: RS485 isolated

Mode of transmission: Asynchronous in baseband
Transmission frame: RTU/ASCII
Transmission rate: 1.2...19.2 kbit/s
Transmission support medium: 2 twisted shielded pairs cable
Number of devices: 28
Number of addresses: 0...97
Bus length: 0...1300 m Modbus
Tap links length: 49.21 ft. (15 m)
Requests: 120 words per request, 1920 bits per request
Control parameter: One CRC 16 on each frame
Monitoring function: Event counters, Diagnostic counters
Modbus functions' available: Event connection Modbus master 0C, Event connection Modbus slave 0C, Event counter Modbus master 0B, Event counter Modbus slave 0B, Identification Modbus slave 11, Slave identification Modbus master 11, Write n output bits Modbus slave 0F, Write n output words Modbus slave 10, Diagnostic Modbus master 08, Diagnostic Modbus slave 08, Exceptional read status Modbus master 07, Exceptional read status Modbus slave 07, Read input words Modbus master 04, Read n input words Modbus slave 04, Write 1 bits or n bits Modbus master 05, Write 1 input word Modbus slave 06, Write 1 output bit Modbus slave 05, Write 1 word or n word Modbus master 06
Local signaling: 1 LED communication (CH0), 1 LED internal fault, module failure (ERR), 1 LED module operating (RUN)
Current consumption: 350 mA 5 V DC
Module format: Standard
