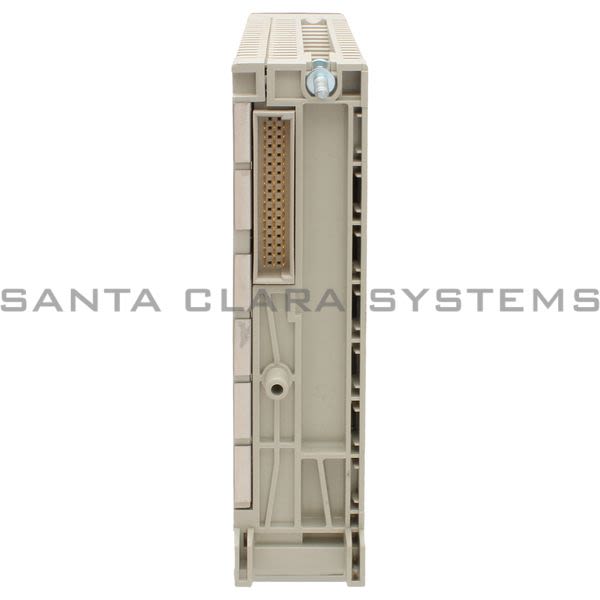

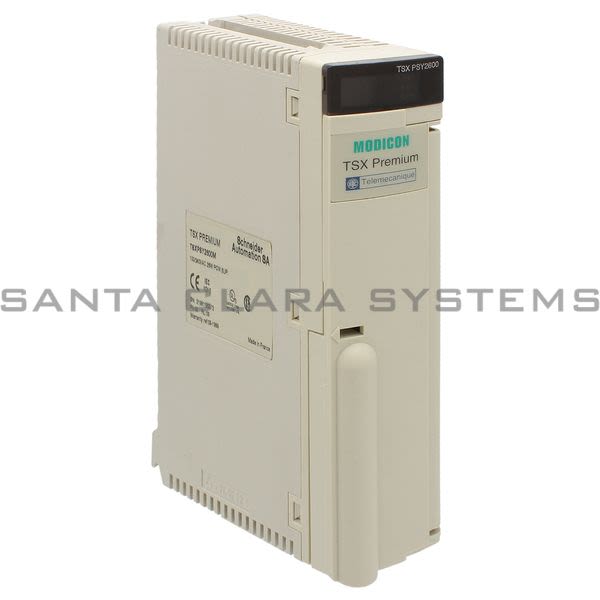

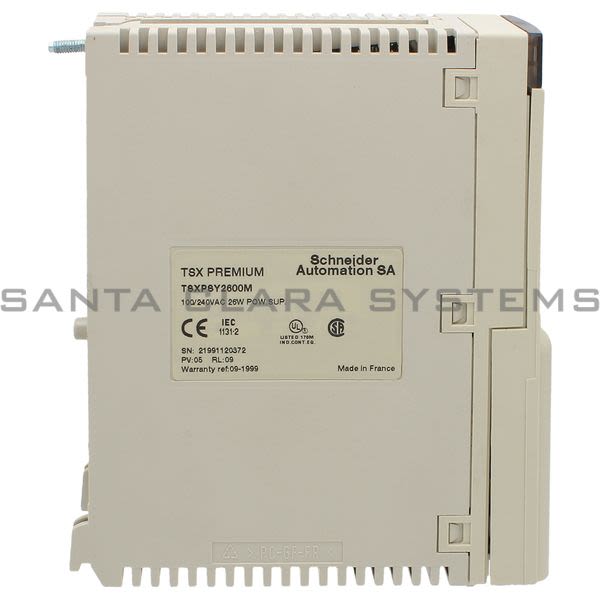

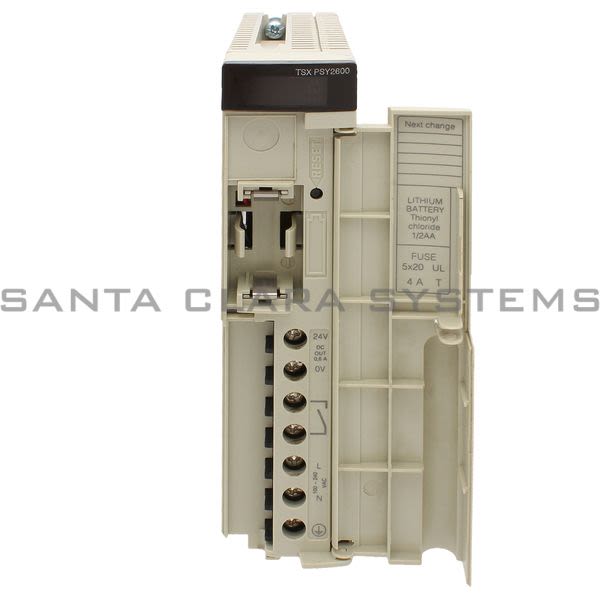

TSXPSY2600M

Telemecanique - power supply module - 100..240 V AC - 300/500 mA - IP20

Current response time:

17 Minutes 52 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: power supply module - 100..240 V AC - 300/500 mA - IP20
Product weight: 1.12 lb(US) (0.51 kg)
Range of product: Modicon Premium Automation platform
IP degree of protection: IP20
Standards: CSA C22.2 No 213 Class I Division 2 Group A, UL 508, 93/68/EEC, 73/23/EEC, 89/336/EEC, 92/31/EEC, CSA C22.2 No 142, IEC 61131-2, CSA C22.2 No 213 Class I Division 2 Group B, CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 213 Class I Division 2 Group C
Protective treatment: TC
Operating altitude: 0...6561.68 ft. (0...2000 m)
Insulation resistance: >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
Relative humidity: 10...95 % without condensation for operation, 5...95 % without condensation for storage
Protection type: Internal fuse 4 A 5 x 20 mm time-delayed primary circuit, Overload protection secondary circuit, Overvoltage protection secondary circuit, Short-circuit protection secondary circuit
Primary voltage: 100...240 V AC 85...264 V
Immunity to micro breaks: <= 10 ms
Product or component type: Power supply module
Network frequency: 50/60 Hz
Dielectric strength: 2000 V primary/earth, 2000 V primary/secondary

Network frequency limits: 47...63 Hz
Input current: 300 mA 240 V, 500 mA 100 V
Product certifications: RINA, LR, DNV, BV, RMRS, GL, ABS
Inrush current: 37 A 100 V, 75 A 240 V
Ambient air temperature for operation: 32...140 F (0...60 C)
It on activation: 0.63 A.s 100 V, 2.6 A.s 240 V
Ambient air temperature for storage: -13...158 F (-25...70 C)
It on activation: 0.034 A.s 100 V, 0.067 A.s 240 V
Total useful secondary power: 26 W
Secondary power: 15 W 24 V DC, 25 W 5 V DC
Current at secondary voltage: 0.5 A 24 V DC sensor power supply, 0.6 A 24 V DC relay power supply, 5 A 5 V DC
Pollution degree: 2
Marking: CE
Local signaling: 1 LED green presence of sensor voltage (24V), 1 LED green presence of voltages (OK), 1 LED red battery fault (BAT)
Module format: Standard

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TSXPSY2600M . Santa Clara Systems carries 10,327 items from Telemecanique.
