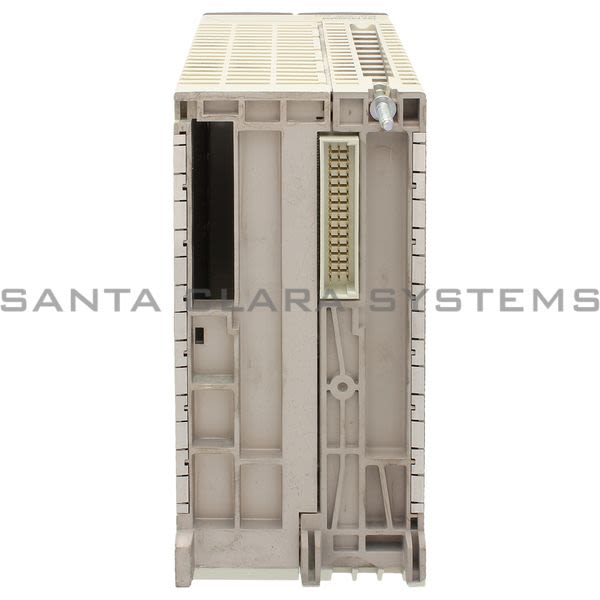

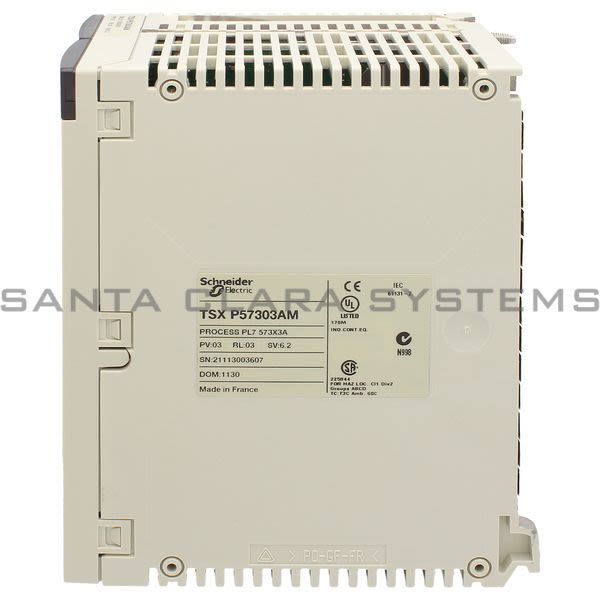

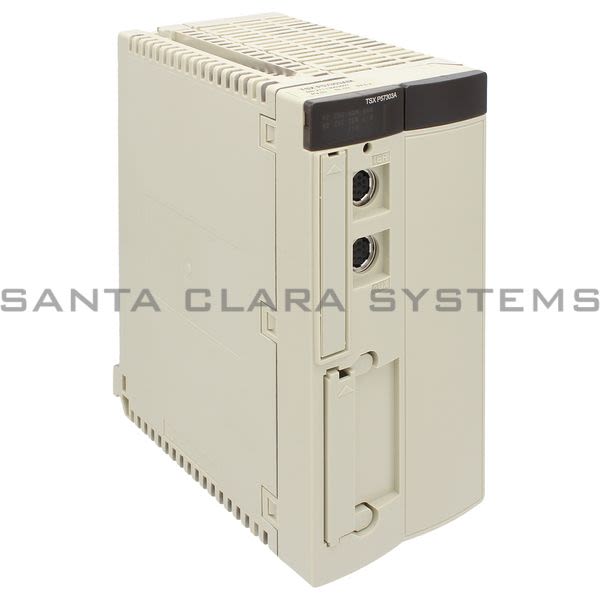

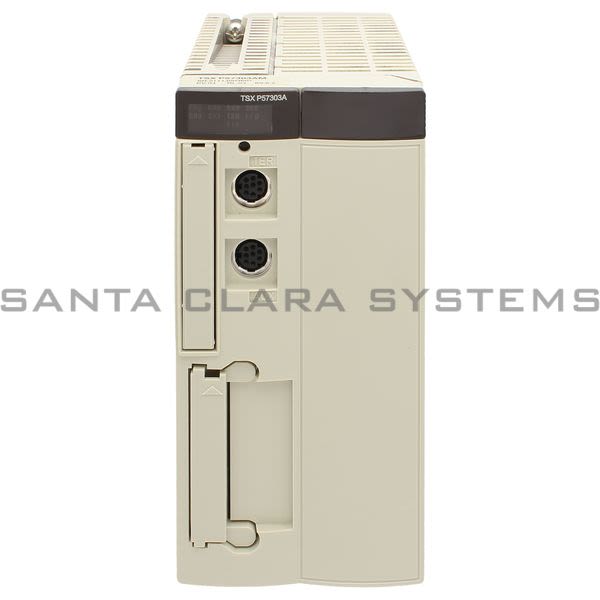

Telemecanique TSX P57303AM double-format PL7 processor - 1000 mA - IP20 Product Image

TSXP57303AM

Telemecanique - double-format PL7 processor - 1000 mA - IP20

Current response time:

17 Minutes 32 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: double-format PL7 processor - 1000 mA - IP20
Product weight: 1.15 lb(US) (0.52 kg)
Range of product: Modicon Premium Automation platform
IP degree of protection: IP20
Standards: CSA C22.2 No 213 Class I Division 2 Group C, 89/336/EEC, 92/31/EEC, CSA C22.2 No 213 Class I Division 2 Group A, IEC 61131-2, CSA C22.2 No 142, 73/23/EEC, 93/68/EEC, CSA C22.2 No 213 Class I Division 2 Group D, UL 508, CSA C22.2 No 213 Class I Division 2 Group B
Protective treatment: TC
Operating altitude: 0...6561.68 ft. (0...2000 m)
Relative humidity: 10...95 % without condensation for operation, 5...95 % without condensation for storage
Number of racks: 16 4/6/8 slots, 8 12 slots
Product or component type: Double-format PL7 processor
Number of slots: 128, 96, 64
Product certifications: LR, GL, DNV, BV, ABS, RINA, RMRS
Software designation: PL7 Junior/Pro
discrete I/O processor capacity: 1024 I/O
Ambient air temperature for operation: 32...140 F (0...60 C)
analogue I/O processor capacity: 128 I/O

Ambient air temperature for storage: -13...158 F (-25...70 C)
Number of application specific channel: <= 32
Number of process control channel: <= 15 up to 45 simple loops
Integrated connection type: Non isolated serial link 2 female mini DIN 19.2/115 kbit/s
Communication module processor capacity: 1 CANopen, 3 network module, 2 fieldbus modules (1 if CANopen used), 8 AS-Interface bus modules
Memory description: Internal RAM (with PCMCIA card) 80 Kwords data, Internal RAM (without PCMCIA card) 64 Kwords program and data, PCMCIA card 2688 Kwords additional data storage, PCMCIA card 384 Kwords program
Pollution degree: 2
Maximum size of object areas: 16384 %Mi located internal bits, 30.5 %MWi internal words located internal data, 32 %KWi constant words located internal data
Application structure: 1 fast task, 1 master task, 64 event tasks
Execution time per instruction: 0.12 s Boolean without PCMCIA card, 0.17 s Boolean with PCMCIA card, 0.17 s word or fixed-point arithmetic without PCMCIA card, 2.6 s floating points with PCMCIA card, 0.33 s word or fixed-point arithmetic with PCMCIA card, 2.5 s floating points without PCMCIA card
Number of instructions per ms: 3.08 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card, 4.49 Kinst/ms 100 % Boolean with PCMCIA card, 4.7 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card, 6.57 Kinst/ms 100 % Boolean without PCMCIA card
System overhead: 0.29 ms fast task, 1.15 ms master task
Marking: CE
Local signaling: 1 LED green processor running (RUN), 1 LED red I/O module or configuration fault (I/O), 1 LED red processor or system fault (ERR), 1 LED yellow activity on the terminal port (TER)
Current consumption: 1000 mA 5 V DC
Module format: Double
