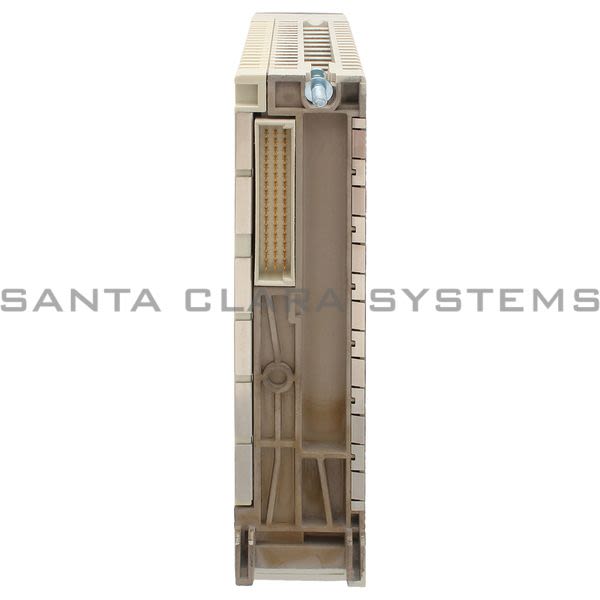

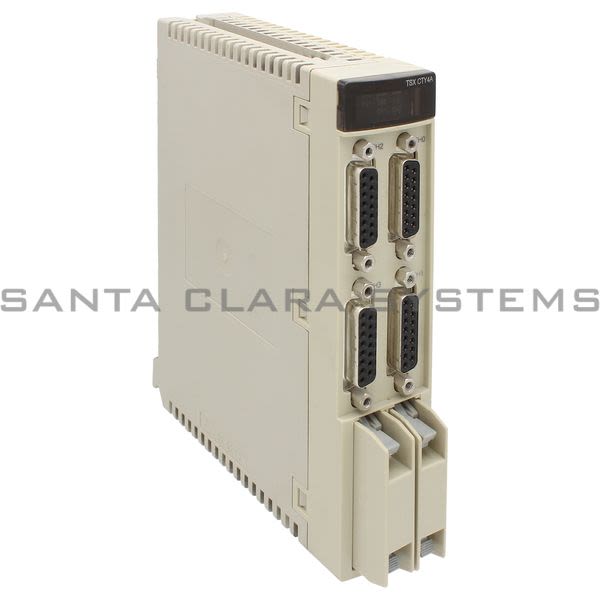

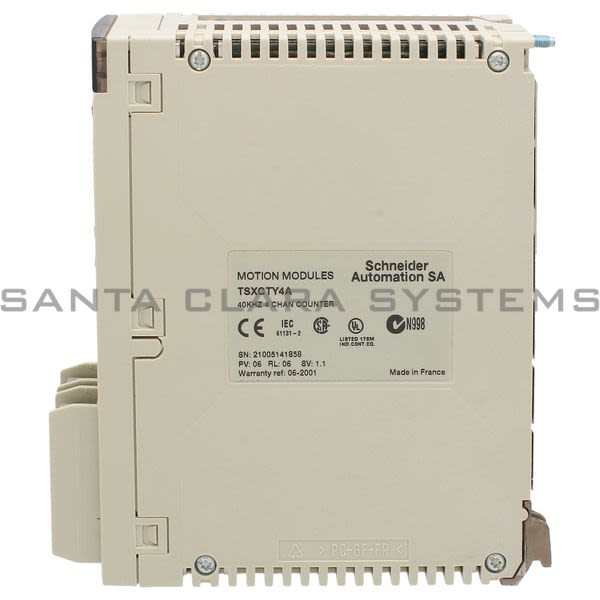

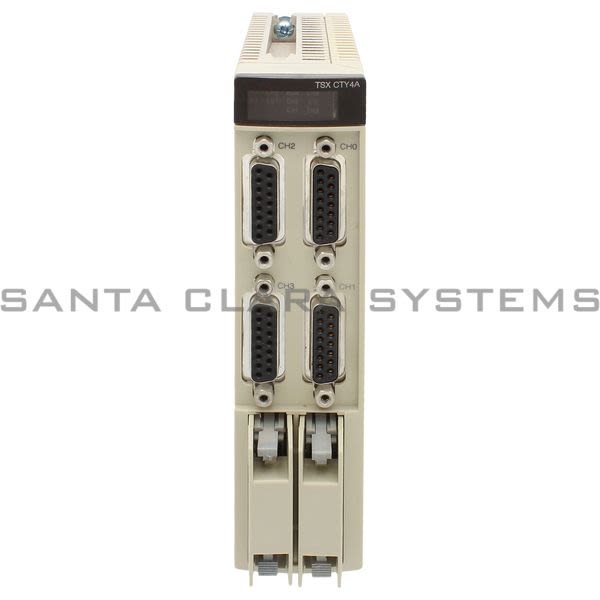

- Description: 4 channels counter modules - 40 kHz - 36 mA at 24 V DC, 330 mA at 5 V DC
- Product weight: 0.95 lb(US) (0.43 kg)
- Range of product: Modicon Premium Automation platform
- Protective treatment: TC
- Operating altitude: <= 6561.68 ft. (2000 m)
- Electrical connection: 2 connectors HE-10 20 pins, 4 connectors SUB-D 15
- Relative humidity: 5...95 % without condensation
- Response time: < 2.5 ms sensor voltage at loss of 24 V auxiliary input (preset, enable and read)
- Switching frequency: < 0.6/LI Hz on inductive load
- Input voltage: 24 V 18 mA 2/3-wire proximity sensors PNP/NPN, 24 V 7 mA auxiliary input (preset, enable and read), 5 V 18 mA encoder input
- Counting frequency: 40 kHz
- Product or component type: Counter modules
- power dissipation in W: 8...11.5 W
- Ambient air temperature for operation: 32...140 F (0...60 C)
- I/O modularity: 4 channels
- Cycle time: 10 ms
- Ambient air temperature for storage: -13...158 F (-25...70 C)
- Electrical circuit type: Auxiliary output conforming to EN/IEC 61131
- Discrete input logic: Current sink auxiliary input (preset, enable and read) conforming to IEC 1131 Type 2, Resistive 2/3-wire proximity sensors PNP/NPN conforming to IEC 1131 Type 2, Resistive encoder input
- Input logic: Positive
- Input compatibility: Incremental encoder 10...30 V totem pole, Incremental encoder 5 V DC RS422
- Input voltage limits: <= 5.5 V encoder input, 19...30 V 2/3-wire proximity sensors PNP/NPN, 19...30 V auxiliary input (preset, enable and read)
- Voltage state 1 guaranteed: >= 11 V 2/3-wire proximity sensors PNP/NPN, >= 11 V auxiliary input (preset, enable and read), >= 2.4 V encoder input
- Current state 1 guaranteed: >= 3.7 mA encoder input, >= 6 mA 2/3-wire proximity sensors PNP/NPN, >= 6 mA auxiliary input (preset, enable and read)
- Voltage state 0 guaranteed: <= 1.2 V encoder input, <= 5 V 2/3-wire proximity sensors PNP/NPN, <= 5 V auxiliary input (preset, enable and read)
- Current state 0 guaranteed: <= 1 mA encoder input, <= 2 mA 2/3-wire proximity sensors PNP/NPN, <= 2 mA auxiliary input (preset, enable and read)
- Input impedance: > 270 Ohm at U = 2.4 V encoder input, 1400 Ohm at Un 2/3-wire proximity sensors PNP/NPN, 3400 Ohm at Un auxiliary input (preset, enable and read), 400 Ohm at Un encoder input
- Output voltage: 24 V DC
- Nominal output current: 0.5 A
- Output voltage limits: 19...30 V
- Voltage drop: < 0.5 V at state 1
- Output compatibility: Positive logic DC inputs (resistance <= 15 kOhm) auxiliary output
- Leakage current: < 0.1 mA
- Output overload protection: Current limiter, Thermal tripping via program or automatically
- Output short-circuit protection: Current limiter, Thermal tripping via program or automatically
- Output overvoltage protection: Zener diode
- Reverse polarity protection: Reverse diode on supply
- Checks: Sensor power supply
- Current consumption: 330 mA 5 V DC, 36 mA 24 V DC
- Module format: Standard
- Local signaling: 4 LEDs green axis diagnostics available (CH.), 1 LED green module operating (RUN), 1 LED red external fault (I/O), 1 LED red internal fault, module failure (ERR)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TSXCTY4A . Santa Clara Systems carries 10,325 items from Telemecanique.
- 4 Channels Counter Modules - 40 Khz - 36 Ma At 24 V Dc
- 4 Channels Counter Modules - 40 Khz - 36 Ma At 24 V Dc
- 330 Ma At 5 V Dc
