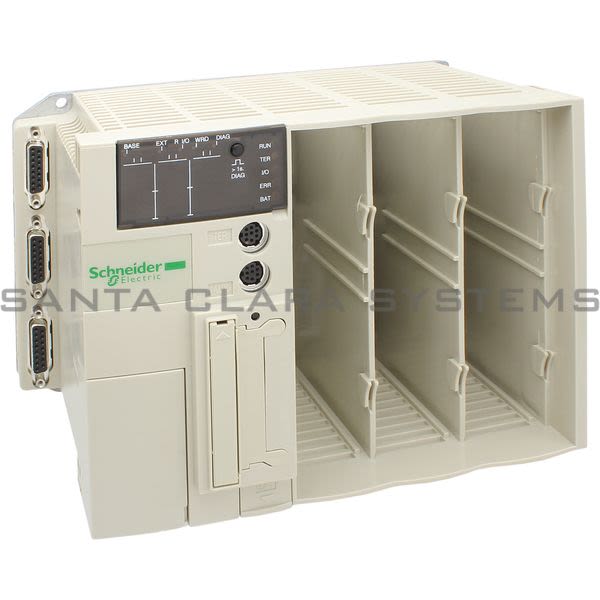

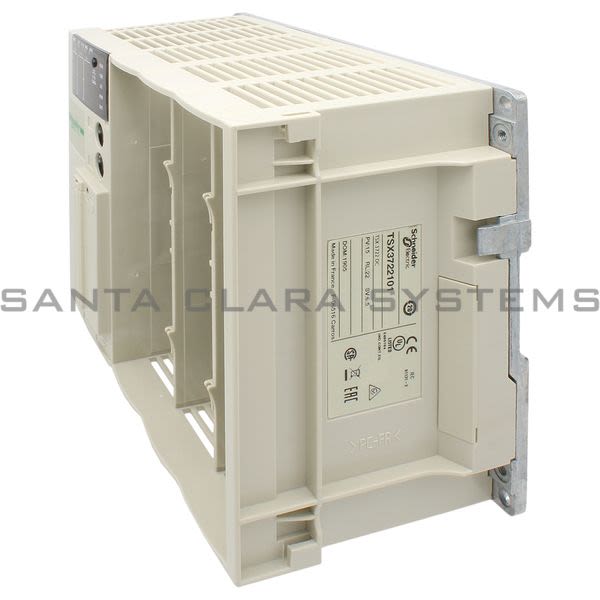

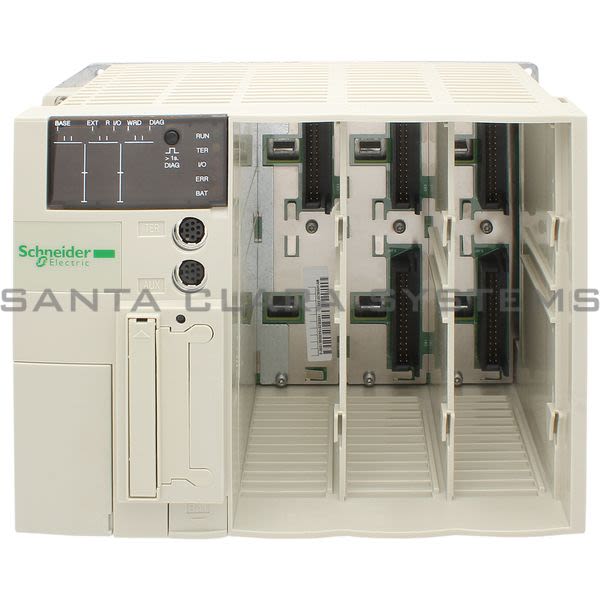

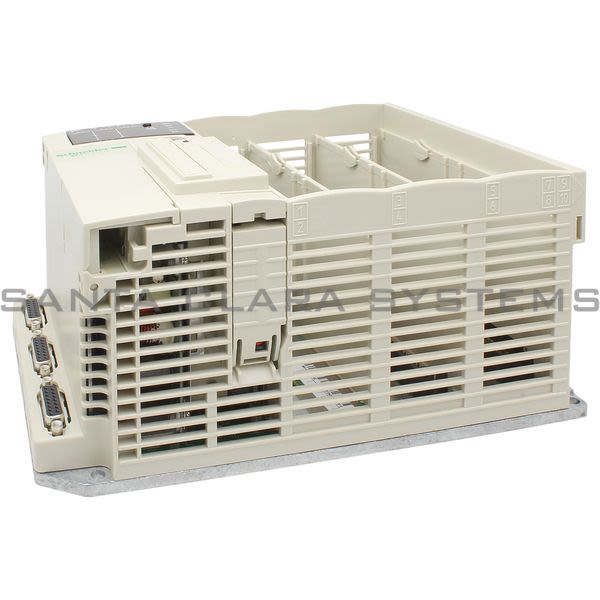

TSX3722101

Telemecanique - TSX Micro 37 21/22 PLC configurations

Current response time:

8 Minutes 17 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TSX Micro 37 21/22 PLC configurations
Product weight: 3.86 lb(US) (1.75 kg)
Range of product: Modicon TSX Micro automation platform
Width: 13.44 in (341.4 mm)
Height: 5.94 in (151 mm)
Depth: 5.98 in (152 mm)
Operating altitude: 0...6561.68 ft. (0...2000 m)
Relative humidity: 5...95 % without condensation for operation, 10...95 % without condensation for operation
Protection type: Overload protection, Short-circuit
Number of slots: 3
Ambient air temperature for operation: 32...140 F (0...60 C)
Product or component type: Modular base controller
Analogue input type: 0...10 V 8
Ambient air temperature for storage: -13...158 F (-25...70 C)
Primary voltage: 24 V 19.2...30 V DC

Analogue output type: 0...10 V 1
Input current: 2 mA < 60 A
Counting input type: Discrete incremental counter 1 10 Hz, Incremental 1 10 Hz
Immunity to micro breaks: < 10 ms
Integrated connection type: 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s, 1 Modbus Modbus RTU 19.2 kbit/s
Real-time clock: With
Memory description: Internal RAM 20 Kwords data, Internal RAM (with PCMCIA card) 128 Kwords program and data, Internal RAM 128 Kwords data storage, Flash 15 Kwords data
Maximum size of object areas: 1 %MWi internal words, 256 %Mi, 128 %KWi constant words
Execution time per instruction: 0.13 s Boolean without PCMCIA card, 4.5 s arithmetic REAL floating without PCMCIA card, 0.19 s Boolean with PCMCIA card, 4.5 s arithmetic REAL floating with PCMCIA card
Execution time for 1: 5.88 100 % Boolean without PCMCIA card, 4 100 % Boolean with PCMCIA card, 0.266 65 % Boolean and 35 % numerical with PCMCIA card
Application structure: 1 master task, 16 event tasks, 1 fast task
System overhead: 2.3 ms master task
Total useful secondary power: 16 W
Electromagnetic compatibility: Electrostatic discharge IEC 1000-4-2 level 3, Electromagnetic field immunity test IEC 1000-4-3 level 3, Resistance to fast transient IEC 1000-4-4 level 3, Immunity to impulse waves IEC 1000-4-5, Damped oscillatory wave IEC 1000-4-12, Immunity to electromagnetic interference IEC 61131-2
