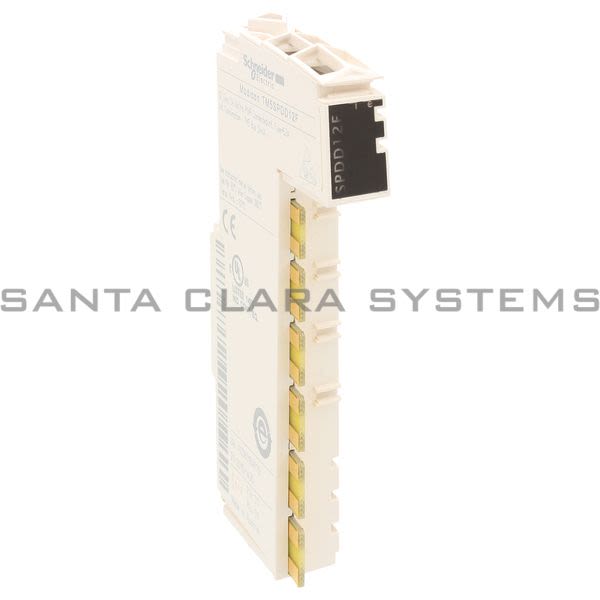

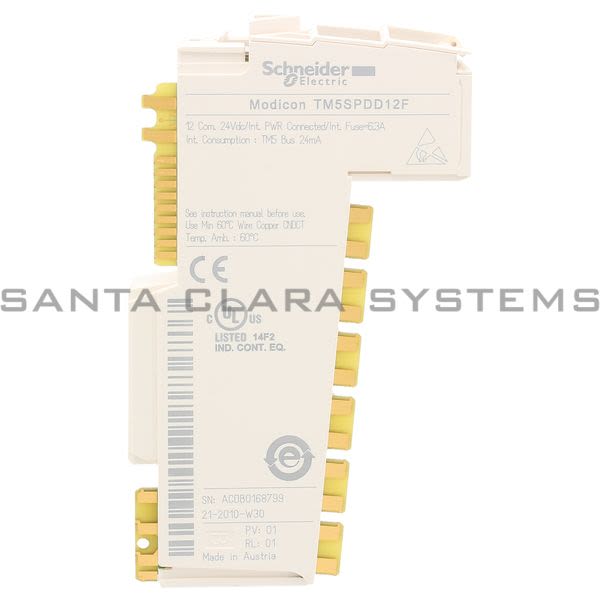

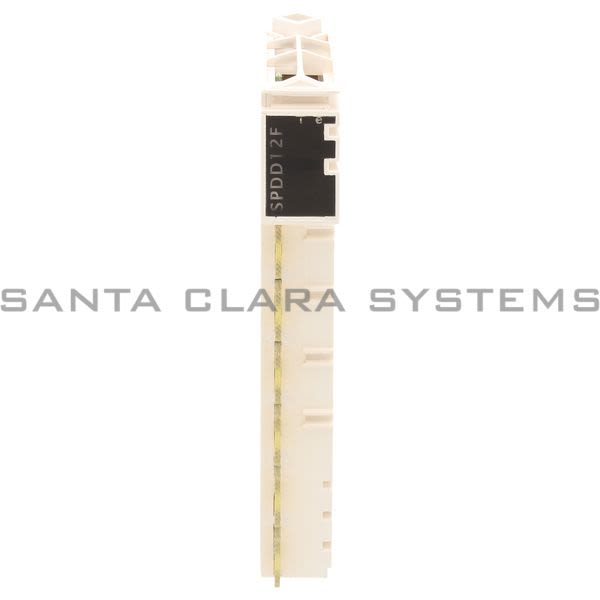

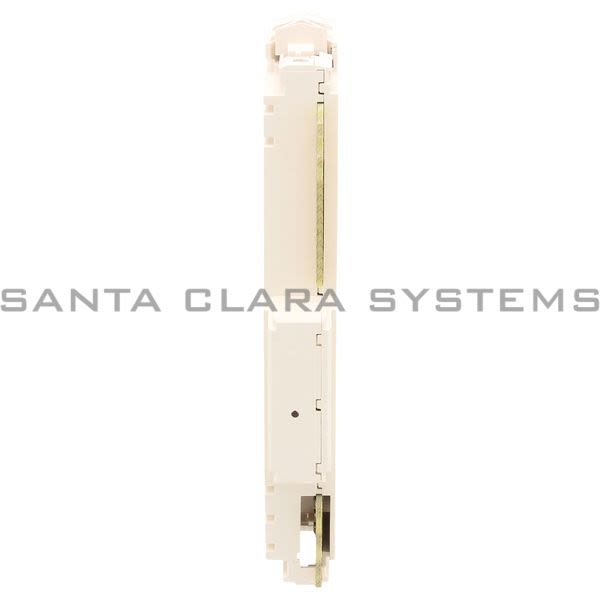

TM5SPDD12F

Telemecanique - common distribution module - 12 x 0 V DC

Current response time:

By 5AM PT on Friday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: common distribution module - 12 x 0 V DC
Product weight: 0.06 lb(US) (0.025 kg)
Range of product: Modicon TM5
IP degree of protection: IP20 conforming to IEC 61131-2
Standards: CSA C22.2 No 142, UL 508, CSA C22.2 No 213, IEC 61131-2
Operating altitude: 0...6561.68 ft. (0...2000 m)
Vibration resistance: 1 gn 8.4...150 Hz DIN rail, 3.5 mm 5...8.4 Hz DIN rail
Shock resistance: 15 gn 11 ms
[Us] rated supply voltage: 24 V
Relative humidity: 5...95 % without condensation
Range compatibility: Modicon M258, Modicon LMC058
Product or component type: Common distribution module
Product compatibility: Logic controller, Motion controller
Product certifications: C-Tick, CSA, GOST-R, cULus

Product specific application: Cabling various voltage to power 12 I/O in 0 V DC
Ambient air temperature for operation: 32...131 F (0...55 C) without derating factor horizontal installation, 32...140 F (0...60 C) with derating factor horizontal installation, 32...122 F (0...50 C) vertical installation
Network type: DC
Ambient air temperature for storage: -13...158 F (-25...70 C)
Short-circuit protection: 6.3 A with internal fuse
Marking: CE
Pollution degree: 2 conforming to IEC 60664
Storage altitude: 0...9842.52 ft. (0...3000 m)
Resistance to electrostatic discharge: 4 kV on contact conforming to EN/IEC 61000-4-2, 8 kV in air conforming to EN/IEC 61000-4-2
Resistance to electromagnetic fields: 0.91 V/yd (1 V/m) 2...2.7 GHz conforming to EN/IEC 61000-4-3, 9.14 V/yd (10 V/m) 80...2000 MHz conforming to EN/IEC 61000-4-3
Resistance to fast transients: 1 kV I/O conforming to EN/IEC 61000-4-4, 1 kV shielded cable conforming to EN/IEC 61000-4-4, 2 kV power lines conforming to EN/IEC 61000-4-4
Surge withstand: 0.5 kV differential mode conforming to EN/IEC 61000-4-5, 1 kV common mode conforming to EN/IEC 61000-4-5
Electromagnetic compatibility: EN/IEC 61000-4-6
Disturbance radiated/conducted: CISPR 11
