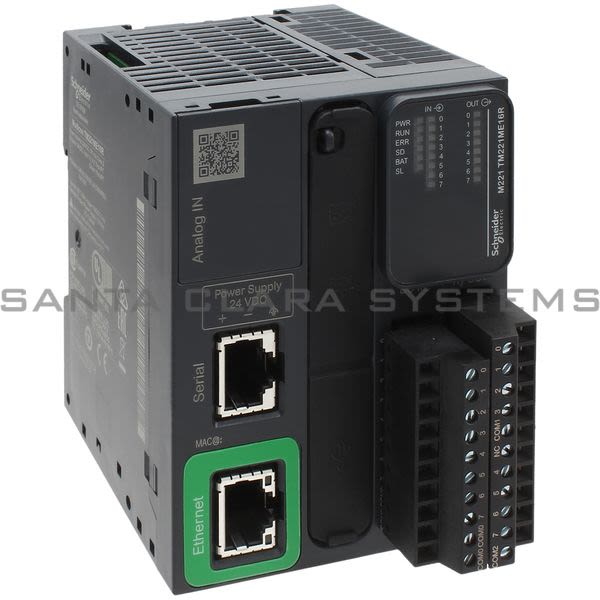

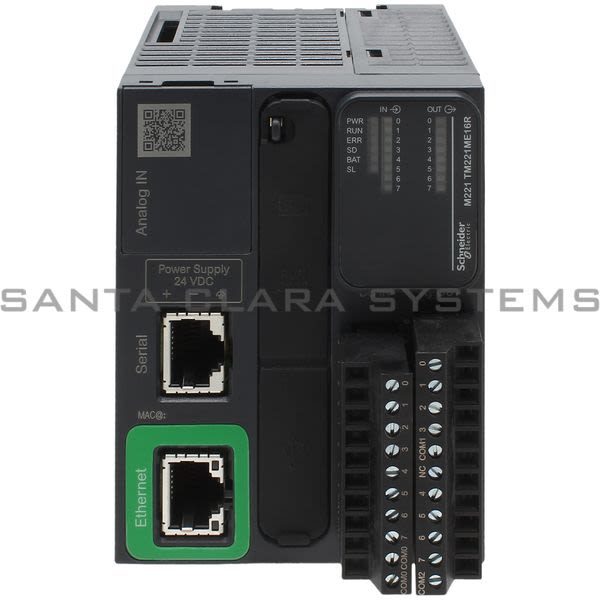

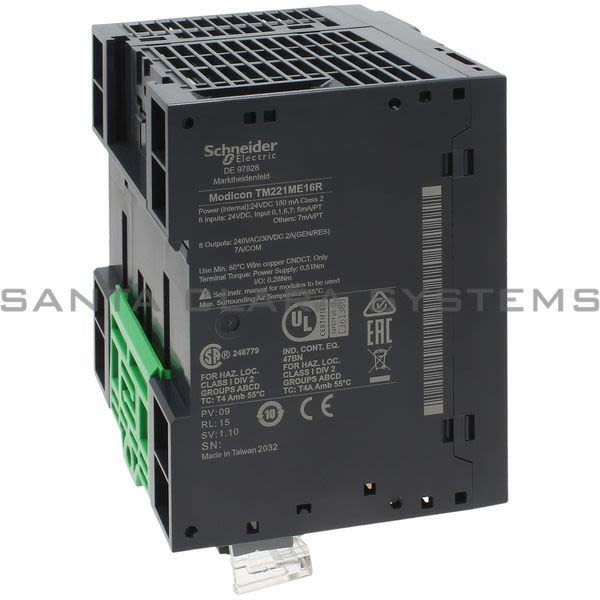

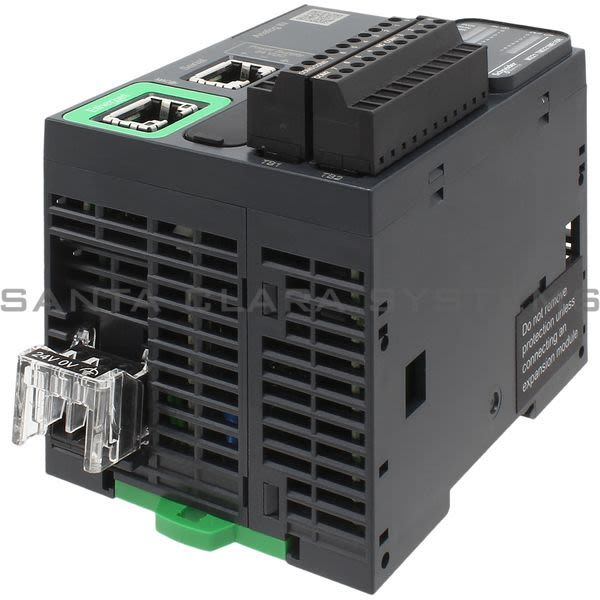

TM221ME16R

Telemecanique - controller M221 16 IO relay Ethernet

Current response time:

14 Minutes 29 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: controller M221 16 IO relay Ethernet
Product weight: 0.58 lb(US) (0.264 kg)
Range of product: Modicon M221
IP degree of protection: IP20 with protective cover in place
Standards: EN/IEC 61010-2-201, EN/IEC 61131-2, EN/IEC 60664-1
Width: 2.76 in (70 mm)
Height: 3.54 in (90 mm)
Depth: 2.76 in (70 mm)
Operating altitude: 0...6561.68 ft. (0...2000 m)
Mechanical durability: >= 20000000 cycles relay output
Mounting support: Top hat type TH35-15 rail conforming to IEC 60715, Top hat type TH35-7.5 rail conforming to IEC 60715, Plate or panel with fixing kit
Vibration resistance: 3.5 mm (vibration frequency: 5...8.4 Hz) on symmetrical rail, 1 gn (vibration frequency: 8.4...150 Hz) on symmetrical rail, 3.5 mm (vibration frequency: 5...8.4 Hz) on panel mounting, 1 gn (vibration frequency: 8.4...150 Hz) on panel mounting
Shock resistance: 98 m/s (test wave duration:11 ms)
Electrical durability: Inductive AC-15, (cos phi = 0.35) 240 V/ 120 VA: 100000 cycles, Resistive DC-12, 24 V/ 48 W: 100000 cycles, Resistive AC-12, 120 V/ 240 VA: 100000 cycles, Inductive AC-15, (cos phi = 0.35) 240 V/ 36 VA: 300000 cycles, Resistive AC-12, 120 V/ 80 VA: 300000 cycles, Inductive (L/R = 7 ms) DC-13, 24 V/ 24 W: 100000 cycles, Resistive DC-12, 24 V/ 16 W: 300000 cycles, Inductive (L/R = 7 ms) DC-13, 24 V/ 7.2 W: 300000 cycles, Inductive AC-14, (cos phi = 0.7) 240 V/ 240 VA: 100000 cycles, Inductive AC-15, (cos phi = 0.35) 120 V/ 60 VA: 100000 cycles, Inductive AC-14, (cos phi = 0.7) 240 V/ 72 VA: 300000 cycles, Inductive AC-15, (cos phi = 0.35) 120 V/ 18 VA: 300000 cycles, Resistive AC-12, 240 V/ 480 VA: 100000 cycles, Inductive AC-14, (cos phi = 0.7) 120 V/ 120 VA: 100000 cycles, Resistive AC-12, 240 V/ 160 VA: 300000 cycles, Inductive AC-14, (cos phi = 0.7) 120 V/ 36 VA: 300000 cycles
Electrical connection: Mini B USB 2.0 connector for a programming terminal, Removable screw terminal block, 10 terminal(s) for inputs, Removable screw terminal block, 11 terminal(s) for outputs, Terminal block, 3 terminal(s) for connecting the 24 V DC power supply, Connector, 4 terminal(s) for analogue inputs
[Us] rated supply voltage: 24 V DC
Relative humidity: 10...95 % without condensation in operation, 10...95 % without condensation in storage
Protection type: Without protection at 5 A
Response time: 35 s turn-off operation input; I2...I5 terminal, 5 s turn-on operation fast input; I0, I1, I6, I7 terminal, 35 s turn-on operation input; other terminals terminal, 5 s turn-off operation fast input; I0, I1, I6, I7 terminal, 100 s turn-off operation input; other terminals terminal, 5 s turn-on, turn-off operation output; Q0...Q1 terminal, 50 s turn-on, turn-off operation output; Q2...Q3 terminal, 300 s turn-on, turn-off operation output; other terminals terminal
Switching frequency: 20 switching operations/minute with maximum load
discrete I/O number: 16
Product or component type: Logic controller
number of I/O expansion module: <= 7 relay output
Product certifications: cULus, ABS, DNV-GL, LR, IACS E10, RCM, EAC, CSA
Supply voltage limits: 20.4...28.8 V
Environmental characteristic: Ordinary and hazardous location
Discrete input number: 8 discrete input conforming to IEC 61131-2 Type 1
Inrush current: <= 35 A
Resistance to electrostatic discharge: 4 kV on contact conforming to EN/IEC 61000-4-2, 8 kV in air conforming to EN/IEC 61000-4-2
Analogue input number: 2 at input range: 0...10 V
power consumption in W: <= 23.3 Wat 24 V with max number of I/O expansion module, <= 4.3 Wat 24 V without I/O expansion module
Resistance to electromagnetic fields: 9.14 V/yd (10 V/m) ( 80 MHz...1 GHz) conforming to EN/IEC 61000-4-3, 2.74 V/yd (3 V/m) ( 1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3, 1 V/m ( 2...2.7 GHz) conforming to EN/IEC 61000-4-3
Discrete output type: Relay normally open
Power supply output current: 0.52 A at 5 V expansion bus, 0.46 A at 24 V expansion bus
Resistance to magnetic fields: 30 A/m conforming to EN/IEC 61000-4-8
Discrete output number: 8 relay
Discrete input logic: Sink or source (positive/negative)
Resistance to fast transients: 2 kV power lines conforming to EN/IEC 61000-4-4, 2 kV relay output conforming to EN/IEC 61000-4-4, 1 kV Ethernet line conforming to EN/IEC 61000-4-4, 1 kV serial link conforming to EN/IEC 61000-4-4, 1 kV I/O conforming to EN/IEC 61000-4-4
Discrete output voltage: 5...125 V DC, 5...250 V AC
Discrete input voltage: 24 V
Surge withstand: 2 kV power lines (AC) in common mode conforming to EN/IEC 61000-4-5, 2 kV relay output in common mode conforming to EN/IEC 61000-4-5, 1 kV I/O in common mode conforming to EN/IEC 61000-4-5, 1 kV shielded cable in common mode conforming to EN/IEC 61000-4-5, 0.5 kV power lines (DC) in differential mode conforming to EN/IEC 61000-4-5, 1 kV power lines (AC) in differential mode conforming to EN/IEC 61000-4-5, 1 kV relay output in differential mode conforming to EN/IEC 61000-4-5, 0.5 kV power lines (DC) in common mode conforming to EN/IEC 61000-4-5
Discrete output current: 2:00 AM
Discrete input voltage type: DC
Resistance to conducted disturbances: 10 Vrms (0.15...80 MHz) conforming to EN/IEC 61000-4-6, 3 Vrms (0.1...80 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 10 Vrms (spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)) conforming to Marine specification (LR, ABS, DNV, GL)
Analogue input resolution: 10 bits

Electromagnetic emission: Conducted emissions conforming to EN/IEC 55011 power lines (AC), 0.15...0.5 MHz: 79 dB?V/m QP/66 dB?V/m AV, Conducted emissions conforming to EN/IEC 55011 power lines (AC), 0.5...300 MHz: 73 dB?V/m QP/60 dB?V/m AV, Conducted emissions conforming to EN/IEC 55011 power lines, 10...150 kHz: 120...69 dBV/m QP, Conducted emissions conforming to EN/IEC 55011 power lines, 150 kHz...1.5 MHz: 79...63 dB?V/m QP, Conducted emissions conforming to EN/IEC 55011 power lines, 1.5...30 MHz: 63 dB?V/m QP, Radiated emissions conforming to EN/IEC 55011 class A 10 m, 30...230 MHz: 40 dB?V/m QP, Radiated emissions conforming to EN/IEC 55011 class A 10 m, 200 MHz...1 GHz : 47 dB?V/m QP
LSB value: 10 mV
Immunity to micro breaks: 10 ms
Conversion time: 1 ms per channel + 1 controller cycle time analog input
Ambient air temperature for operation: 14...131 F (-10...55 C) horizontal installation, -10...35 C vertical installation
Permitted overload on inputs: +/- 30 V DC analog input with 5 min maximum, +/- 13 V DC analog input permanent
Ambient air temperature for storage: -13...158 F (-25...70 C)
Voltage state 1 guaranteed: >= 15 V input
Voltage state 0 guaranteed: <= 5 V input
Discrete input current: 7 mA discrete input, 5 mA fast input
Pollution degree: <= 2
Input impedance: 3.4 kOhm input, 4.9 kOhm fast input, 100 kOhm analog input
Storage altitude: 0...9842.52 ft. (0...3000 m)
Configurable filtering time: 0 ms input, 12 ms input, 3 ms input
Output voltage limits: 125 V DC, 277 V AC
Current per output common: 7:00 AM
Absolute accuracy error: +/- 1 % of full scale analog input
Minimum load: 1 mA at 5 V DC relay output
Reset time: 1 s
Memory capacity: 256 kB user application and data RAM with 10000 instructions, 256 kB internal variables RAM
Data backed up: 256 kB built-in flash memory backup of application and data
Data storage equipment: 2 GB SD card optional
Battery type: BR2032 lithium non-rechargeable, battery life: 4 yr
Backup time: 1 year at 77 F (25 C) by interruption of power supply
Execution time for 1: 0.3 ms event and periodic task, 0.7 ms other instruction
Execution time per instruction: 0.2 s Boolean
Exct time for event task: 60 s response time
Application structure: 8 interrupt tasks, 1 configurable freewheeling/cyclic master task, 1 cyclic auxiliary task
Maximum size of object areas: 512 %M memory bits, 255 %TM timers, 512 %KW constant words, 8000 %MW memory words, 255 %C counters
Real-time clock: With
Clock drift: <= 30 s/month at 77 F (25 C)
Regulation loop: Adjustable PID regulator up to 14 simultaneous loops
Function available: Frequency generator, PWM, PLS
Counting input number: 4 fast input (HSC mode) (counting frequency: 100 kHz), counting capacity: 32 bits
Control signal type: Single phase, A/B, Pulse/direction
Integrated connection type: USB port with connector mini B USB 2.0, Ethernet with connector RJ45, Non isolated serial link "serial 1" with connector RJ45 and interface RS232/RS485
Supply: Serial 1 serial link supply at 5 V 200 mA
Transmission rate: 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m - communication protocol: RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 9.84 ft. (3 m) - communication protocol: RS232, 480 Mbit/s - communication protocol: USB
Communication port protocol: USB port: USB protocol - SoMachine-Network, Non isolated serial link: Modbus protocol master/slave - RTU/ASCII or SoMachine-Network, : Ethernet protocol
port Ethernet: 10BASE-T/100BASE-TX 1 port with 328.08 ft. (100 m) copper cable
Communication service: Ethernet/IP adapter, Modbus TCP server, Modbus TCP client, Modbus TCP slave device, DHCP client
Local signaling: 1 LED green SD card access (SD), 1 LED red BAT, 1 LED per channel green I/O state, 1 LED green SL, Ethernet network activity green ACT, Ethernet network link yellow Link (Link Status), 1 LED red module error (ERR), 1 LED green PWR, 1 LED green RUN
Max cable distance between devices: Shielded cable: 10 m for fast input, Unshielded cable: 30 m for output, Unshielded cable: 30 m for digital input, Unshielded cable: 1 m for analog input, Shielded cable: 3 m for fast output
Insulation: 500 V AC between fast input and internal logic, Non-insulated between inputs, Non-insulated between analogue inputs, 500 V AC between output and internal logic, 500 V AC between input and internal logic, Non-insulated between analogue input and internal logic, 500 V AC between output groups
Marking: CE
