RXZE2M114M

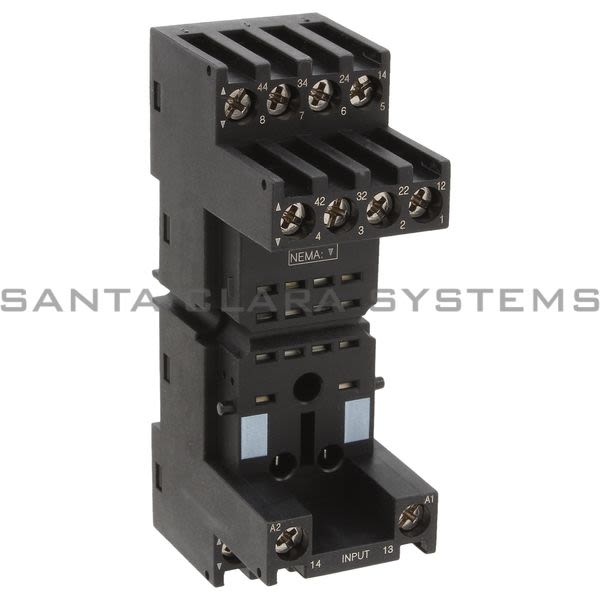

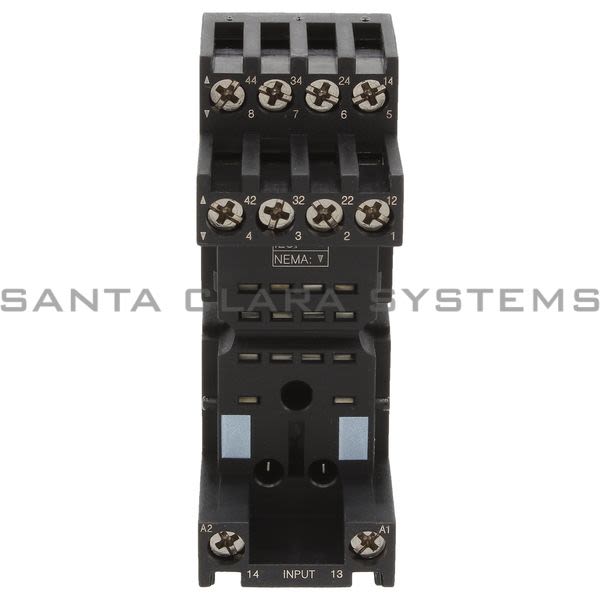

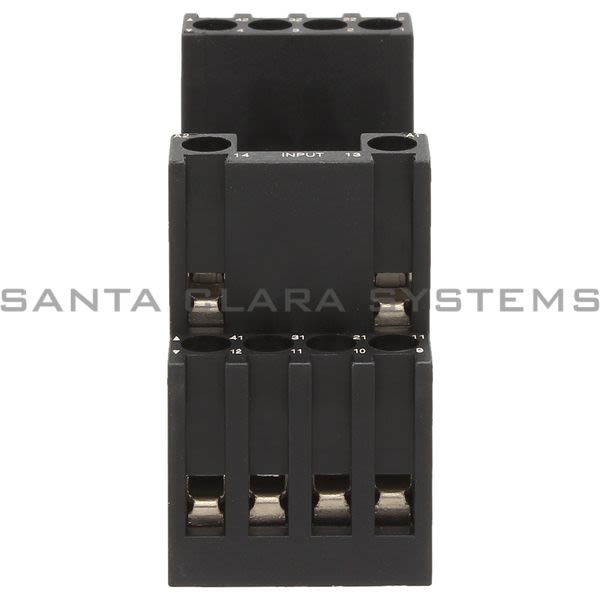

Telemecanique - socket RXZ - mixed contact - 10A - < 250V - connector - for relay RXM2.., RXM4..

Current response time:

14 Minutes 16 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: socket RXZ - mixed contact - 10A - < 250V - connector - for relay RXM2.., RXM4..
Product weight: 0.12 lb(US) (0.056 kg)
Range of product: Zelio Relay
IP degree of protection: IP20 conforming to EN/IEC 60529
Standards: IEC 61984
Device short name: RXZ
Width: 1.06 in (27 mm)
Tightening torque: <= 8.85 lbf.in (1 N.m) (M3 screw(s))
Connections - terminals: Connector, flexible cable with cable end 1 x 0.25...1 x 2.5 mm / AWG 22...AWG 14, Connector, flexible cable with cable end 2 x 0.25...2 x 1 mm / AWG 22...AWG 17, Connector, solid cable without cable end 1 x 0.5...1 x 2.5 mm / AWG 20...AWG 14, Connector, solid cable without cable end 2 x 0.5...2 x 1.5 mm / AWG 20...AWG 16
[Ith] conventional free air thermal current: 12 A, 6 A
System Voltage: < 250 V

Product or component type: Socket
Contact terminal arrangement: Mixed
Product certifications: Lloyd's, CSA, UL
Product compatibility: Plug-in relay RXM (2 C/O), Plug-in relay RXM (4 C/O)
Fixing mode: By screw panel, Clip-on 35 mm symmetrical DIN rail
Ambient air temperature for storage: -40...185 F (-40...85 C)
Shape of pin: Flat
Marking: CE
Ambient air temperature for operation: -40...131 F (-40...55 C)
Sale per indivisible quantity: 10
Dielectric strength: 2500 V

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on RXZE2M114M . Santa Clara Systems carries 10,327 items from Telemecanique.
